Gigabyte B365M D3V (rev. 1.0) [4/45] B365m d3v motherboard layout

- 4 -

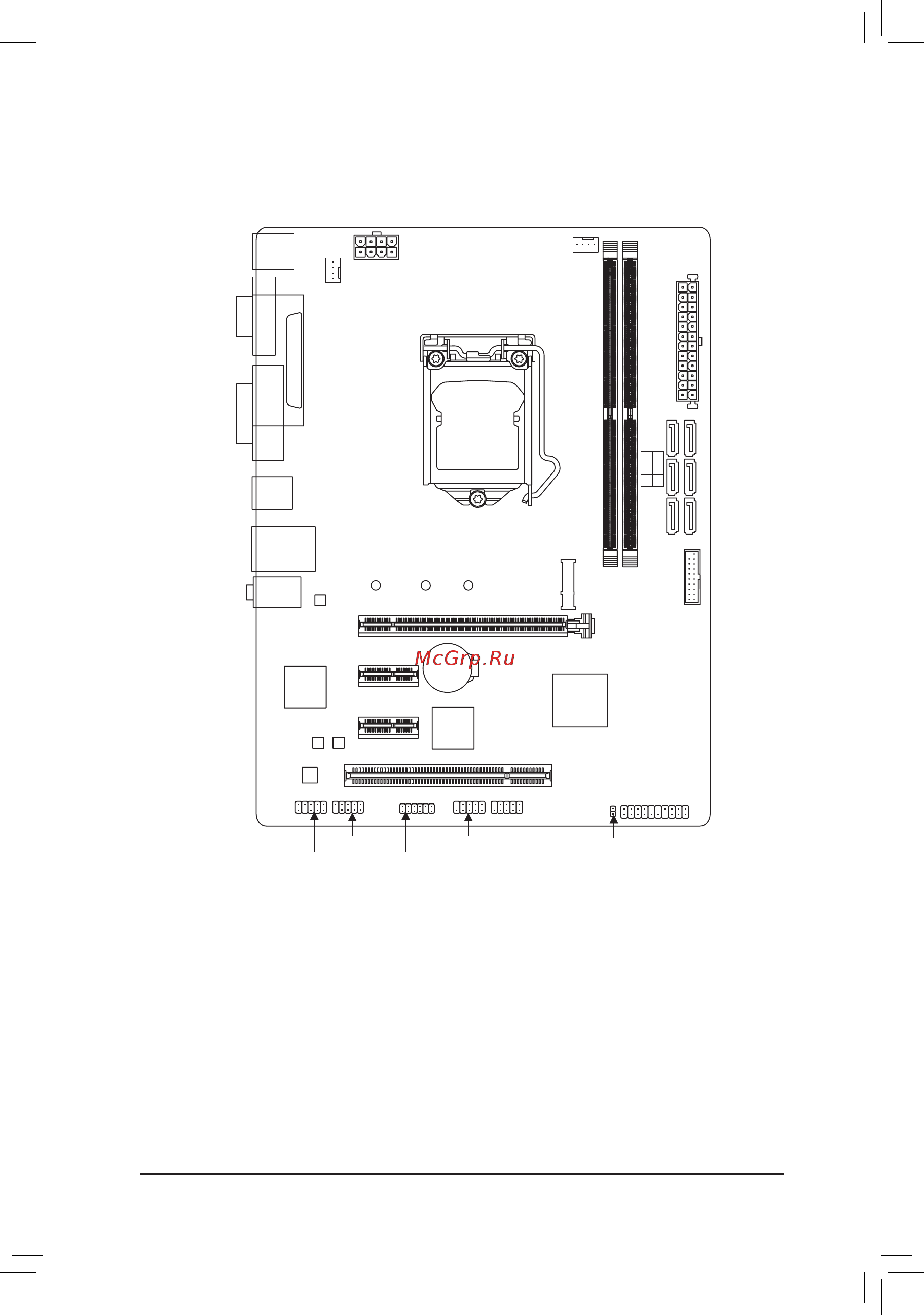

B365M D3V Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5 B365M D3V Motherboard

5 Motherboard driver disk 5 Two SATA cables

5 User's Manual 5 I/O Shield

KB_MS_USB

CPU_FAN

SYS_FAN

LGA1151

ATX

B365M D3V

F_AUDIO

AUDIO

BAT

ATX_12V_2X4

Intel

B365

CODEC

CLR_CMOS

M_BIOS

VGA

LPT

USB30_LAN

PCIEX16

PCIEX1_1

PCI

iTE

Super I/O

Realtek

GbE LAN

F_USB1

TPM

F_USB2

F_PANEL

SATA3

0 1 2

3 4 5

DVI

80 60

B_BIOS

COM

F_USB30

R_USB30

M2A

DDR4_2

DDR4_1

PCIEX1_2

PCIe to PCI
