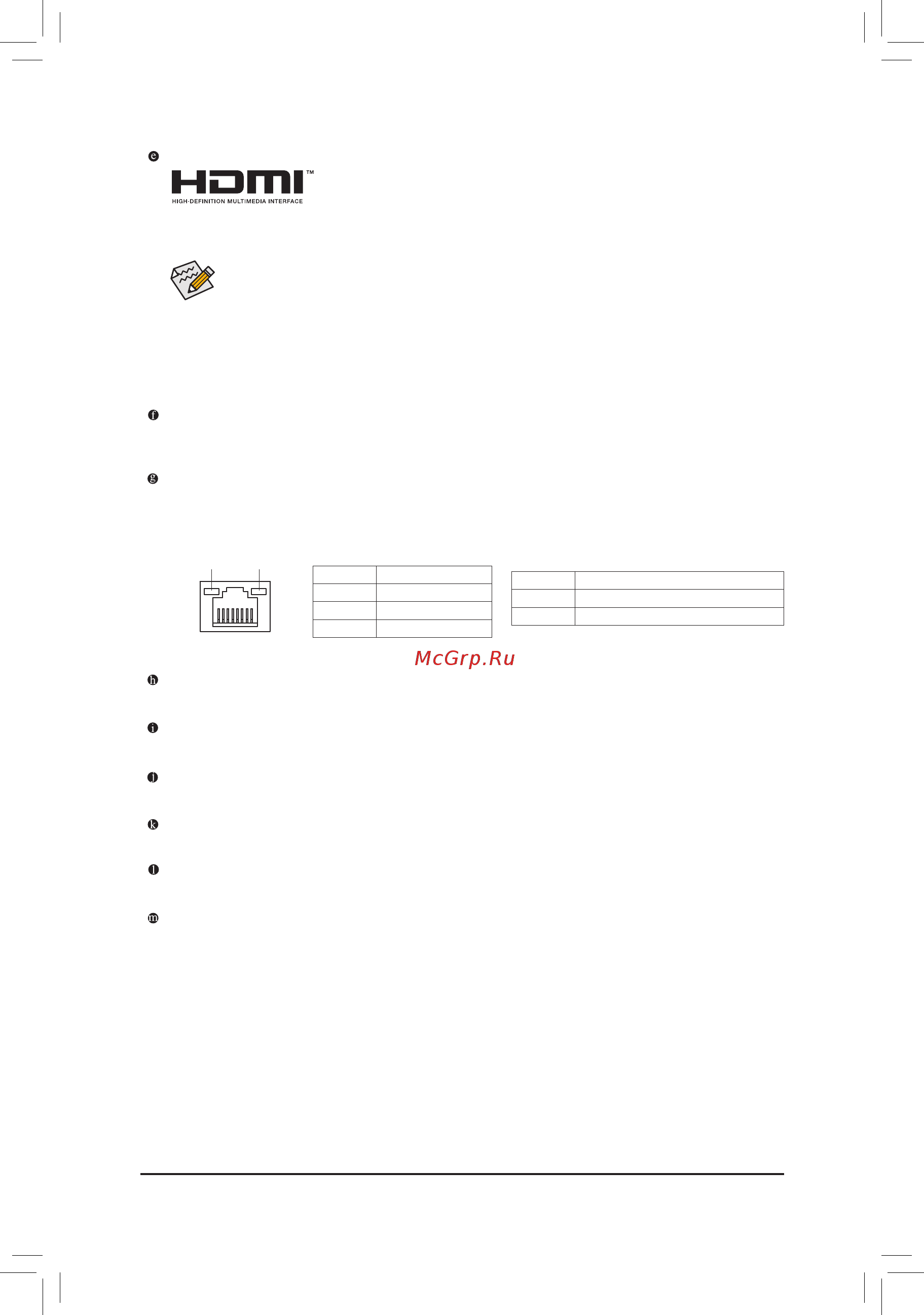

HDMI Port

The HDMI port supports HDCP 2.2 and Dolby TrueHD and DTS HD Master Audio

formats.Italsosupportsupto192KHz/16bit8-channelLPCMaudiooutput.You

can use this port to connect your HDMI-supported monitor. The maximum supported resolution is

4096x2160@30Hz,buttheactualresolutionssupportedaredependentonthemonitorbeingused.

USB 3.1 Gen 1 Port

TheUSB3.1Gen1portsupportstheUSB3.1Gen1specicationandiscompatibletotheUSB2.0

specication.UsethisportforUSBdevices.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

After installing the HDMI device, make sure to set the default sound playback device to HDMI.

(The item name may differ depending on your operating system.)

Center/Subwoofer Speaker Out (Orange)

Use this audio jack to connect center/subwoofer speakers.

Rear Speaker Out (Black)

Use this audio jack to connect rear speakers.

Side Speaker Out (Gray)

Use this audio jack to connect side speakers.

Line In (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out/Front Speaker Out (Green)

The line out jack.

Mic In (Pink)

The line out jack.

Triple-DisplayCongurationsfortheOnboardGraphics:

Triple-displaycongurationsaresupportedafteryouinstallmotherboarddriversinOS.Onlydual-display

congurationsaresupportedduringtheBIOSSetuporPOSTprocess.

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:

Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

- 11 -
