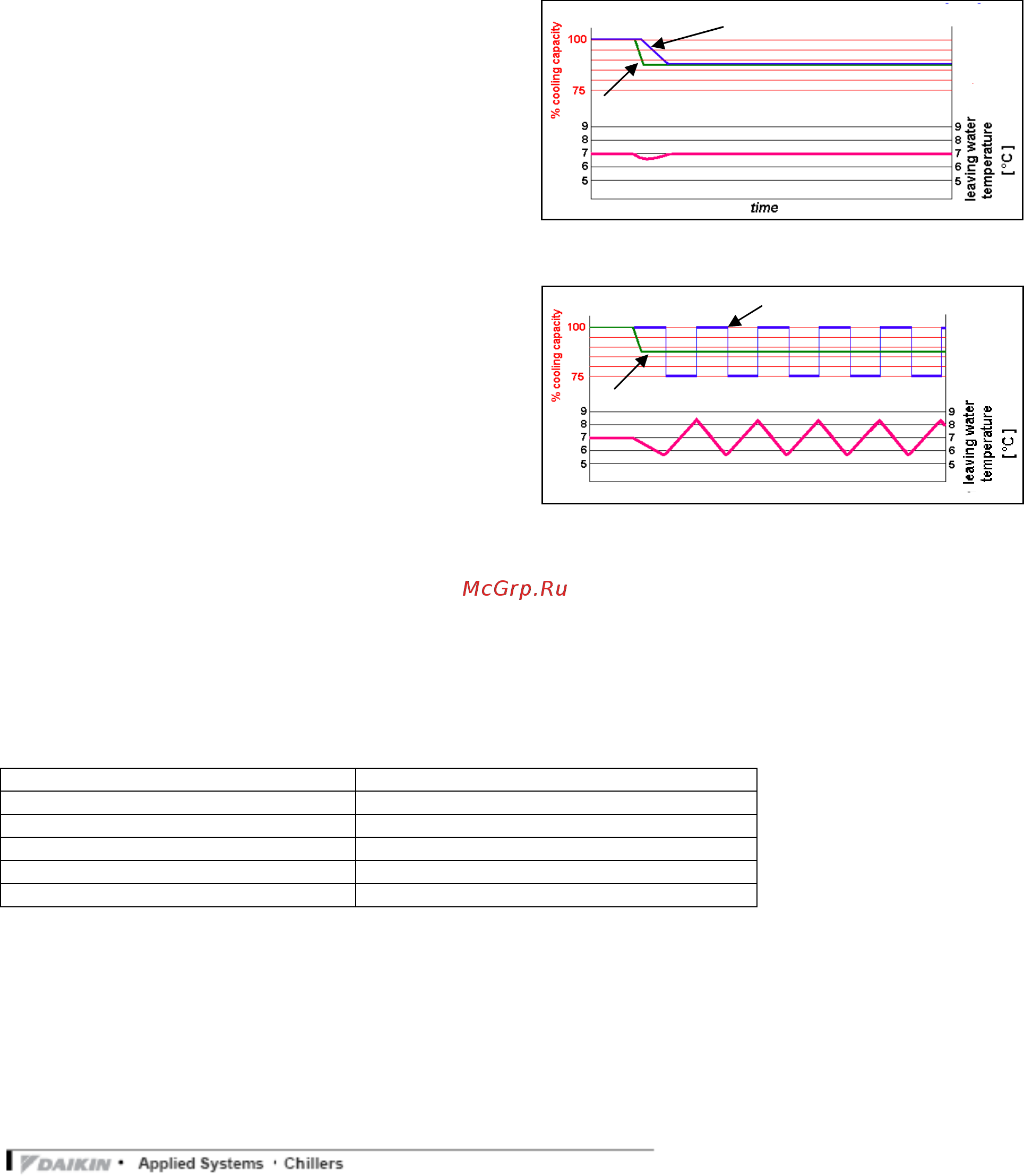

ELWT fluctuation with steps capacity control (4 steps)
EWLT fluctuation with stepless capacity control
Features and advantages
The EWLD~I- chillers, featuring 1, 2 or 3 single screw compressors, are manufactured to satisfy the requirements of the
consultants and the end user. Units are designed to minimise energy costs while maximising the refrigeration capacities.
Daikin’s chiller design experience combined with outstanding features makes the EWLD~I- chiller unmatched in the industry.
Seasonal quietness
The compressor design with a single screw and twin rotors allows a constant gas flow. This compression process completely
eliminates gas pulsations. The oil injection also results in significant mechanical noise reduction.
The twin gas compressor discharge chambers are designed to act as attenuators, based on the harmonic wave principle
with destructive interference, thus always resulting equal to zero. The extremely low noise compressor performance affords
the use of EWLD~I- chiller for all applications.
The reduced number of vibrations produced from the EWLD~I- chiller offers a surprisingly quiet operation eliminating the
noise transmission through the structure and the chilled water piping system.
Infinitely capacity control
Cooling capacity control is infinitely variable by means of a
screw compressor controlled by microprocessor system.
Each unit has infinitely variable capacity control from 100%
down to 25% (one compressor unit), down to 12,5% (two
compressors units) and down to 8.3% (three compressors
units). This modulation allows the compressor capacity to
exactly match the building cooling load without any leaving
evaporator water temperature fluctuation. This chilled water
temperature fluctuation is avoided only with a stepless
control.
With a compressor load step control in fact, the compressor
capacity, at partial loads, will be too high or too low compared
to the building cooling load. The result is an increase in chiller
energy costs, particularly at the part-load conditions at which
the chiller operates most of the time.
Units with stepless regulation offer benefits that the units with step regulation are unable to match. The ability to follow the
system energy demand at any time and the possibility to provide steady outlet water temperature without deviations from the
set-point, are the two points that allow you to understand how the optimum operating conditions of a system can be met only
through the use of a unit with step-less regulation.
Code requirements – Safety and observant of laws/directives
All water cooled units are designed and manufactured in accordance with applicable selections of the following:
Construction of pressure vessel 97/23/EC (PED)
Machinery Directive 2006/42/EC
Low Voltage 2006/95/EC
Electromagnetic Compatibility 2004/108/EC
Electrical & Safety codes EN 60204–1 / EN 60335-2-40
Manufacturing Quality Stds UNI – EN ISO 9001:2004
time
Compressor Load
Building Load
Building Load
Compressor Load
