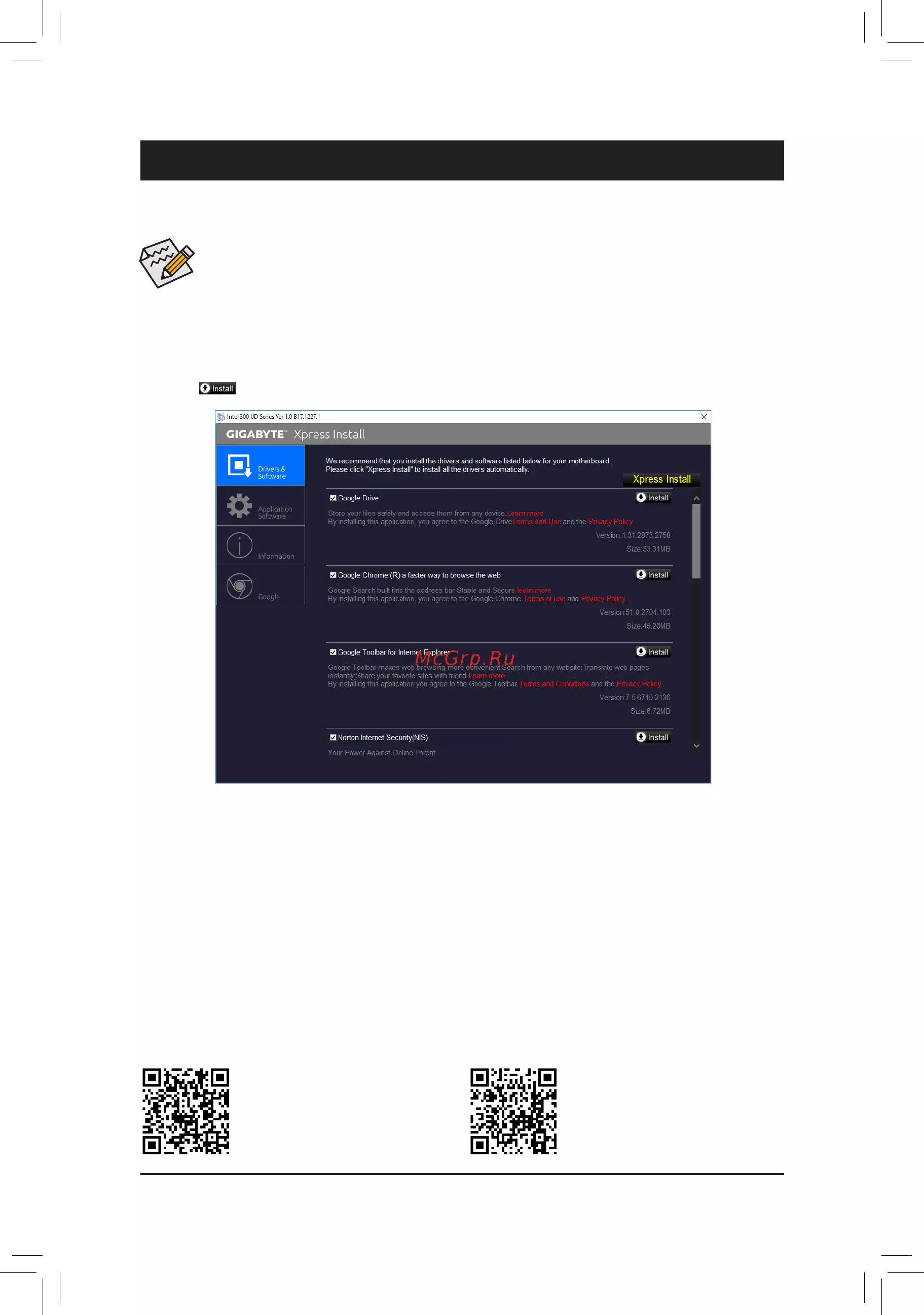

Gigabyte H310 D3 2.0 — установка драйверов для материнских плат: пошаговое руководство [37/40]

Содержание

• H310 d3 2 p.1
• User s manual p.1
• Rev 1001 p.1
• Disclaimer p.2
• Identifying your motherboard revision p.2
• Copyright p.2
• Chapter 1 hardware installation p.3
• Table of contents p.3
• H310 d3 2 motherboard layout p.3
• Chapter 3 appendix 7 p.3
• Chapter 2 bios setup 8 p.3
• H310 d3 2 motherboard layout p.4
• User s manual p.4
• Motherboard driver disk 5 i o shield p.4
• H310 d3 2 motherboard 5 two sata cables p.4
• H310 d3 2 p.4
• Box contents p.4
• Chapter 1 hardware installation p.5
• 1 installation precautions p.5
• 2 productspecifications p.6
• 2 product specifications p.6
• 3 installingthecpu p.9
• 3 installing the cpu p.9
• Installingthecpu p.9
• Dualchannelmemoryconfiguration p.9
• 4 installingthememory p.9
• 4 installing the memory p.9
• 6 back panel connectors p.10
• Usb 3 gen 1 port p.10
• Usb 2 1 port p.10
• Serial port p.10
• Ps 2 keyboard mouse port p.10
• Parallel port p.10
• D sub port p.10
• 5 installinganexpansioncard p.10
• 5 installing an expansion card p.10
• Can use this port to connect your hdmi supported monitor the maximum supported resolution is 4096x2160 30 hz but the actual resolutions supported are dependent on the monitor being used p.11
• Audiojackconfigurations p.11
• After installing the hdmi device make sure to set the default sound playback device to hdmi the item name may differ depending on your operating system p.11
• Toconfigure7 channelaudio youhavetouseanhdfrontpanelaudiomoduleandenablethe multi channel audio feature through the audio driver p.11
• The mic in jack p.11
• The line out jack use this audio jack for a headphone or 2 channel speaker p.11
• The line in jack use this audio jack for line in devices such as an optical drive walkman etc p.11
• The hdmi port supports hdcp 2 and dolby truehd and dts hd master audio formats it also supports up to 192khz 16bit 8 channel lpcm audio output you p.11
• The gigabit ethernet lan port provides internet connection at up to 1 gbps data rate the following describes the states of the lan port leds p.11
• Rj 45 lan port p.11
• Pleasevisitgigabyte swebsitefordetailsonconfiguringtheaudiosoftware p.11
• Mic in center subwoofer speaker out pink p.11
• Line out front speaker out green p.11
• Line in rear speaker out blue p.11
• Hdmi port p.11
• 7 internal connectors p.12
• All fan headers on this motherboard are 4 pin most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis p.13
• 4 cpu_fan sys_fan1 2 3 fan headers p.13
• 2 atx_12v_2x4 atx 2x4 12v power connector and 2x12 main power connector p.13
• With the use of the power connector the power supply can supply enough stable power to all the components onthemotherboard beforeconnectingthepowerconnector firstmakesurethepowersupplyisturned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation p.13
• To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system p.13
• Thesefanheadersarenotconfigurationjumperblocks donotplaceajumpercapontheheaders p.13
• The 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start p.13
• Overheating overheating may result in damage to the cpu or the system may hang p.13
• Be sure to connect fan cables to the fan headers to prevent your cpu and system from p.13
• To enable hot plugging for the sata ports refer to chapter 2 bios setup peripherals sata andrstconfiguration formoreinformation p.14
• The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and sata 1 gb s standard each sata connector supports a single sata device p.14
• The m connector supports m sata ssds and m pcie ssds p.14
• The availability of the sata connectors may be affected by the type of device installed in the m connector the m2p connector shares bandwidth with the sata3 3 connector refer to the following table for details p.14
• Select the proper hole for the m ssd to be installed and refasten the screw and standoff p.14
• Sata3 0 1 2 3 sata 6gb s connectors p.14
• Pin no definition p.14
• M2p m socket 3 connector p.14
• Installation notices for the m and sata connectors p.14
• Follow the steps below to correctly install an m ssd in the m connector step 1 use a screw driver to unfasten the screw and standoff from the motherboard locate the proper mounting holeforthem ssdtobeinstalledandthenscrewthestandofffirst step 2 slide the m ssd into the connector at an angle step 3 press the m ssd down and then secure it with the screw p.14
• Res reset switch green connects to the reset switch on the chassis front panel press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart p.15
• Pw power switch red connects to the power switch on the chassis front panel you may configurethewaytoturnoffyoursystemusingthepowerswitch refer to chapter 2 bios setup power for more information p.15
• Pled pwr_led power led yellow purple p.15
• Pin no definition pin no definition p.15
• Nc orange no connection p.15
• Nc 9 line2_l p.15
• Mic2_r 8 no pin p.15
• Mic2_l 6 sense p.15
• Line2_r 10 sense p.15
• Hd hard drive activity led blue connects to the hard drive activity led on the chassis front panel the led is on when the hard drive is reading or writing data p.15
• Gnd 7 faudio_jd p.15
• Thefrontpanelaudioheadersupportshighdefinitionaudio hd youmayconnectyourchassisfront panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it p.15
• F_panel frontpanelheader p.15
• The front panel design may differ by chassis a front panel module mainly consists of power switch reset switch power led hard drive activity led speaker and etc when connecting your chassis front panel module to this header make sure the wire assignments and the pin assignments are matched correctly p.15
• F_audio front panel audio header p.15
• System status led p.15
• Connects to the power status indicator on the chassis front panel the led is on when the system is operating the led is off when the system is in s3 s4 sleep state or powered off s5 p.15
• Speak speaker orange connects to the speaker on the chassis front panel the system reports system startup status by issuing a beep code one single short beep will be heard if no problem is detected at system startup p.15
• Some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer p.15
• Connect the power switch reset switch speaker chassis intrusion switch sensor and system status indicator on the chassis to this header according to the pin assignments below note the positive and negative pins before connecting the cables p.15
• S3 s4 s5 off p.15
• Ci chassis intrusion header gray connects to the chassis intrusion switch sensor on the chassis that can detect if the chassis cover has been removed this function requires a chassis with a chassis intrusion switch sensor p.15
• This header supports digital s pdif out and connects a s pdif digital audio cable provided by expansion cards for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards for example some graphics cards may require you to use a s pdif digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an hdmi display to the graphics card and have digital audio output from the hdmi display at the same time for information about connecting the s pdif digital audio cable carefully read the manual for your expansion card p.16
• Theheaderconformstousb3 gen1andusb2 specificationandcanprovidetwousbports for purchasing the optional 3 front panel that provides two usb 3 gen 1 ports please contact the local dealer p.16
• Theheaderconformstousb2 1 specification eachusbheadercanprovidetwousbportsviaan optional usb bracket for purchasing the optional usb bracket please contact the local dealer p.16
• Spdif_o s pdif out header p.16
• From the power outlet to prevent damage to the usb bracket p.16
• F_usb30 usb 3 gen 1 header p.16
• F_usb1 usb 2 1 header p.16
• Do not plug the ieee 1394 bracket 2x5 pin cable into the usb 2 1 header prior to installing the usb bracket be sure to turn off your computer and unplug the power cord p.16
• Replace the battery 4 plug in the power cord and restart your computer p.17
• Always turn off your computer and unplug the power cord before replacing the battery replace the battery with an equivalent one damage to your devices may occur if the battery is p.17
• Pin no definition pin no definition p.17
• After system restart go to bios setup to load factory defaults select load optimized defaults or p.17
• Or uncertain about the battery model p.17
• Open normal p.17
• Of the battery the positive side should face up p.17
• You may connect a tpm trusted platform module to this header p.17
• Object like a screwdriver to touch the positive and negative terminals of the battery holder making them short for 5 seconds p.17
• You may clear the cmos values by removing the battery 1 turn off your computer and unplug the power cord 2 gently remove the battery from the battery holder and wait for one minute or use a metal p.17
• No pin 10 nc p.17
• When installing the battery note the orientation of the positive side and the negative side p.17
• Manuallyconfigurethebiossettings refertochapter2 biossetup forbiosconfigurations p.17
• Vcc3 8 gnd p.17
• Lclk 12 lreset p.17
• Usethisjumpertoclearthebiosconfigurationandresetthecmosvaluestofactorydefaults toclear the cmos values use a metal object like a screwdriver to touch the two pins for a few seconds p.17
• Lad2 11 serirq p.17
• Used batteries must be handled in accordance with local environmental regulations p.17
• Lad1 9 lframe p.17
• Tpm trusted platform module header p.17
• Lad0 7 lad3 p.17
• Thebatteryprovidespowertokeepthevalues suchasbiosconfigurations date andtimeinformation in the cmos when the computer is turned off replace the battery when the battery voltage drops to a low level or the cmos values may not be accurate or may be lost p.17
• Contact the place of purchase or local dealer if you are not able to replace the battery by yourself p.17
• The cmos values p.17
• Clr_cmos clear cmos jumper p.17
• Short clear cmos values p.17
• Bat battery p.17
• Replaced with an incorrect model p.17
