Fluke FLK-1507 Data Sheet онлайн
Technical Data
•
Repetitive or hard-to-reach
testing is easy with the remote
test probe
•
Live circuit detection prevents
insulation test if voltage
> 30 V is detected for added
user protection
•
Auto-discharge of capac
itive
voltage for added user protection
•
A
C
/DC voltage: 0.1 V to 600 V
•
200 mA Continuity
•
Resistance: 0.01 Ω to 20.00 KΩ
•
Sa
ve batter
y power w
ith auto
power off
1507/1503
Insulation Testers
Features and benefits:
•
Insulation test range:
••
1
50
7: 0.01 M
Ω to 1
0 G
Ω
••
1503: 0.1 MΩ to 2000 MΩ
•
Insulation test voltages:
••
1507: 50 V, 100 V, 250 V,
500 V, 1000 V
••
1
503: 500 V, 1
000 V
•
Save both time and money with
Automatic calculation of Polar-
ization Index and Dielectric
Absorption Ratio
•
Make repetitive tests simple and
easy w
ith the 1
50
7’s Compare
(Pass/Fail) function (only avail-
able on the 1507)

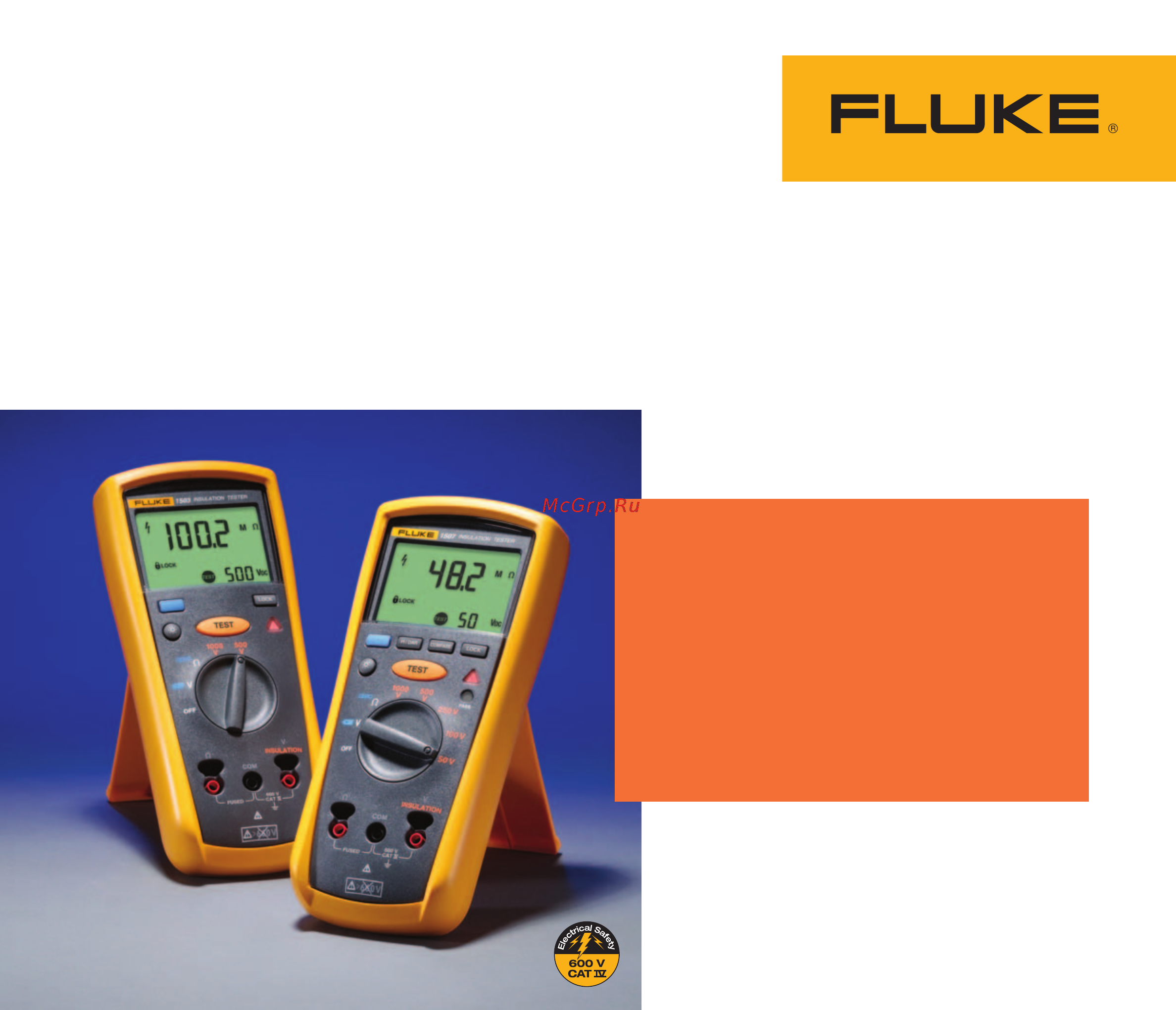

The Fluke 1507 and 1503 Insulation
Testers are compact, rugged, reliable,
and easy to use. With their multiple
test voltages, they are ideal for many
troubleshooting, commissioning, and
preventative maintenance applications.
Additional features, like the remote
probe on these tools save both time
and money when performing tests.
•
Read measurements easily w
ith
large, backlit display
•
CAT IV 600 V overvoltage
category rating for added user
protection
•
Remote probe, test leads, probes
and alligator clips included w
ith
each tester
•
Accepts optional Fluke TPAK
mag
netic hang
ing system to free
your hands for other work
•
Four AA alkaline batteries (NEDA
15 A or IEC LR6) for at least
1000 insulation tests
•
One-year warranty
