2-2 M.I.T.

This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency,

total memory size, CPU temperature and CPU voltage, etc.

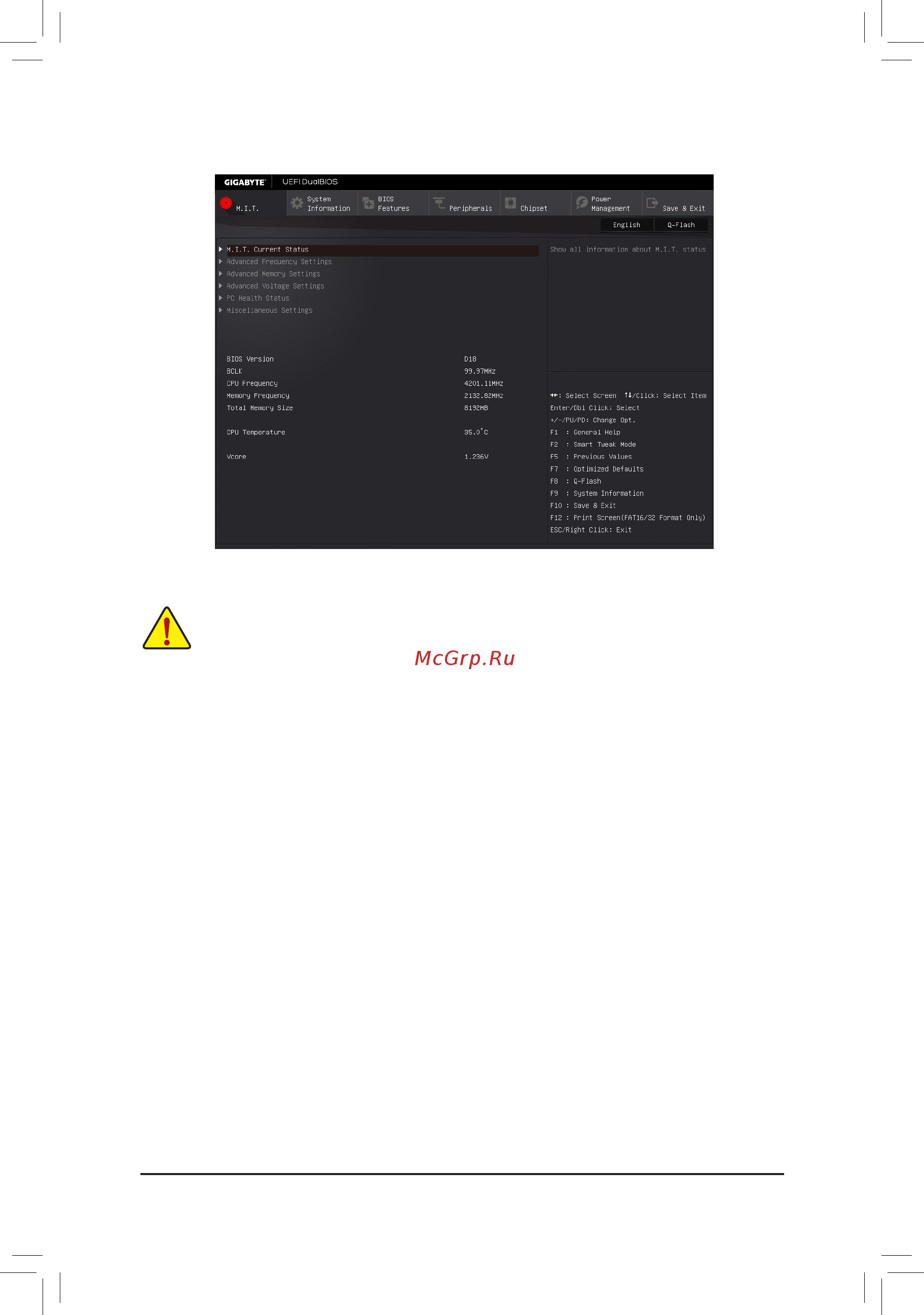

` M.I.T. Current Status

This screen provides information on CPU/memory frequencies/parameters.

Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall

systemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamagetoCPU,chipset,ormemory

and reduce the useful life of these components. This page is for advanced users only and we recommend you not to

alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings

may result in system's failure to boot. If this occurs, clear the CMOS values and reset the board to default values.)

` Advanced Frequency Settings

& Performance Upgrade

(Note)

 Providesyouwithvedifferentoverclockingcongurations.Optionsare:20%Upgrade,40%Upgrade,

60%Upgrade,80%Upgrade,100%Upgrade.(Default:Auto)

& CPU Base Clock

Allows you to manually set the CPU base clock in 0.01 MHz increments. (Default: Auto)

Important: It is highly recommended that the CPU frequency be set in accordance with the CPU

specications.

& Host Clock Value

This value changes with the CPU Base Clock setting.

& CPU Upgrade

(Note)

Allows you to set the CPU frequency. Options may vary depending on the CPU being used. (Default: Auto)

& CPU Clock Ratio

Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU

being installed.

(Note) This item is present only when you install a CPU that supports this feature. For more information about

Intel

CPUs' unique features, please visit Intel's website.
