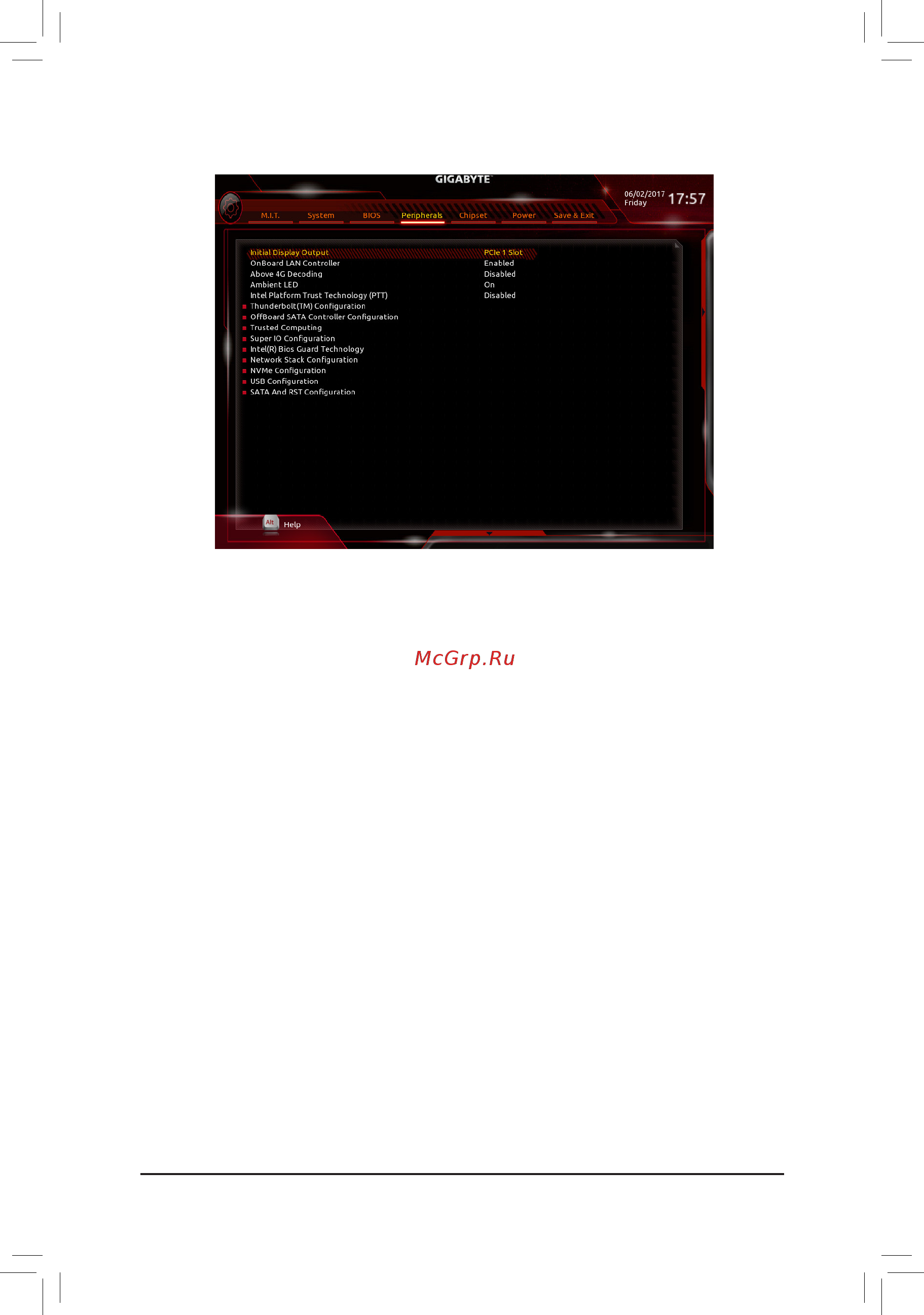

2-5 Peripherals

& Initial Display Output

 SpeciestherstinitiationofthemonitordisplayfromtheinstalledPCIExpressgraphicscardortheonboard

graphics.

IGFX   Setstheonboardgraphicsastherstdisplay.

PCIe1Slot SetsthegraphicscardonthePCIEX16slotastherstdisplay.(Default)

& OnBoard LAN Controller

Enables or disables the onboard LAN function. (Default: Enabled)

If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to

Disabled.

& Above4GDecoding

Enables or disables 64-bit capable devices to be decoded in above 4 GB address space (only if your system

supports 64-bit PCI decoding). Set to Enabled if more than one advanced graphics card are installed and

their drivers are not able to be launched when entering the operating system (because of the limited 4 GB

memory address space). (Default: Disabled)

& AmbientLED

Enables or disables the onboard audio LED function. (Default: On)

& IntelPlatformTrustTechnology(PTT)

Enables or disables Intel

PTT Technology. (Default: Disabled)

` OffBoardSATAControllerConguration

Displays information on your SSD if installed.

` TrustedComputing

Enables or disables Trusted Platform Module (TPM).

` SuperIOConguration

& Serial Port

Enables or disables the onboard serial port. (Default: Enabled)
