Gigabyte GA-B150M-Gaming (rev. 1.0) [12/37] 7 internal connectors

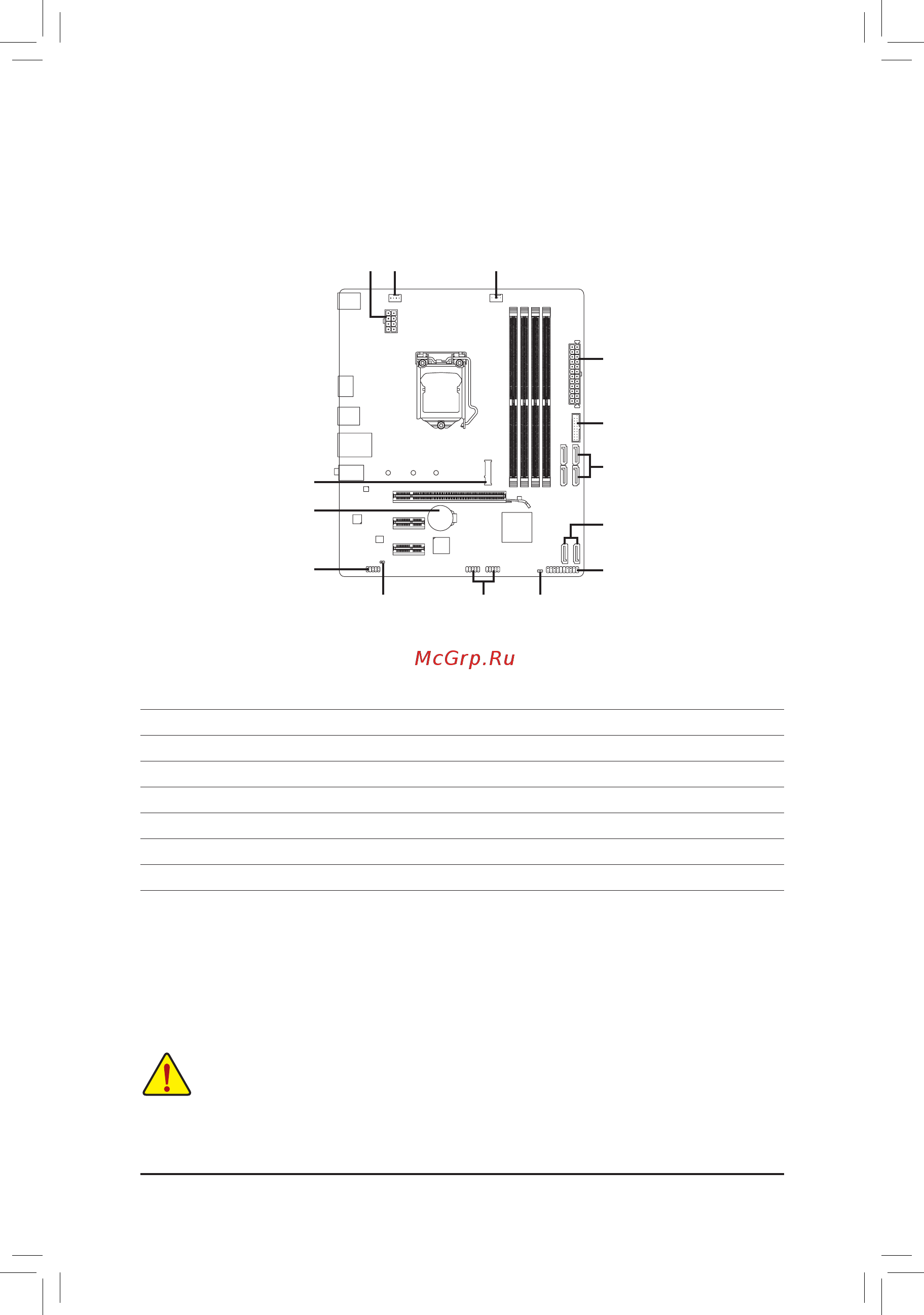

1-7 Internal Connectors

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has been

securely attached to the connector on the motherboard.

1) ATX_12V_2X4

2) ATX

3) CPU_FAN

4) SYS_FAN

5) SATA3 0/1/2/3/4/5

6) M.2

7) F_PANEL

8) F_AUDIO

9) SPDIF_O

10) F_USB30

11) F_USB1/F_USB2

12) BAT

13) CLR_CMOS

9 13

- 12 -
