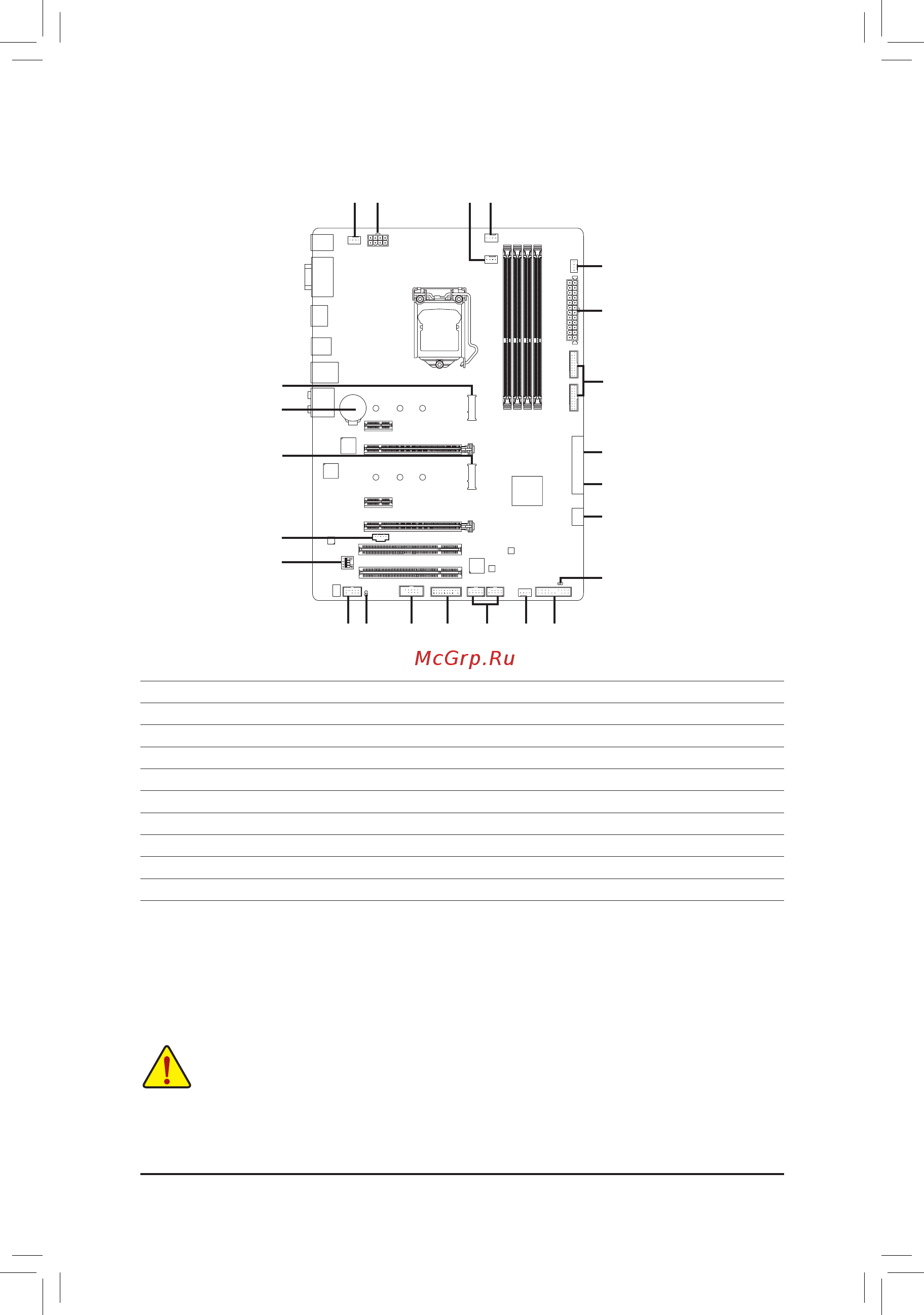

1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
14
1
7
1512
10
11
3
19
9
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) CPU_OPT
6) SATA EXPRESS
7) SATA3 0/1/2/3/4/5
8) M2A_32G/M2D_32G
9) F_PANEL
10) BAT
11) F_AUDIO
12) SPDIF_O
13) GAIN
14) F_USB30_1/F_USB30_2
15) F_USB1/F_USB2
16) COMA
17) THB_C
18) TPM
19) CLR_CMOS
16
8
18
4
4
6
7
5
2
17
8
4
13
