Wiring diagrams

3TW52016-1D

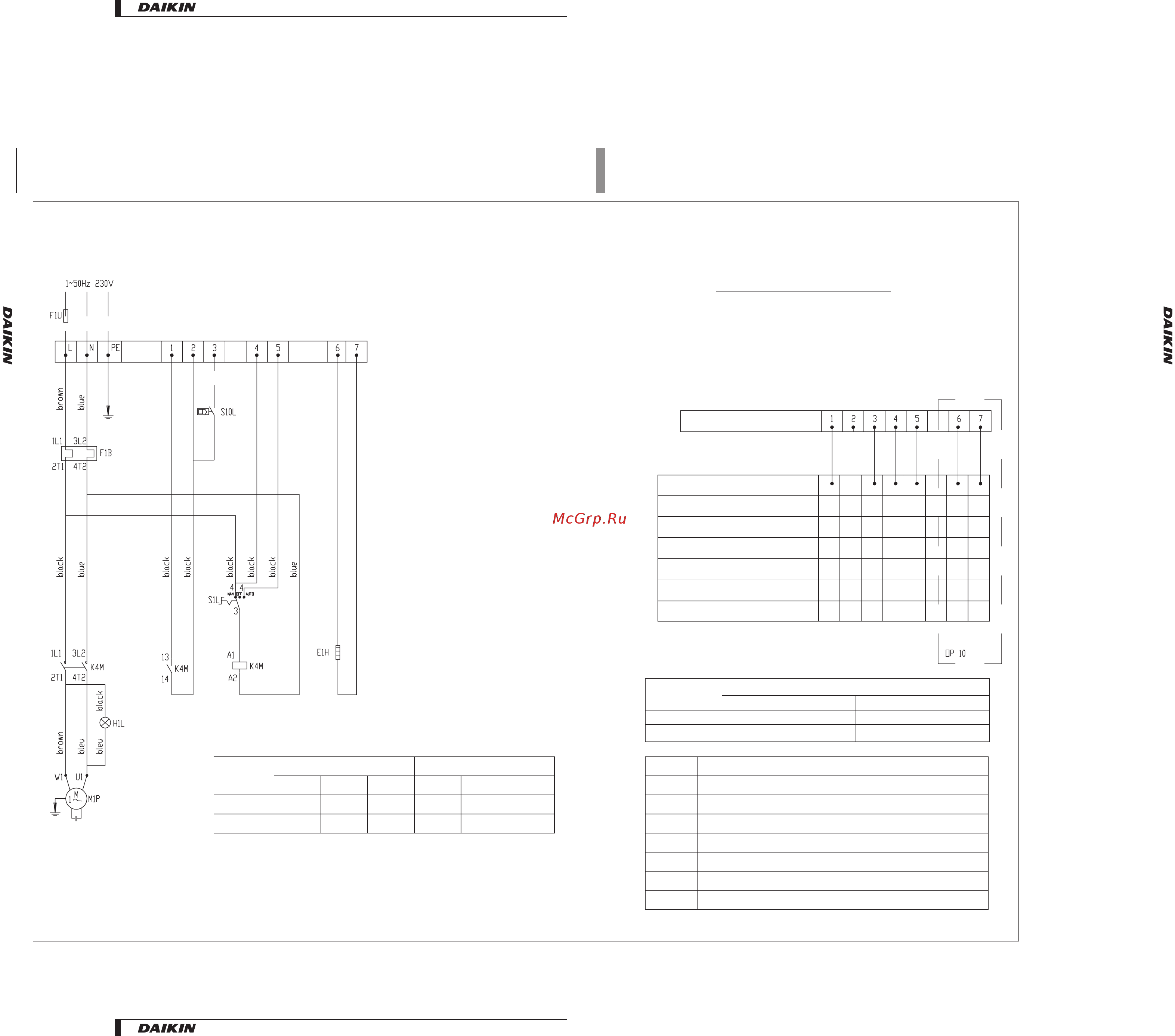

NOTES TO GO THROUGH BEFORE STARTING THE UNIT

(1) Field installation

(2) • Terminal

(3) + PE : Earth

+ L N : Main terminals

+ 1-7 : Terminals on main rail

+ W1 U1 : Terminals on main rail

(4) Connection diagram to chiller

Field supply

Not poss. as option Poss. as option

Obligatory # ##

Not obligatory ∗∗∗

S1L Selector switch

F1U # Main fuses for the unit

K4M Pump contactor

S10L # Flow switch

F1B Overcurrent protector

H1L Indication lamp

M1P Pump motor

E1H Electric heater

EHMC*AV1010 EHMC*AV1080

EHMC10 EHMC15 EHMC30 EHMC10 EHMC15 EHMC30

F1U 20aM 20aM 20aM 20aM 20aM 20aM

F1B 4.4A 4.4A 5A 5A 5A 10A

Pump & tank kit

Chillers

EUWA5-8-10-12H B/C/D(Z) W1/T1 75 − 77 73 74 83 84

EUWA15-20-25-30H B(Z) W1/T1 72 − 76 77 78 104 106

EUWA15-20-25-30-35H C/D(Z) W1/T1 72 − 76 77 78 101 102

EUWY5-8-10H B/C/D W1 75 − 77 73 74 −−

EUWY15-20-25-30H B/C/D W1 72 − 76 77 78 −−

EUW5-8-10-12-16-20-24HZ W1 75 − 77 71 72 −−

• EHMC10-30AV1**

Wiring diagrams

• Hydronic Systems • Hydraulic Module
