- 28 -Hardware Installation

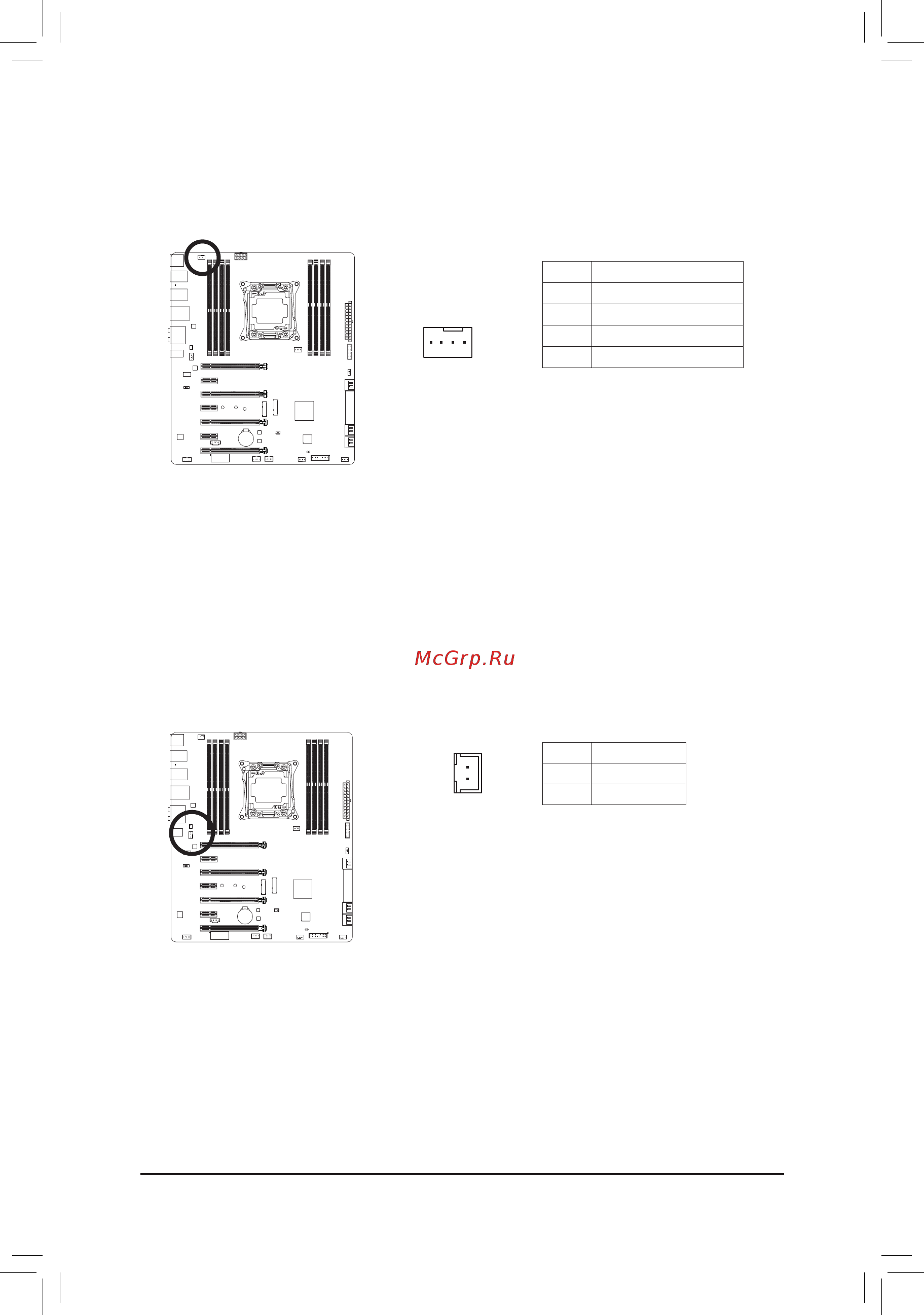

6) CPU_OPT (Water Cooling CPU Fan Header)

The fan header is 4-pin and possesses a foolproof insertion design. When connecting a fan cable, be sure

toconnectitinthecorrectorientation(theblackconnectorwireisthegroundwire).Thespeedcontrol

function requires the use of a fan with fan speed control design.

Pin No. Denition

1 GND

2 Speed Control

3 Sense

4 VCC

DEBUG

PORT

G.QBOFM

7) LED_CON1 (I/O Shield Audio LED Power Connector)

The power connector provides power to the LEDs on the I/O shield on the motherboard back panel.

Pin No. Denition

1 VCC

2 GND
