• When removing the cable connected to a back panel connector, rst remove the cable from your

device and then remove it from the motherboard.

• When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent

an electrical short inside the cable connector.

To congure 7.1-channel audio, you have to use an HD front panel audio module and enable the

multi-channel audio feature through the audio driver.

Line In Jack (Blue)

The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out Jack (Green)

The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used

to connect front speakers in a 4/5.1/7.1-channel audio conguration.

Mic In Jack (Pink)

The Mic in jack. Microphones must be connected to this jack.

1-7 Internal Connectors

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has been

securely attached to the connector on the motherboard.

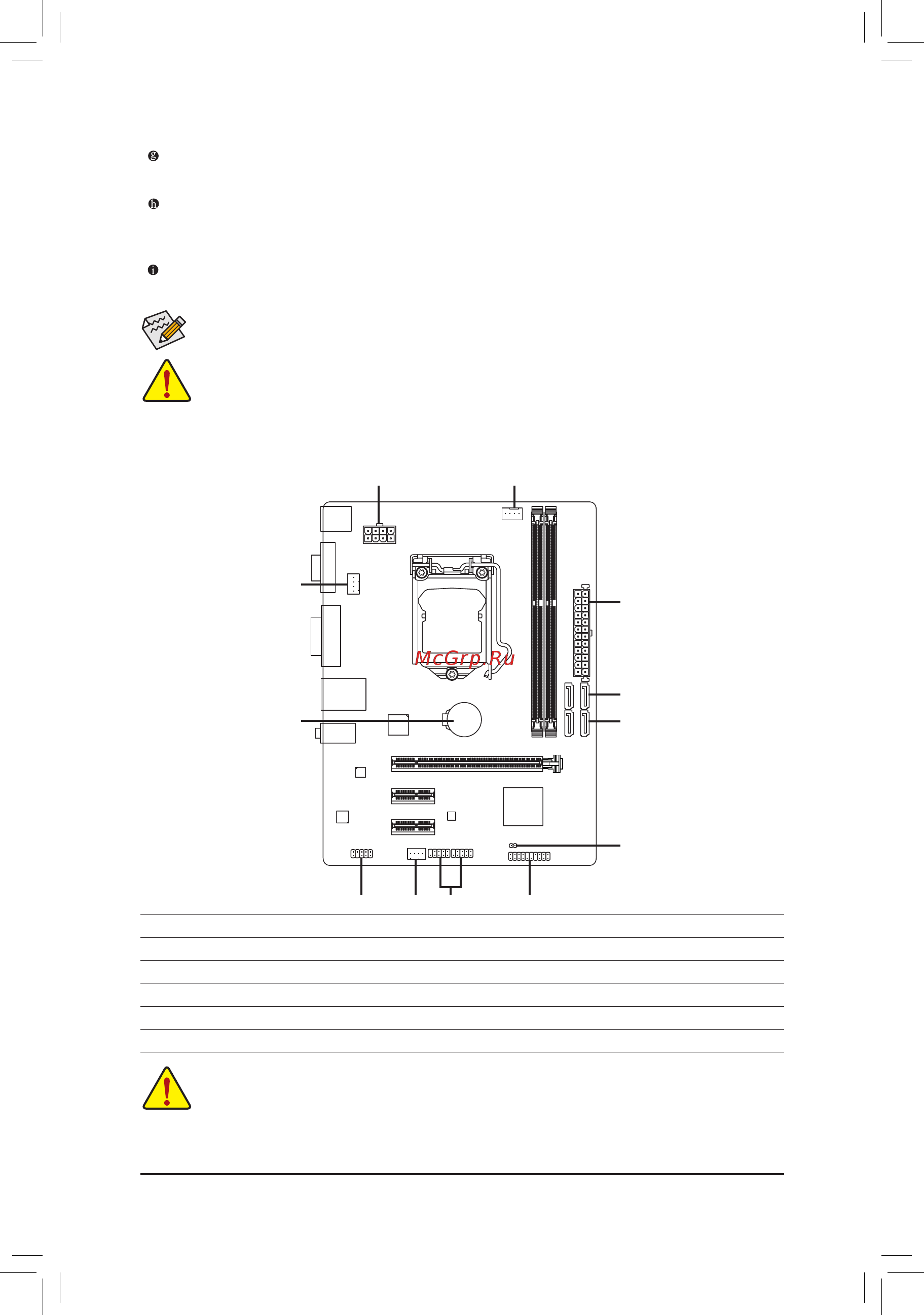

1) ATX_12V_2X4

2) ATX

3) CPU_FAN

4) SYS_FAN1/2

5) SATA3 0/1

6) SATA2 2/3

7) F_PANEL

8) F_AUDIO

9) F_USB1/F_USB2

10) BAT

11) CLR_CMOS
