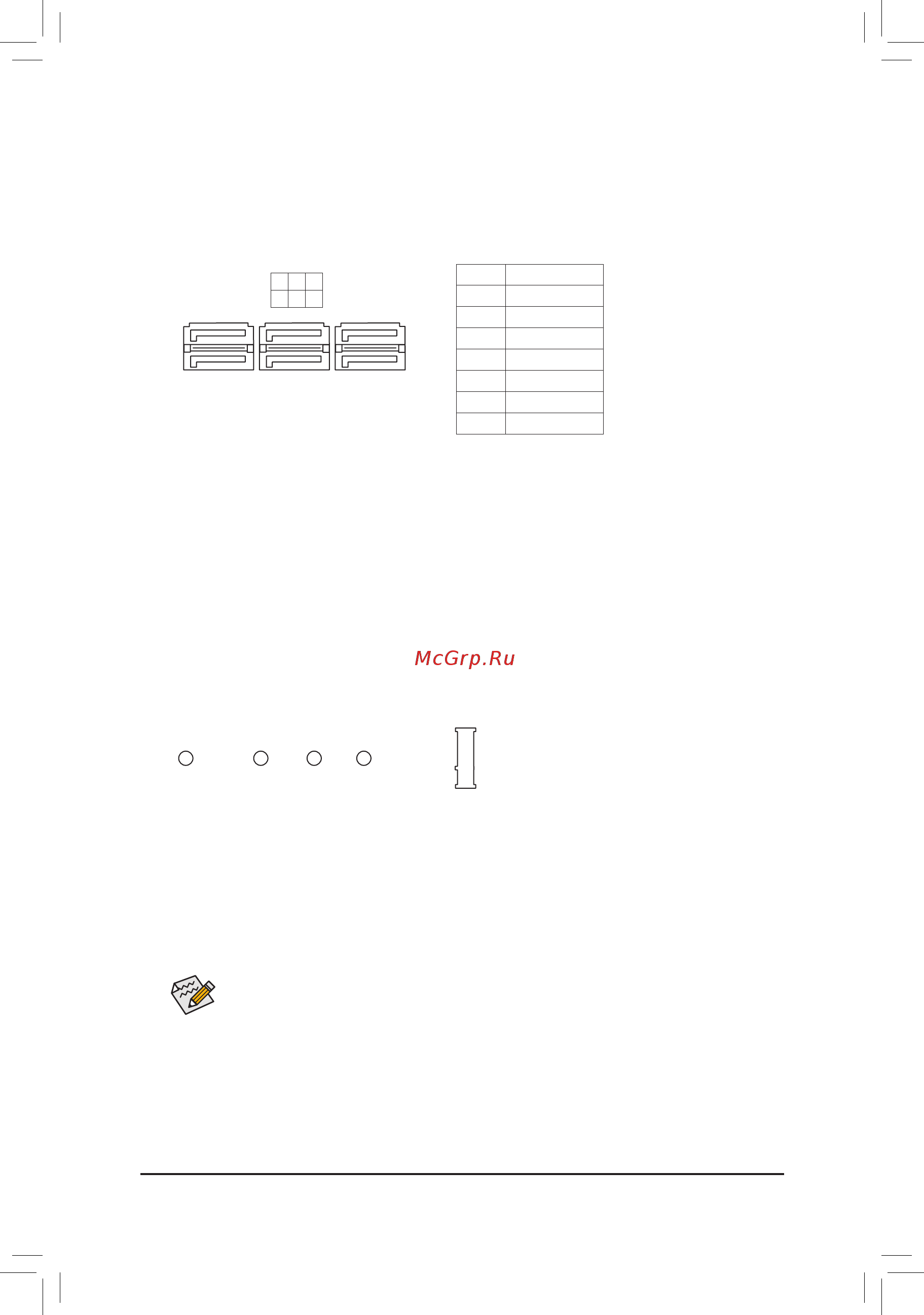

Gigabyte X570 UD (rev. 1.1) [15/44] Sata3 0 1 2 3 4 5 sata 6gb s connectors

7) SATA3 0/1/2/3/4/5 (SATA 6Gb/s Connectors)

The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA

1.5Gb/s standard. Each SATA connector supports a single SATA device. The SATA connectors support

RAID0,RAID1,andRAID10.RefertoChapter3,"ConguringaRAIDSet,"forinstructionsonconguring

aRAIDarray.

Pin No. Denition

1 GND

2 TXP

3 TXN

SATA3

4 2 0

5 3 1

8) M2A_SOCKET (M.2 Socket 3 Connectors)

 TheM.2connectorsupportsM.2SATASSDsorM.2PCIeSSDsandsupportRAIDconfiguration.

PleasenotethatanM.2PCIeSSDcannotbeusedtocreateaRAIDsetwithaSATAharddrive.Refer

Step 1:

Use a screw driver to unfasten the screw and standoff from the motherboard. Locate the proper mounting

holefortheM.2SSDtobeinstalledandthenscrewthestandoffrst.

Step 2:

Slide the M.2 SSD into the connector at an angle.

Step 3:

Press the M.2 SSD down and then secure it with the screw.
