30W Single Output Medical Type

RPS-30 series

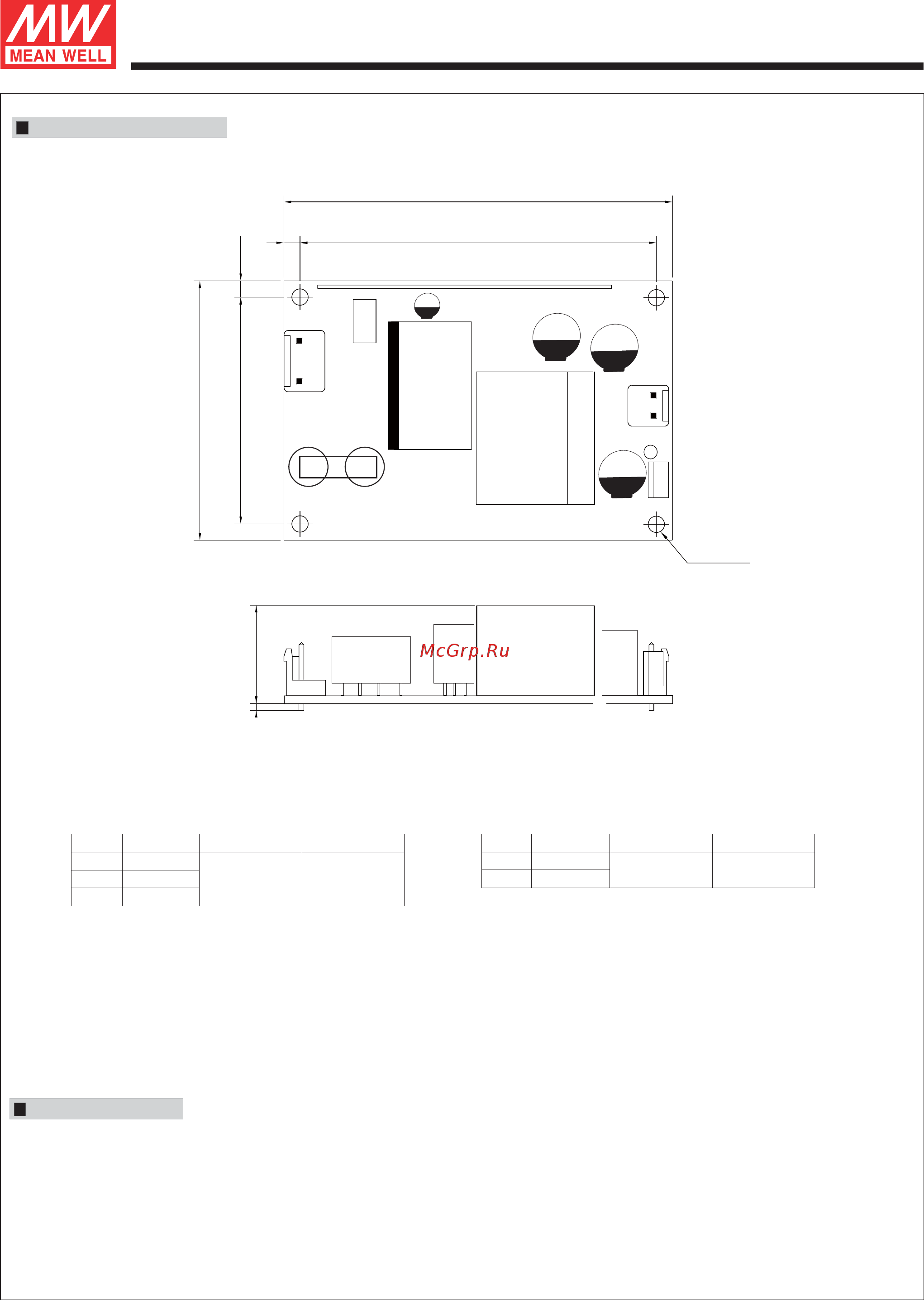

Mechanical Specification

Case No. Unit:mm

CN1

3.175

69.85

76.2

50.8

44.45

FS1

AC FUSE

T2A/250V

CN2

SVR1

LED

HS2

3 max.

AC Input Connector (CN1) : JST B3P-VH or equivalent

Pin No.

Assignment

AC/N

No Pin

AC/L

Mating Housing

JST VHR JST SVH-21T-P1.1

or equivalent or equivalent

Terminal

DC Output Connector (CN2) : JST B2P-VH or equivalent

Pin No.

Assignment

-V

Mating Housing

JST VHR

or equivalent

Terminal

JST SVH-21T-P1.1

or equivalent

Installation Manual

Please refer to : http://www.meanwell.com/webnet/search/InstallationSearch.html

File Name: -SPEC 2015-11-04RPS 30-

4- 3.2ψ
