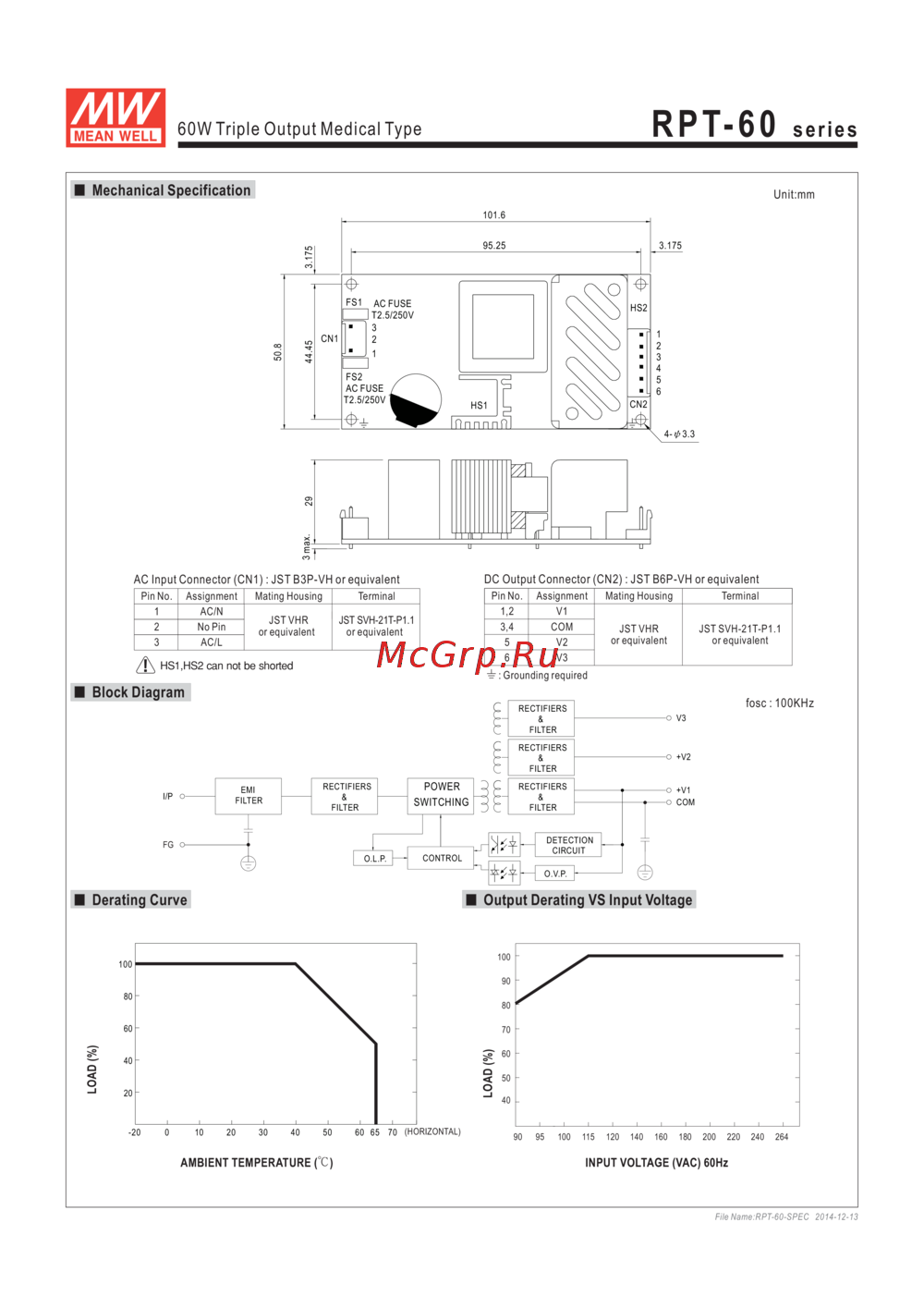

R P T 6 0 60W Triple Output Medical Type Mechanical Specification series Unit mm 101 6 3 175 95 25 50 8 44 45 FS1 3 175 AC FUSE T2 5 250V 3 2 1 CN1 HS2 1 2 3 4 5 6 FS2 AC FUSE T2 5 250V CN2 HS1 3 max 29 4 ψ3 3 DC Output Connector CN2 JST B6P VH or equivalent AC Input Connector CN1 JST B3P VH or equivalent Pin No 1 2 3 Assignment AC N No Pin AC L Mating Housing Terminal JST VHR or equivalent JST SVH 21T P1 1 or equivalent Pin No 1 2 3 4 5 6 HS1 HS2 can not be shorted Assignment V1 COM V2 V3 Mating Housing Terminal JST VHR or equivalent JST SVH 21T P1 1 or equivalent Grounding required Block Diagram RECTIFIERS FILTER EMI FILTER I P POWER SWITCHING V3 RECTIFIERS FILTER V2 RECTIFIERS FILTER V1 COM DETECTION CIRCUIT FG O L P fosc 100KHz RECTIFIERS FILTER CONTROL O V P Output Derating VS Input Voltage Derating Curve 100 100 90 80 80 70 LOAD LOAD 60 40 20 20 0 10 20 30 40 50 AMBIENT TEMPERATURE 60 65 70 HORIZONTAL 60 50 40 90 95 100 115 120 140 160 180 200 220 240 264 INPUT VOLTAGE VAC 60Hz File Name RPT 60 SPEC 2014 12 13
