D – KIMWC00412-09EN -36/88

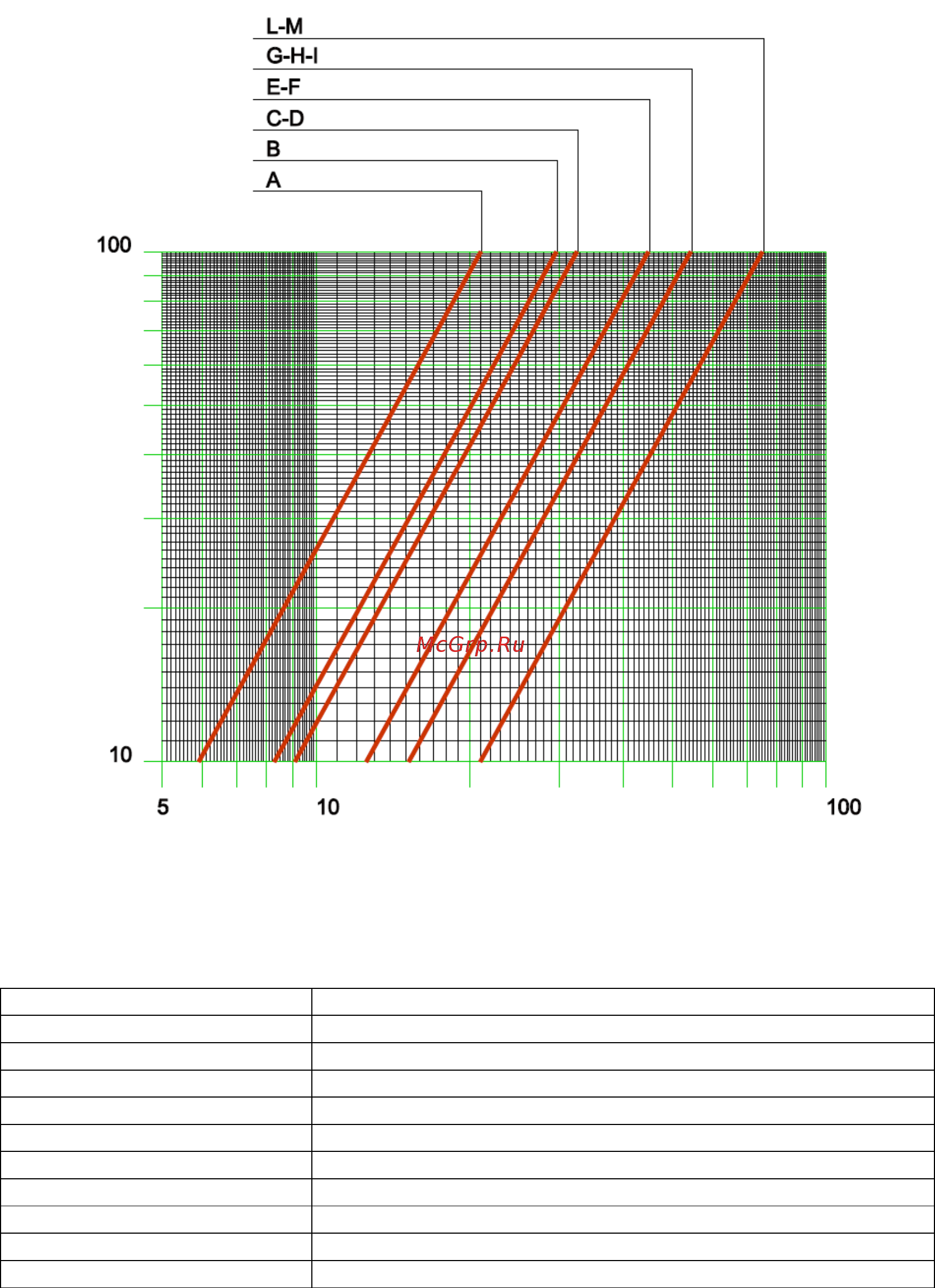

Evaporator
EWWD360~C12EJYNN/A
A EWWD360EJYNN/A
B EWWD440EJYNN/A
C EWWD500EJYNN/A
D EWWD600EJYNN/A
E EWWD750EJYNN/A
F EWWD800EJYNN/A
G EWWD850EJYNN/A
H EWWD950EJYNN/A
I EWWDC10EJYNN/A
L EWWDC11EJYNN/A
M EWWDC12EJYNN/A
Water flow (l/s)
Pressure d
r
o
p
(
kPa
)
