Procedure for Software Upload/Download ESIE07-05

3–14 Part 3 – Troubleshooting

Step Action

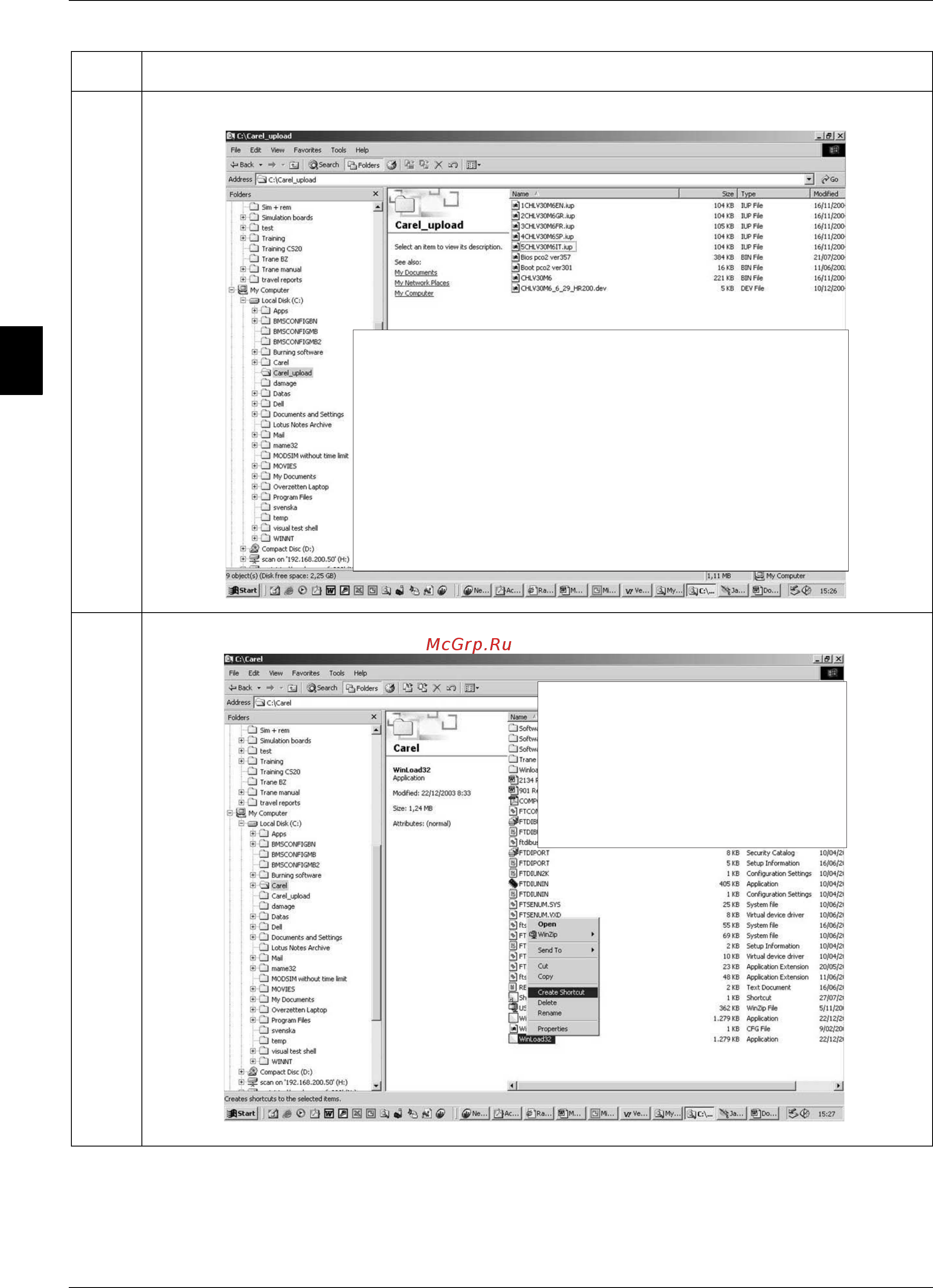

All program files are placed into the upload folder now

Remark:

• No old or other files may be placed into this (only program-files)

• If you copy the files from a CD to this folder then the property of

this files is “read only” disable read only

Select all files

Right click and select properties

Disable “read only”

Press ok

1. Go to the Carel folder

2. Right click winload32.exe

3. Select “Create Shortcut”

Shortcut to Winload32 will be made
