ESIE07-05 Procedure for Software Upload/Download

Part 3 – Troubleshooting 3–13

Step Action

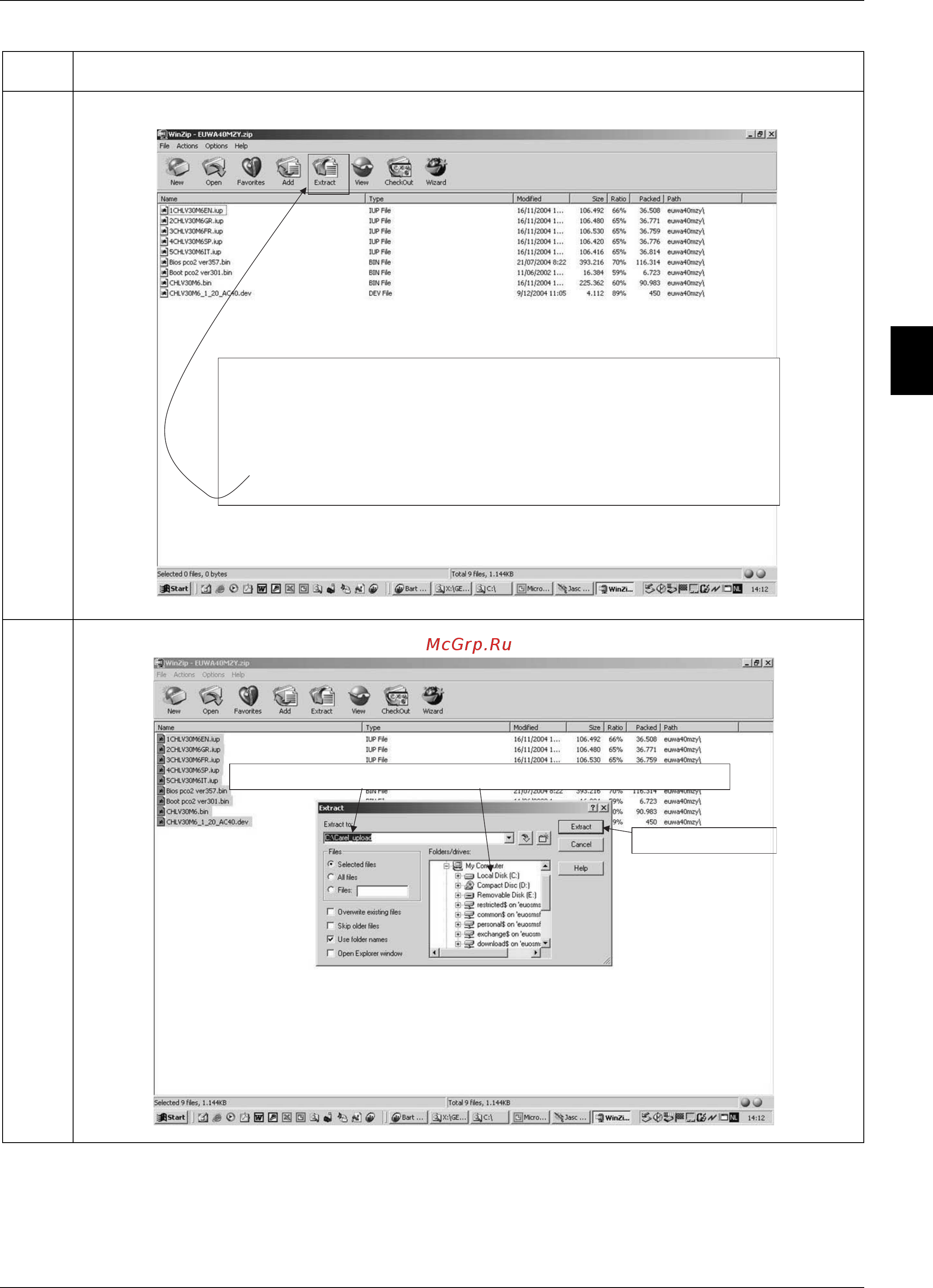

Winzip will open :

1. Select the files

• If you have a 2Mb controller you can upload all languages (*.iup-files)

• If you have a 1Mb controller only 2 languages can be uploaded, only

extract 2 languages (*.iup-files) to the upload folder.

2. Press on extract

1. Browse to the carel_upload folder

2. Press Extract
