FUNCTION MANUAL
※ In addition to the adjustment via the built-in potentiometer, the output voltage can be trimmed to 50~125% of the nominal voltage by applying
EXTERNAL VOLTAGE.

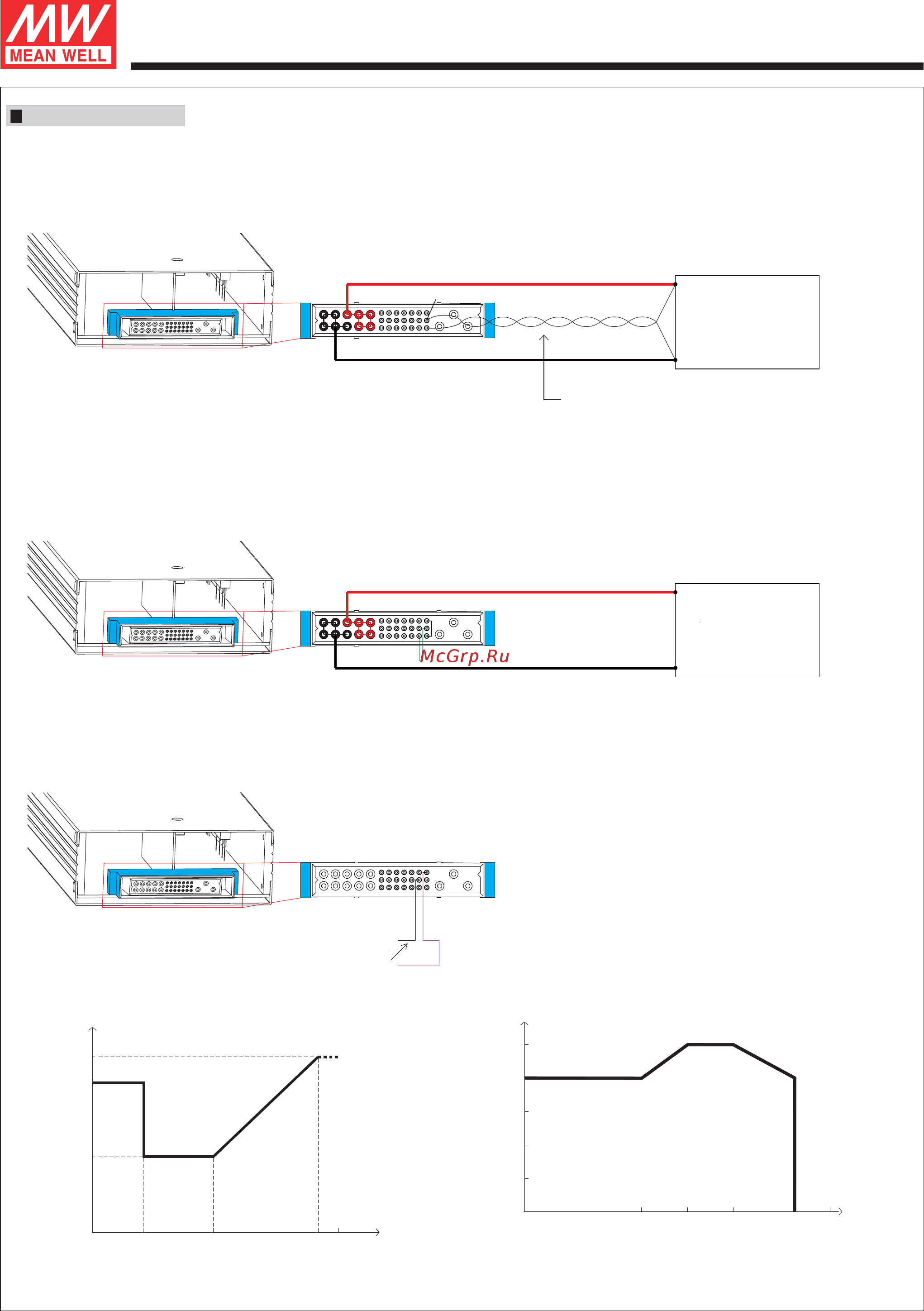

2. Output Voltage Programming (or, PV / remote voltage programming / remote adjust / margin programming / dynamic voltage trim)
EXTERNAL VOLTAGE (DC)
※ The Remote Sense compensates voltage drop on the load wiring up to 0.5V
1.1 Remote Sense
1.2 Local Sense
※ The +S,-S have to be connected to the +V(signal),-V(signal), respectively, as the following diagram, in order to get the correct output voltage if Remote
Sense is not used.
1. Voltage Drop Compensation
Sense lines should be twisted in pairs to minimize noise pick-up.
L
L
O
O
A
A
D
D
-V
-V
+V
+V
PIN31 -S
PIN31 -S
PIN28 +V(signal)
PIN30 +S
PIN29 -V(signal)
PIN27 PV
PIN30 +S
PIN29 -V(signal)
◎ For Remote Sense / Local Sense, please refer to “Voltage Drop Compensation” section.
◎ The +S signal should be connected to the positive terminal of the load whereas -S signal to the negative terminal.
50
OUTPUT VOLTAGE(%)
EXTERNAL VOLTAGE (DC)
100
125
Vout
0.40 1 4.7 5
V
3200W Rack Mountable Front End Rectifier
DRP-3200 series
File Name:DRP-3200-SPEC 2018-05-18
90 95 100 125
V
100
40
60
80
20
OUTPUT VOLTAGE (%)
50
◎ The rated current should change with the Output Voltage Programming accordingly.
◎ For Remote Sense / Local Sense, please refer to “Voltage Drop Compensation” section.
OUTPUT CURRENT (%)
