Please refer to : http://www.meanwell.com/webnet/search/InstallationSearch.html
Installation Manual
‧
Screw terminal style

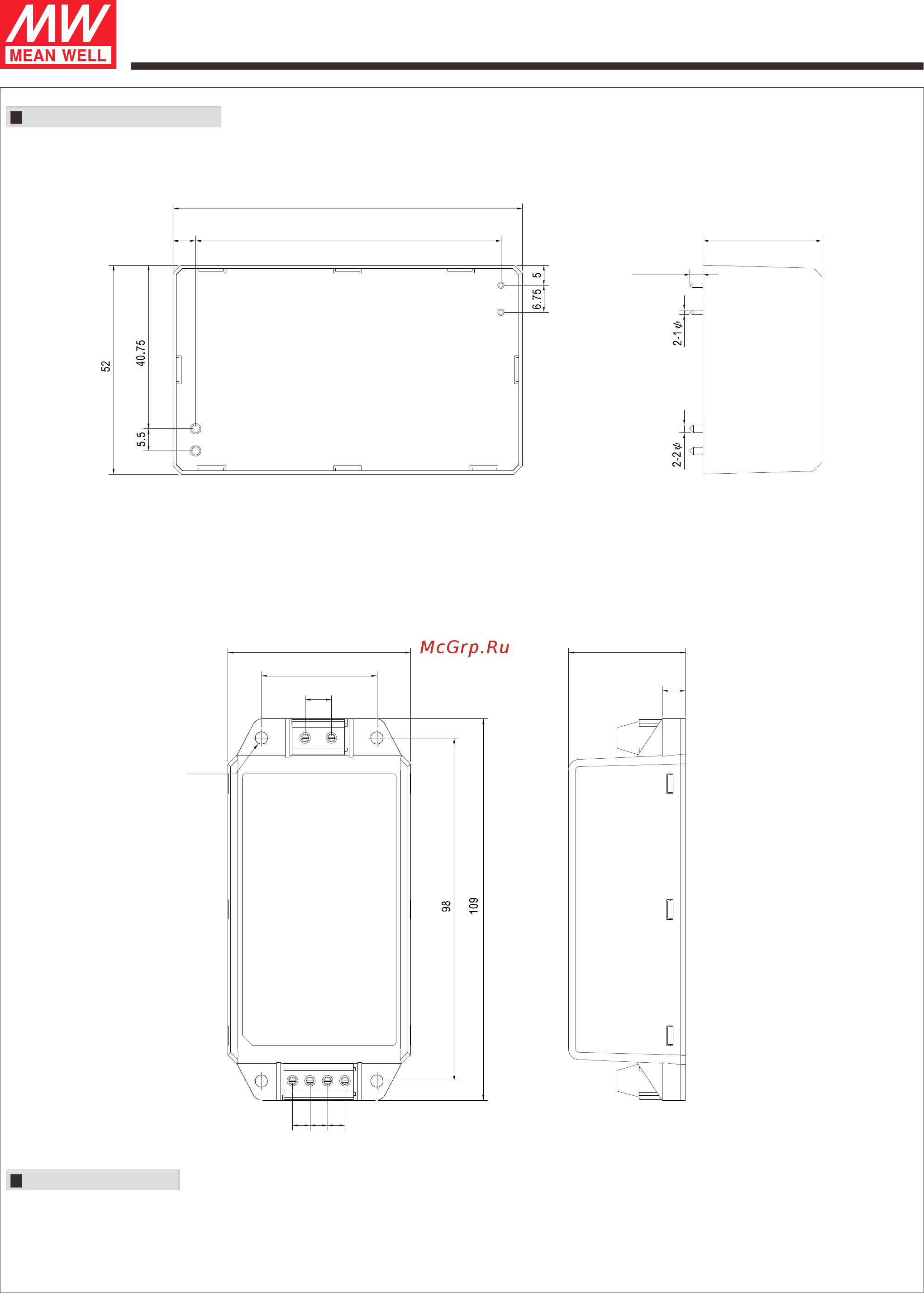

Mechanical SpecificationMechanical Specification
Case No.IRM60 Unit:mm
‧
PCB mounting style
AC/L, AC/N P/N diameter:1ψ
+V, -V P/N diameter:2ψ
File Name:IRM-60-SPEC 2015-03-17
60W Single Output Encapsulated Type
IR M - 6 0
seri e s
4- 3.5ψ
6.7
33.5
33
52
AC/L AC/N
7.5
-V +V +V-V
5 5 5
3.5 1mm±
BOTTOM
VIEW
-V
+V
AC/L
AC/N
5.7
76
87
29.5
