90W AC-DC PCB-Mount Green Power Module

IRM-90 series

IRM - 90

■ Model Encoding

■ Description

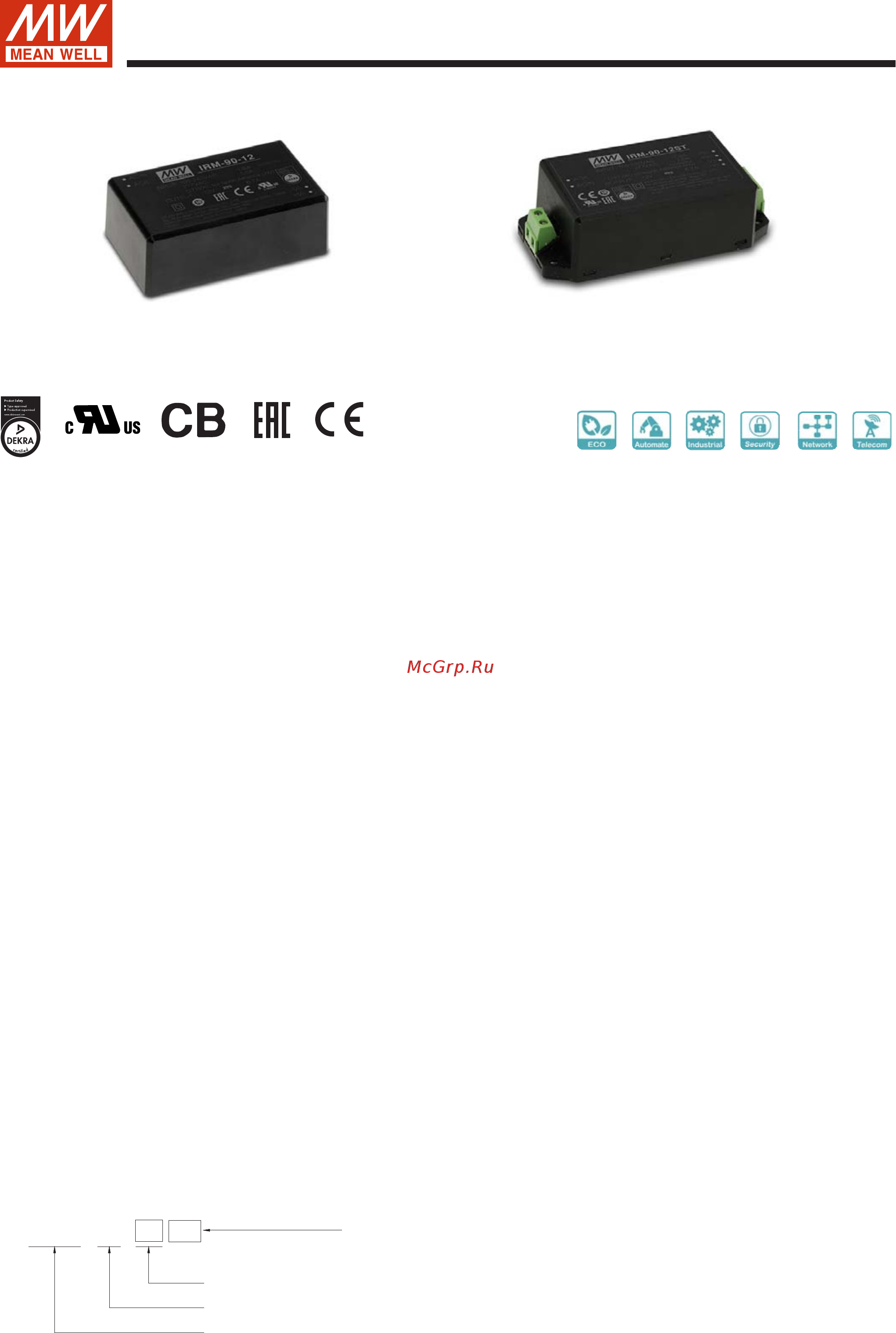

IRM-90 is a 90 miniature (87*52*29.5mm) AC-DC PCB-mount module type power supply, ready to be W

soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments.

This product allows the universal input voltage range of 80~305VAC. The 94V-0 flame retardant plastic case

and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 2~5G anti-vibration

by model; moreover, it provides the fundamental resistance to dust and moisture.

With the high efficiency up to 93% and the extremely low no-load power consumption below 0.21W, IRM-90

series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire

series is a Class design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance Ⅱ

with EN55032 Class B; the supreme EMC features keep the end electronic units from from electromagnetic

interference. In addition to the PCB mounting style model, IRM-90 series also offers the screw terminal

style model (ST).

3.43''x2.05''compact size

PCB,chassis or screw terminal mounting version

Universal input 80~305VAC

No load power consumption<0.21W

EMI EN55032 ClassB without additional components

Wide operating temp. rage -30~80℃

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Isolation Class Ⅱ

Over voltage category Ⅲ

Operating attitude up to 4000 meters (Note.7)

100W peak(10 sec.)

3 years warranty

Industrial electrical equipment

Mechanical equipment

Factory automation equipment

Handheld electronic device

■ Features ■ Applications

Output voltage

Rated wattage

Series name

Blank : PCB mounting style

ST : Screw terminal style

{

File Name:IRM-90-SPEC 2020-10-20

UL62368-1

IEC62368-1

(IRM-90-xxST)(IRM-90)

TPTC004
