MEAN WELL LRS-100-48 Data Sheet онлайн
■ Model Encoding
■ Description
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Miniature size and 1U low profile
Compliance to IEC/EN 60335-1(PD3) and
IEC/EN61558-1, 2-16 for household appliances
Operating altitude up to 5000 meters (Note.7)
Withstand 5G vibration test
LED indicator for power on
No load power consumption<0.3W
Over voltage category Ⅲ
100% full load burn-in test
High operating temperature up to 70℃
High efficiency, long life and high reliability
3 years warranty
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or
apparatus
■ Features ■ Applications

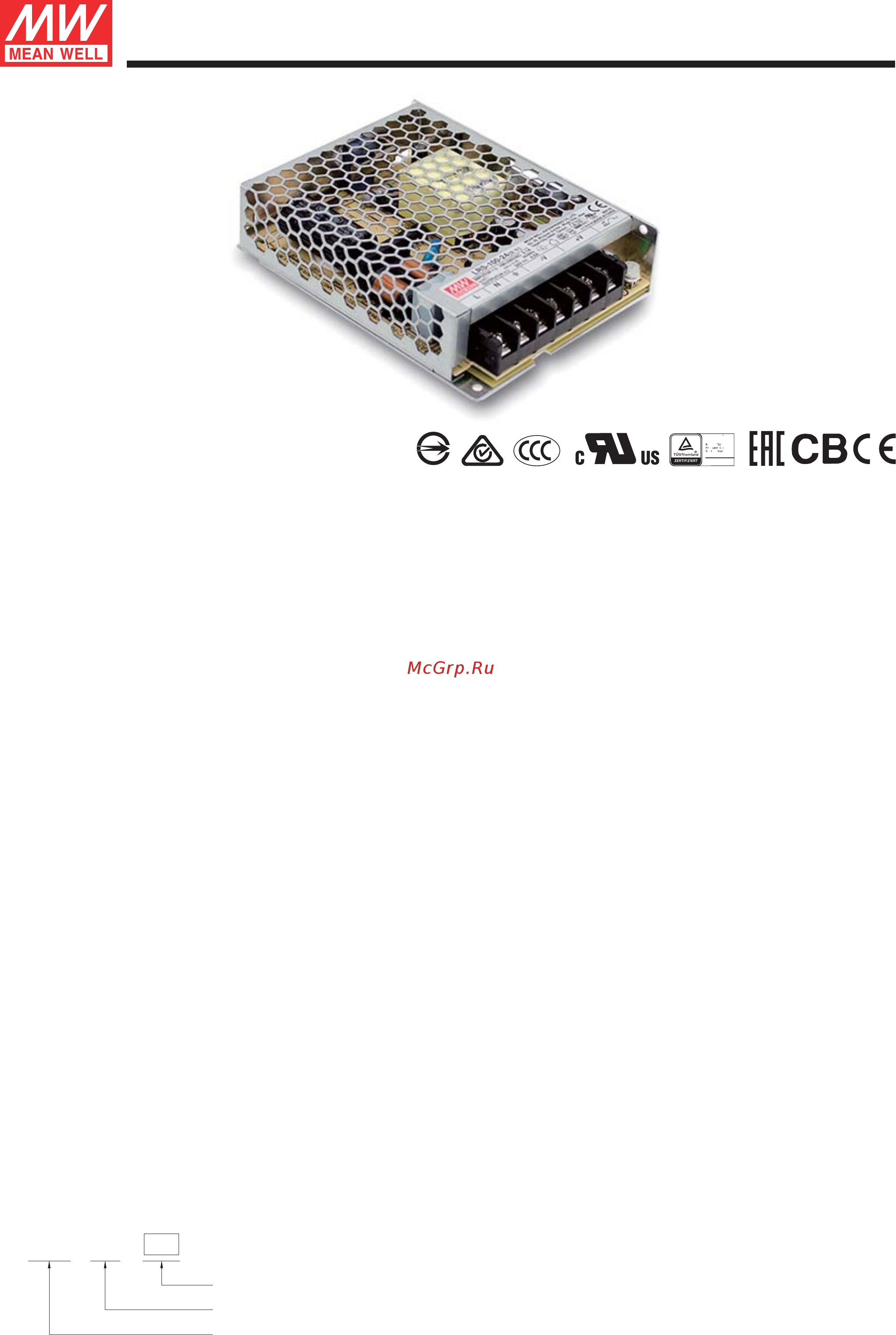

100W Single Output Switching Power Supply
LRS-100 series
Output voltage
Rated wattage
Series name
LRS -- 100 3.3
easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G anti-
LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting
the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V,
24V, 36V and 48V.
In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation
of LRS-100 that the whole series operates from -30 through 70 under air convection without a fan. ℃℃
Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to
vibration capability; it is complied with the international safety regulations such as TUV EN60950-1,
EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-100 series serves as a high price-to-
performance power supply solution for various industrial applications.
Household appliances
File Name:LRS-100-SPEC 2017-12-01
Bauar
Sicherheit
egel gema
tgepruft
od
be
www.
ID 2000000000
tuv.com
wac g
os
S
&
E
R33100
RoHS
