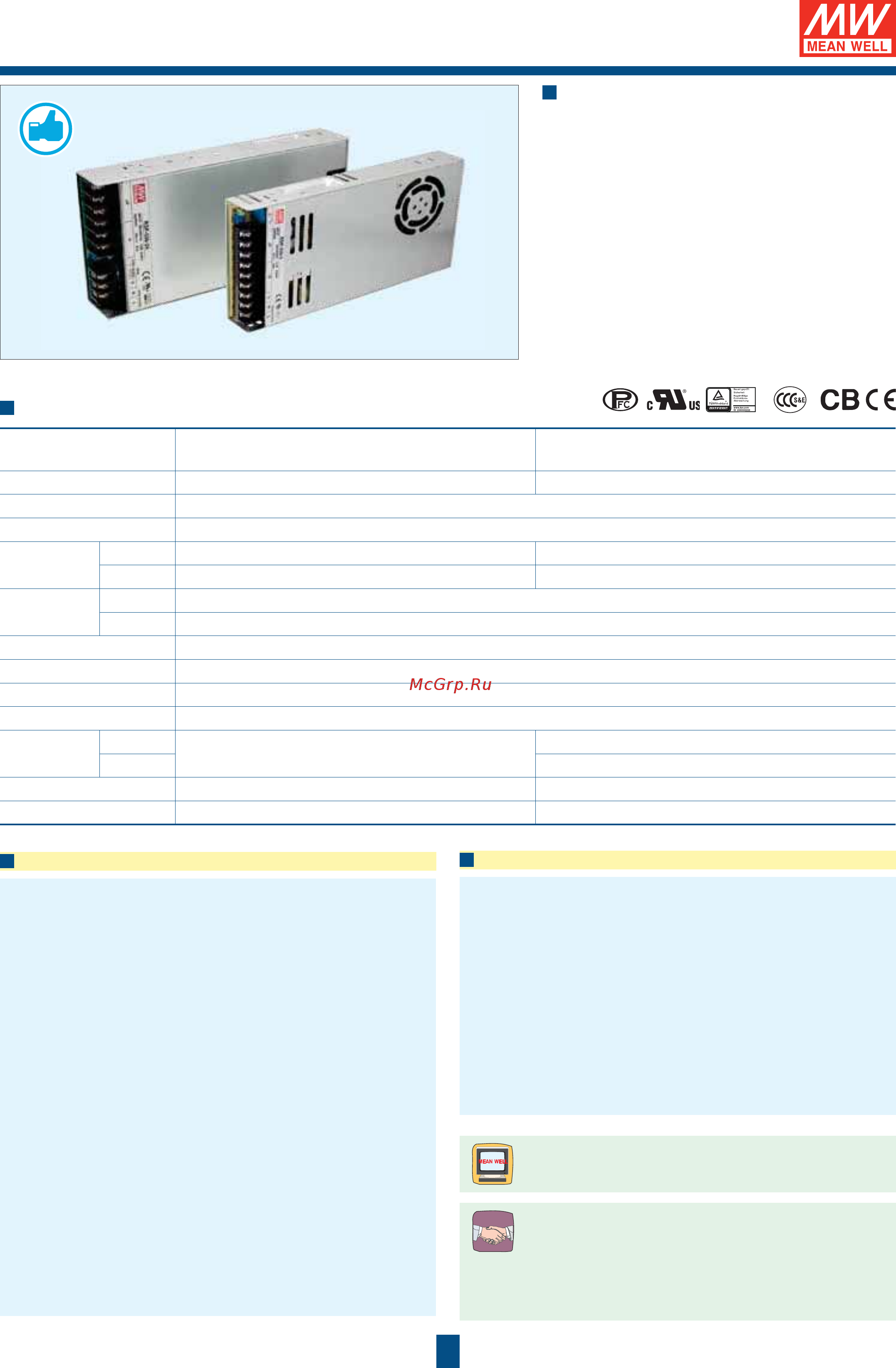

MEAN WELL RSP-3000-24 [13/112] Enclosed pfc
(RSP-320 only)
We provide specification, drawing, test report and more
information, please visit our website —
http://www.meanwell.com
RSP-320RSP-500
10
Model No. Output Tol. R&N Effi.
RSP-320-2.5 2.5V, 0~60A ±2% 100mV 75.5%
RSP-320-3.3 3.3V, 0~60A ±2% 100mV 79.5%
RSP-320-4 4V, 0~60A ±2% 100mV 81.0%
RSP-320-5 5V, 0~60A ±2% 150mV 83.0%
*RSP-320-5CC 5V, 0~60A ±2% 150mV 83.0%
RSP-320-7.5 7.5V, 0~40A ±2% 150mV 88.0%
RSP-320-12 12V, 0~26.7A ±1% 150mV 88.0%
RSP-320-13.5 13.5V, 0~23.8A ±1% 150mV 88.0%
RSP-320-15 15V, 0~21.4A ±1% 150mV 88.5%
RSP-320-24 24V, 0~13.4A ±1% 150mV 89.0%
RSP-320-27 27V, 0~11.9A ±1% 200mV 89.0%
RSP-320-36 36V, 0~8.9A ±1% 220mV 89.5%
RSP-320-48 48V, 0~6.7A ±1% 240mV 90.0%
* RSP-320-5CC with conformal coating is suitable for LED moving
sign applications, MOQ required.
Model No. Output Tol. R&N Effi.
RSP-500-3.3 3.3V, 0~90A ±2% 120mV 81.0%
RSP-500-4 4V, 0~90A ±2% 120mV 83.0%
RSP-500-5 5V, 0~90A ±2% 150mV 84.0%
RSP-500-12 12V, 0~41.7A ±1% 150mV 88.0%
RSP-500-15 15V, 0~33.4A ±1% 150mV 88.0%
RSP-500-24 24V, 0~21A ±1% 150mV 89.0%
RSP-500-27 27V, 0~18.6A ±1% 150mV 89.5%
RSP-500-48 48V, 0~10.5A ±1% 150mV 90.5%
Features
• 1U low profile
• Universal AC input / Full range
• Built-in active PFC function
• Protections: Short circuit / Overload / Over voltage /
Over temperature
• Forced air cooling by built-in DC fan
• Built-in remote sense and ON/OFF control (RSP-500)
• LED indicator for power on
• 3 years warranty
General Specification (Please refer to www.meanwell.com for detail spec.)
320W RSP-320
500W RSP-500
Model No. RSP-320 RSP-500
AC input voltage range 88~264VAC; 124~370VDC 85~264VAC; 120~370VDC
AC inrush current(max.) Cold start, 40A at 230VAC
DC adjustment range Vo: ±10% by potentiometer
Overload
protection
Range 105%~135% 105%~130%
Type Hiccup mode, auto-recovery Constant current limiting, auto-recovery
Over voltage
protection
Range 115%~145%
Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved; CCC GB4943 approved for RSP-320 only
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(RSP-500), GB9254(RSP-320 only)
Connection
Input
9P / 9.5mm pitch terminal block
3P / 9.5mm pitch terminal block
Output 6P / 11mm pitch terminal block
Dimension (LxWxH) (mm) 215x115x30 230x127x40.5
Case No. 207A 226A
Best products also need best service.
We have authorized distributors all over the world. They have
sufficient stock for your prompt delivery. Also, they can offer
you technical support & RMA services. Please contact your
local distributors for more product information. You can also
contact us at
info@meanwell.com for information of your local
distributors.
Enclosed-PFC
320~500W Low Profile
