Hardware Installation - 12 -

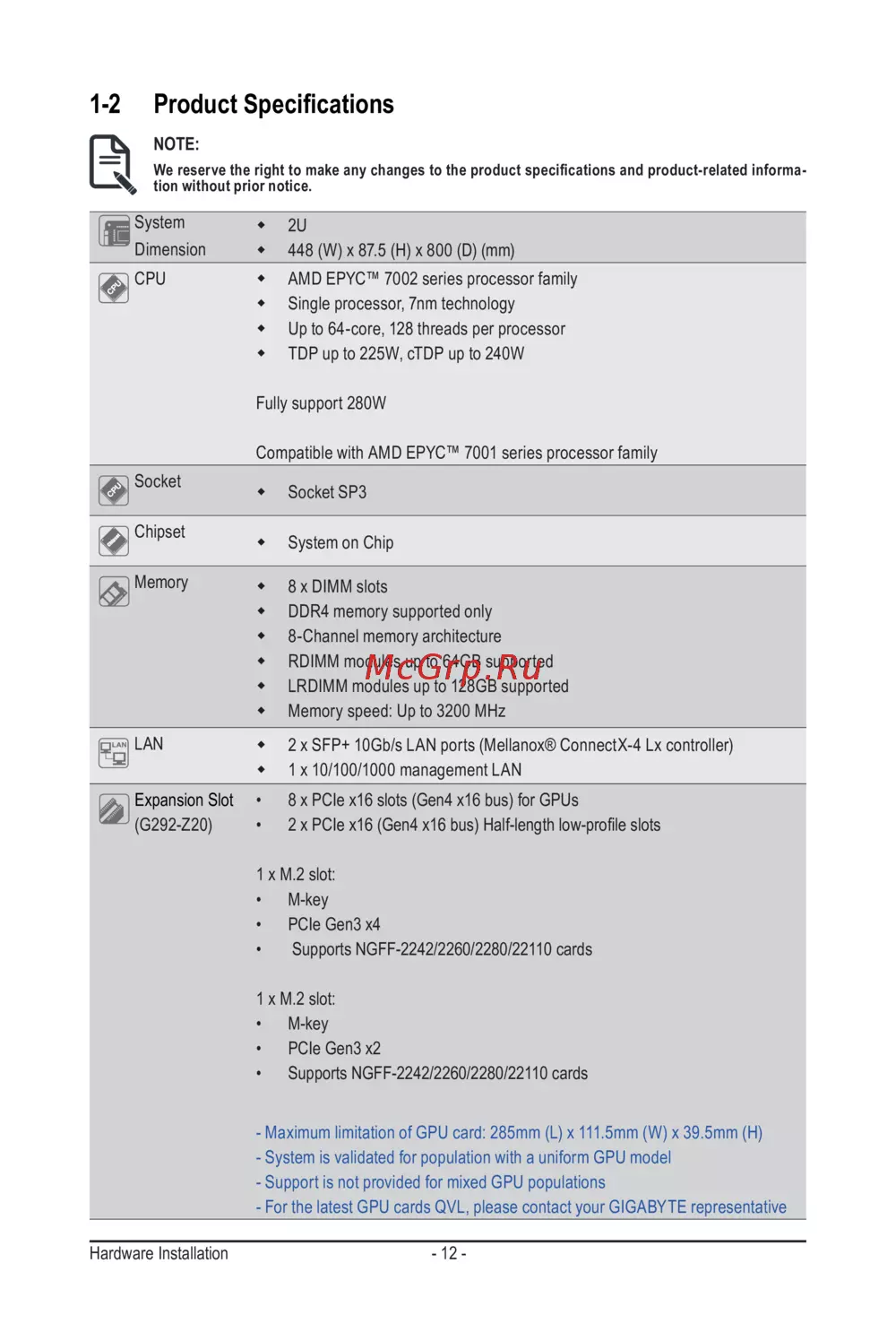

1-2 Product Specications
System
Dimension
2U
448 (W) x 87.5 (H) x 800 (D) (mm)
CPU AMD EPYC™ 7002 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
Compatible with AMD EPYC™ 7001 series processor family
Socket
Socket SP3
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
LAN
2 x SFP+ 10Gb/s LAN ports (Mellanox® ConnectX-4 Lx controller)
1 x 10/100/1000 management LAN
Expansion Slot
(G292-Z20)
• 8 x PCIe x16 slots (Gen4 x16 bus) for GPUs
• 2 x PCIe x16 (Gen4 x16 bus) Half-length low-prole slots
1 x M.2 slot:
• M-key
• PCIe Gen3 x4
• Supports NGFF-2242/2260/2280/22110 cards
1 x M.2 slot:
• M-key
• PCIe Gen3 x2
• Supports NGFF-2242/2260/2280/22110 cards
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
NOTE:
We reserve the right to make any changes to the product specications and product-related informa-
tion without prior notice.
