58/62
INSTALLATIONS NOTES
Water filter The installation of the filter is mandatory. Reccomended maximum mesh size is equal to 1.0 mm.
Water filter has to be installed as close as possible to the chiller. If the chiller is installed in a different part of the
hydraulic system, the installed must ensure the cleaning of the water pipes between water filter and evaporator. The
pressure drop value showed in CSS (Chiller Selection Software) are referred to chiller’s evaporator only. For EWAT~B
the water filter is available as option on request (shipped loose).

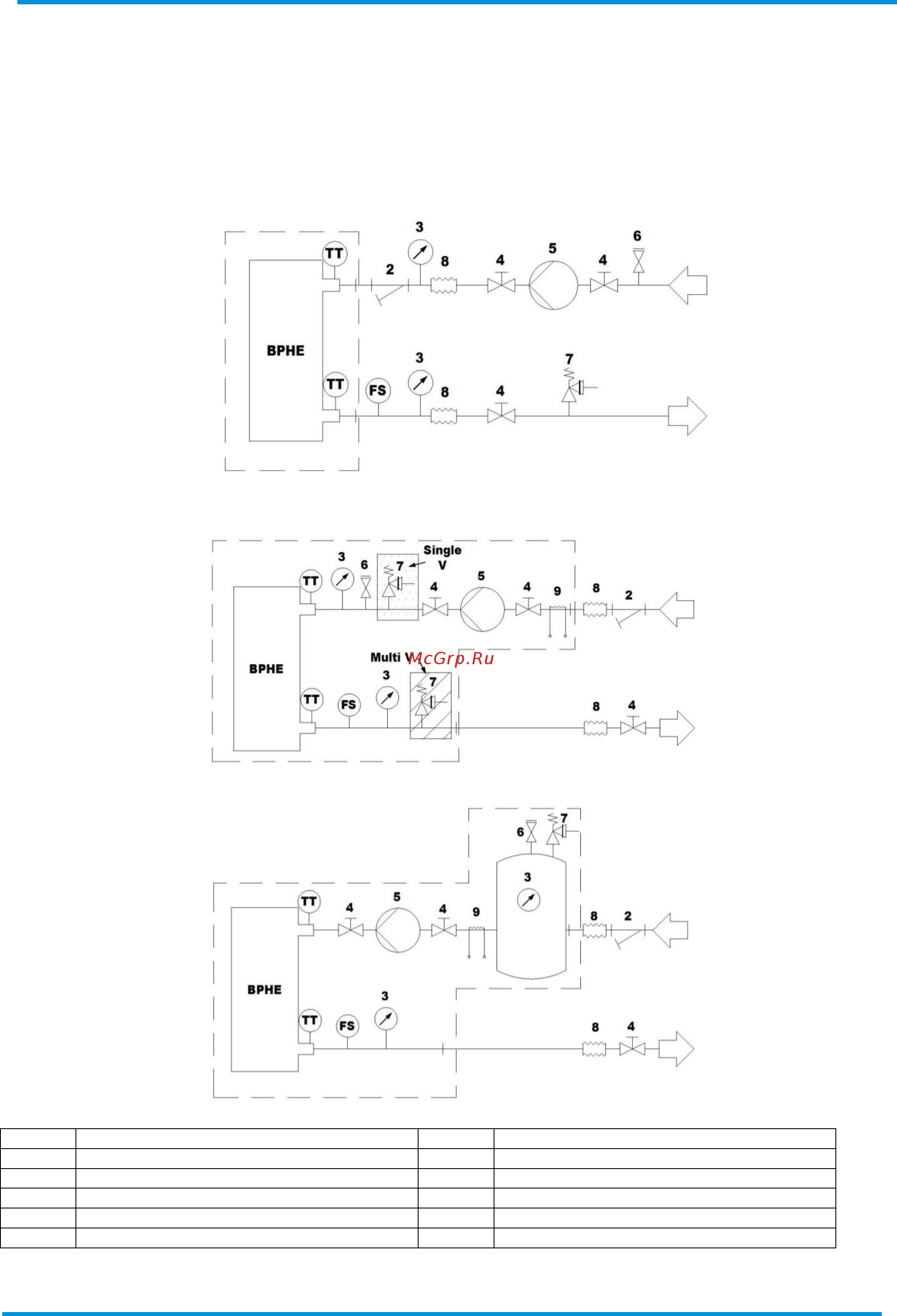

Hydraulic schemes
-
Hydraulic scheme of the standard unit (max operating pressure 20bar)
-
Hydraulic scheme of the unit with pump(s) (max operating pressure 6bar)
-
Hydraulic scheme of the unit with pump(s) and tank (max operating pressure 6bar)
BPHE
Brazed plates heat exchanger
5
Pump (or pumps)
FS
Flowswitch
6
Filling group
TT
Temperature sensor
7
Safety valve (Pt = 6 bar)
2
Water filter
8
Anti-vibration joint
3
Pressure gauge
9
Electric heater
4
Shut-off valve
