Pre-Test Run Checks ESiE04-03
4–16 Part 4 – Commissioning and Test Run
3
1
4
5
1.8 Static Pressure of the Pump for EUWA*5-24KAZW1 and EUWY*5-24KAZW1

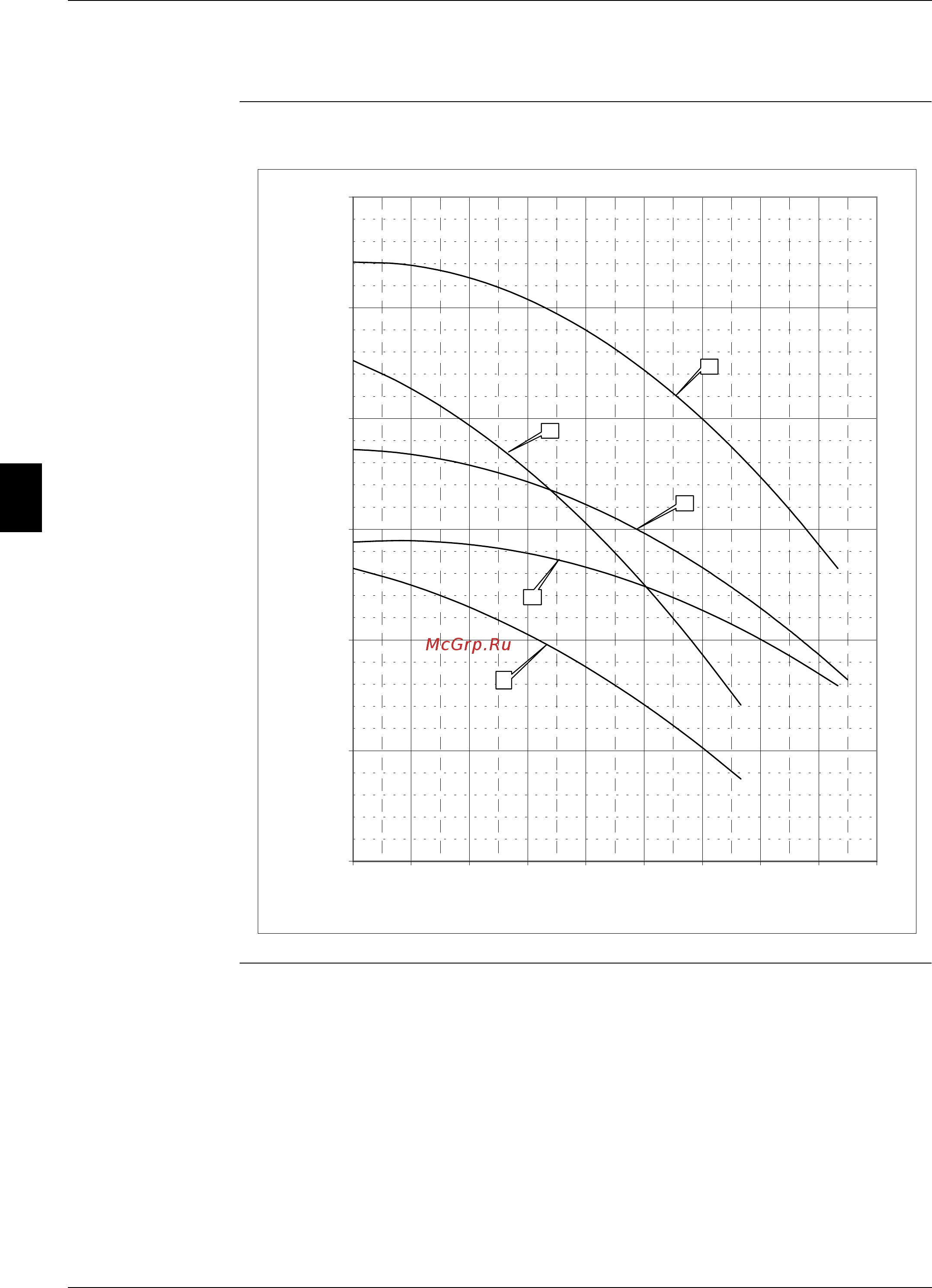

Static pressure The illustration below shows the static pressure of the pump depending on the water flow and the
pump type.
0,00
100,00
200,00
300,00
400,00
500,00
600,00
0,00 20,00 40,00 60,00 80,00 100,00 120,00 140,00 160,00 180,00
WF [l/min]
SP [kPa]
3
2
1
4
5
