7
Deutsch
Montage
(am Beispiel InCeiling)

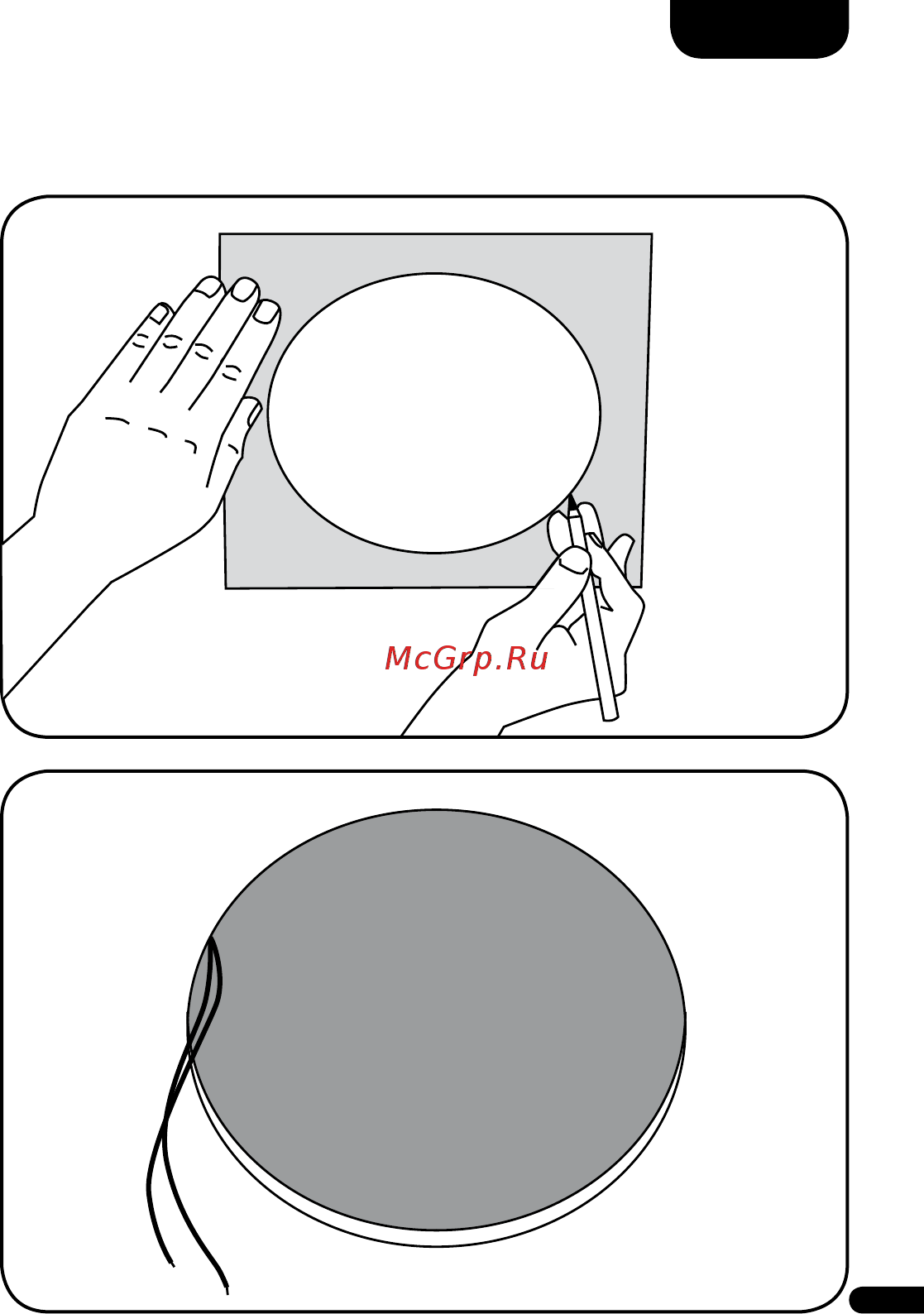

Benutzen Sie die beigefügte Einbauschablone, um
die genaue Größe des Ausschnittes festzulegen. Der
Innenrand der Schablone gibt die Größe der Einbau-
öffnung vor.
Beim Verlegen der Lautsprecherkabel vom Verstärker
zum Einbauort ist zu beachten, dass die Kabelenden
etwa 30 cm über den Wandausschnitt hinausragen.
