Daikin EUW(*)60КХ [19/40] Piping diagrams
![Daikin EUW(*)60КХ [19/40] Piping diagrams](/views2/1685124/page19/bg13.png)
7

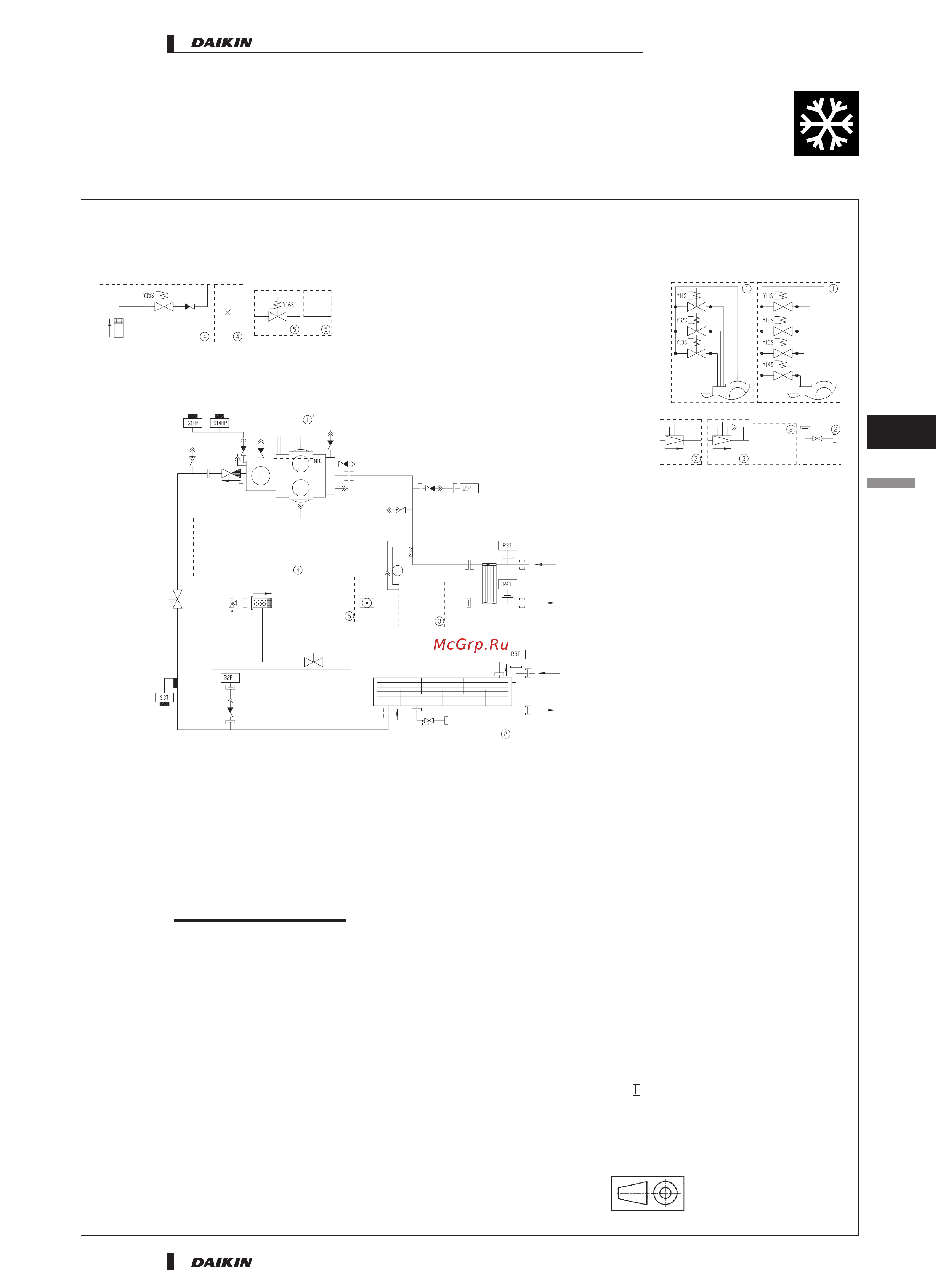

Piping diagrams
3TW51565-1B
O Check valve
L Flare connection
M Screw connection
N Flange connection
Z Pinched pipe
Flexible connection
P Spinned pipe
EUW*40-100KX
M1C Compressor motor 1
S1HP High pressure switch
S14HP High pressure switch
S3T Discharge temperature controller
R3T Inlet water evap. temp. sensor
R4T Outlet water evap. temp. sensor
R5T Inlet water cond. temp. sensor
B1P Low pressure transmitter
B2P High pressure transmitter
Y11S Unloader solenoid valve
Y12S Unloader solenoid valve
Y13S Unloader solenoid valve
Y14S Unloader solenoid valve
Y15S Liquid injection solenoid valve
Y16S Liquid line solenoid valve
Water OUT
Condenser
Water IN
Stop valve
Strainer
Water OUT
Safety valve
19 bar
Evaporator
Discharge stop valve
Sight glass with moist
indicator
Water IN
Charge valve
Drier
only 40-60HP only 80-100HP
only 40-60HP only 80-100HP
only 40-60HP only 80-100HP
Expansion
valve
Expansion
valve
Safety valve
19 bar
Only for ZH, ZL & OP01 Standard
Only for ZH, ZL
& OP01 Standard
•
Water-cooled • R-134a • EUW*40-200KX
6
7
199
• Hydronic Systems • Chillers
