MEAN WELL ELG-240-36B-3Y [5/11] Elg 24

※ DAL Interface (primary side; for DA-Type)I

Apply DALI signal between DA+ and DA-.

DAL protocol comprises 16 groups and 64 addresses. I

First step is fixed at 8% of output.

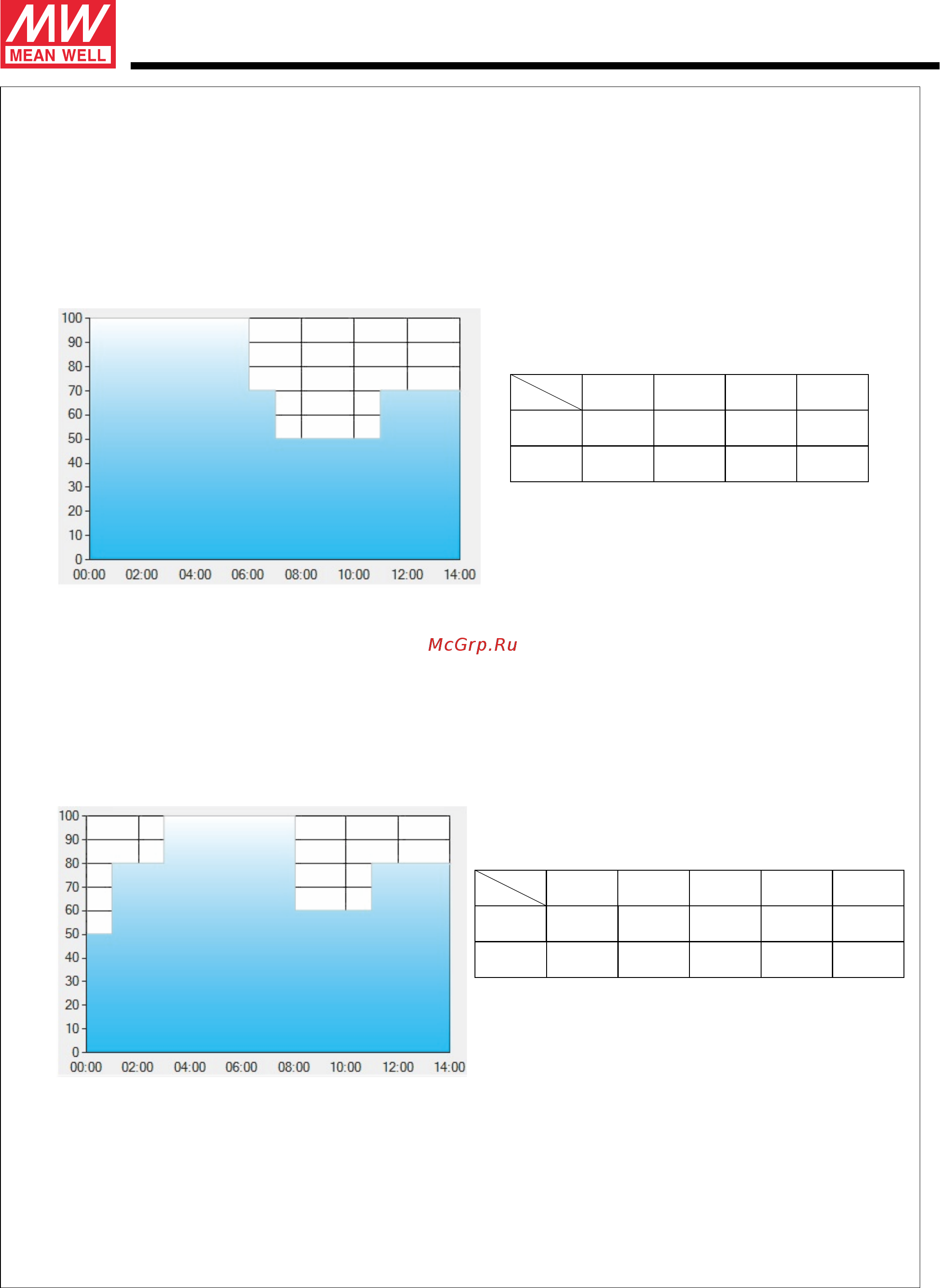

※ Smart timer dimming function (for Dxx-Type by User definition)

MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level to perform up to 14

consecutive hours. 3 dimming profiles hereunder are defined accounting for the most frequently seen applications. If other options may be needed,

please contact MEAN WELL for details.

Ex : D01-Type: the profile recommended for residential lighting◎

[4] The power supply will switch to the constant current level at 70% in turn, starting from 5:00am, which is 11:00 after the power supply turns on.

The constant current level remains till 8:00am, which is 14:00 after the power supply turns on.

**: TIME matches Operating Time in the diagram whereas LEVEL matches Dimming Level.

Example: If a street lighting application adopts D02-Type, when turning on the power supply at 5:00pm, for instance:

[1] The power supply will switch to the constant current level at 50% starting from 5:00pm.

[2] The power supply will switch to the constant current level at 80% in turn, starting from 6:00pm, which is 01:00 after the power supply turns on.

[3] The power supply will switch to the constant current level at 100% in turn, starting from 8:00pm, which is 03:00 after the power supply turns on.

[4] The power supply will switch to the constant current level at 60% in turn, starting from 1:00am, which is 08:00 after the power supply turns on.

[5] The power supply will switch to the constant current level at 80% in turn, starting from 4:00am, which is 11:00 after the power supply turns on. The

constant current level remains till 6:30am, which is 14:00 after the power supply turns on.

LEVEL**

LEVEL**

100% 70%

80%50%

50%

100%

Dimming Level(%)

ELG-240 series

File Name:ELG-240-SPEC 2018-09-30
