INPUT
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
ACL
Vo
-
DIM
-
DIM+
Vo+
Vo
-
ACN
FG
Vo
+
51

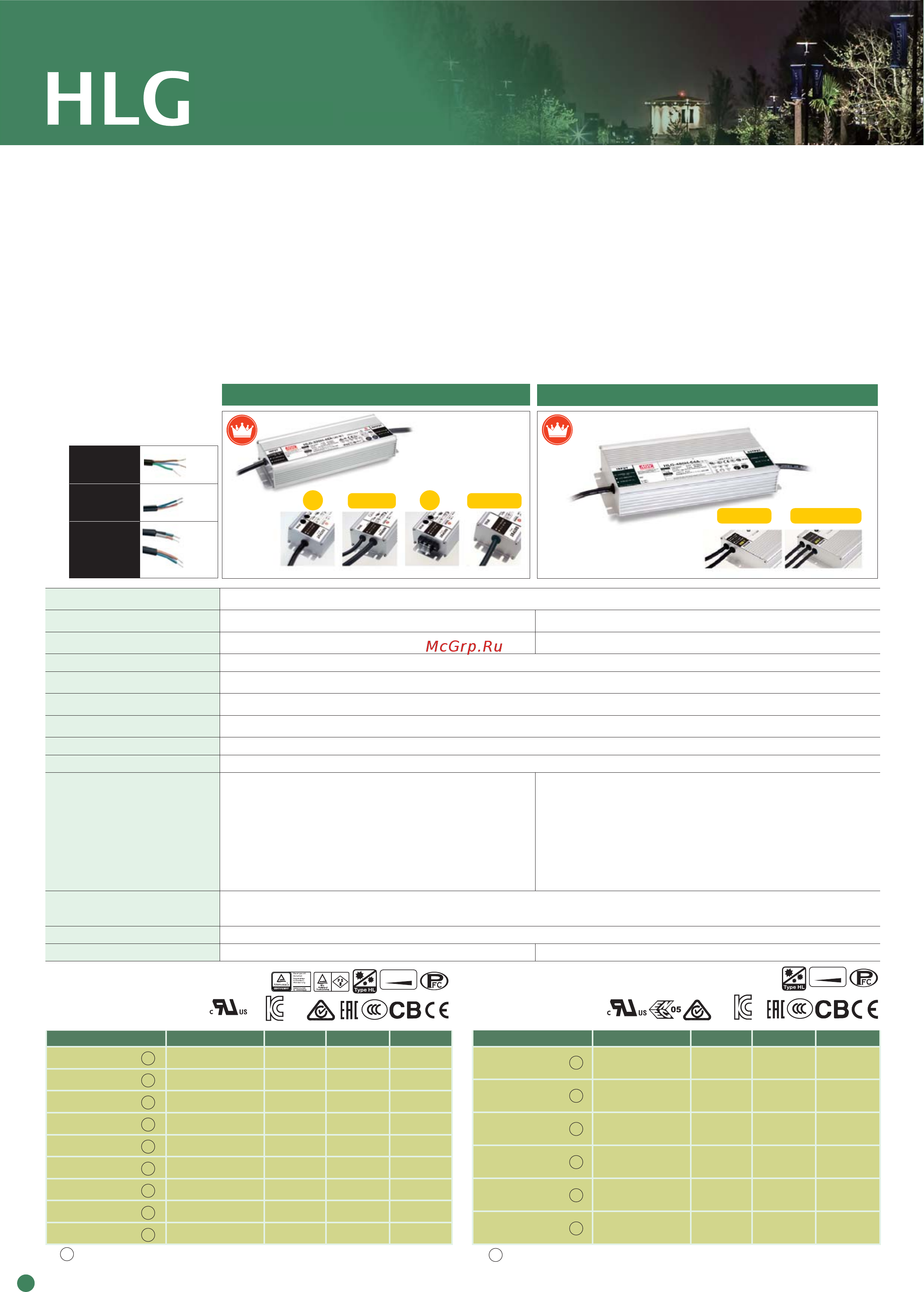

HLG-320H
HLG-480H
Features
• Constant voltage+constant current modes
• Universal AC input (90 to 305VAC) / Full range
• Meet 4kV surge immunity level (IEC61000-4-5)
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires
• Suitable for outdoor LED lighting applications
• Protections:
Short circuit / Over current / Over voltage / Over temp.
• 7 years warranty
• Multiple models for choice:
Blank-Type:
IP67 rated. Cable for I/O connection(For harsh environment)
A-Type: IP65 rated. Io and Vo adjustable through built-in potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (1~10Vdc (for HLG-320H),
0~10V (for HLG-480H) , 10V PWM signal and resistance)
AB-Type: IP65 rated. Io adjustable and Vo (for HLG-480H only)
through built-in potentiometer & 3 in 1 dimming function.
C-Type: Terminal block for I/O connection (HLG-320H only)
D-Type(option): IP67 rated. Timer dimming function, contact
MEAN WELL for details (HLG-320H only)
D2-Type(option): IP67 rated.
Smart timer dimming function*
(HLG-480H only)
Model No. Output Tol. R&N Effi.
HLG-320H-12 A 12V, 0~22.0A ±3.0% 150mV 91.0%
HLG-320H-15 A 15V, 0~19.0A ±2.0% 150mV 92.5%
HLG-320H-20 A 20V, 0~15.0A ±1.5% 150mV 93.5%
HLG-320H-24 A 24V, 0~13.34A ±1.0% 150mV 94.0%
HLG-320H-30 A 30V, 0~10.7A ±1.0% 200mV 94.0%
HLG-320H-36 A 36V, 0~8.90A ±1.0% 250mV 94.5%
HLG-320H-42 A 42V, 0~7.65A ±1.0% 250mV 95.0%
HLG-320H-48 A 48V, 0~6.70A ±1.0% 250mV 95.0%
HLG-320H-54 A 54V, 0~5.95A ±1.0% 350mV 95.0%
= A, B, AB, C, D or Blank
Model No. Output Tol. R&N Effi.
HLG-480H-24 A 24V, 0~20A ±1.0% 200mV 94.0%
HLG-480H-30 A 30V, 0~16A ±1.0% 200mV 94.5%
HLG-480H-36 A 36V, 0~13.3A ±1.0% 250mV 95.0%
HLG-480H-42 A 42V, 0~11.4A ±1.0% 250mV 95.0%
HLG-480H-48 A 48V, 0~10A ±1.0% 250mV 94.5%
HLG-480H-54 A 54V, 0~8.9A ±1.0% 350mV 95.0%
= A, B, AB, D2 or Blank
HLG-320H Series
HLG-480H Series
Blank / D
Blank / A
B / AB / D2
AC input voltage range 90~305VAC; 127~431VDC
AC inrush current (max.) Cold start, 70A at 230VAC Cold start, 35A at 230VAC
DC adjustment range -15%~+13.3% rated output voltage (A-Type & C-Type) -15%~+5% rated output voltage (A-Type only)
Current adjustment range 50%~100% via potentiometer (A-Type & HLG-320H C-Type only)
Over current protection 95%~108% constant current limiting, auto- recovery
Over voltage protection 110%~140% rated output voltage
Setup, rise, hold up time 500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature
-40~+90
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750(type“HL”), CSA C22.2 No. 250.0-08; EN/AS/
NZS 61347-1, EN/AS/NZS 61347-2-13, EN62384 in
dependent;GB19510.1,GB19510.14; IP65 or IP67
(except for HLG-320H C-type); J61347-1, J61347-
2-13 (except for HLG-320H C-type),EAC TP TC
004;KC61347-1, KC61347-2-13(except for AB,C-
type) approved
UL8750(type”HL”), CSA C22.2 No. 250.13-12;
ENEC EN61347-1, EN61347-2-13 independent,
EN62384; GB19510.14,GB19510.1;IP65 or IP67, EAC
TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS
61347.1:2016;KC61347-1,KC61347-2-13(except for
AB,Dx,D2-type) approved
EMC standards
EN55015, EN55032 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547,
GB17743, GB17625.1, EAC TP TC 020,KC KN15,KN61547(except for AB,Dx,D2-type)
Connection Please refer to page 64
Dimension (LxWxH)(mm) 252x 90x 43.8 262x 125x 43.8
A
C
(AB/B-Type)
(AB/B-Type)
1-10VDC
0-10VDC
*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.
se
ri
es
320~480
W
B / AB
Type HL
(except for AB, C-type)
(except for AB, D, D2-type)
Type HL
(optional)
