12

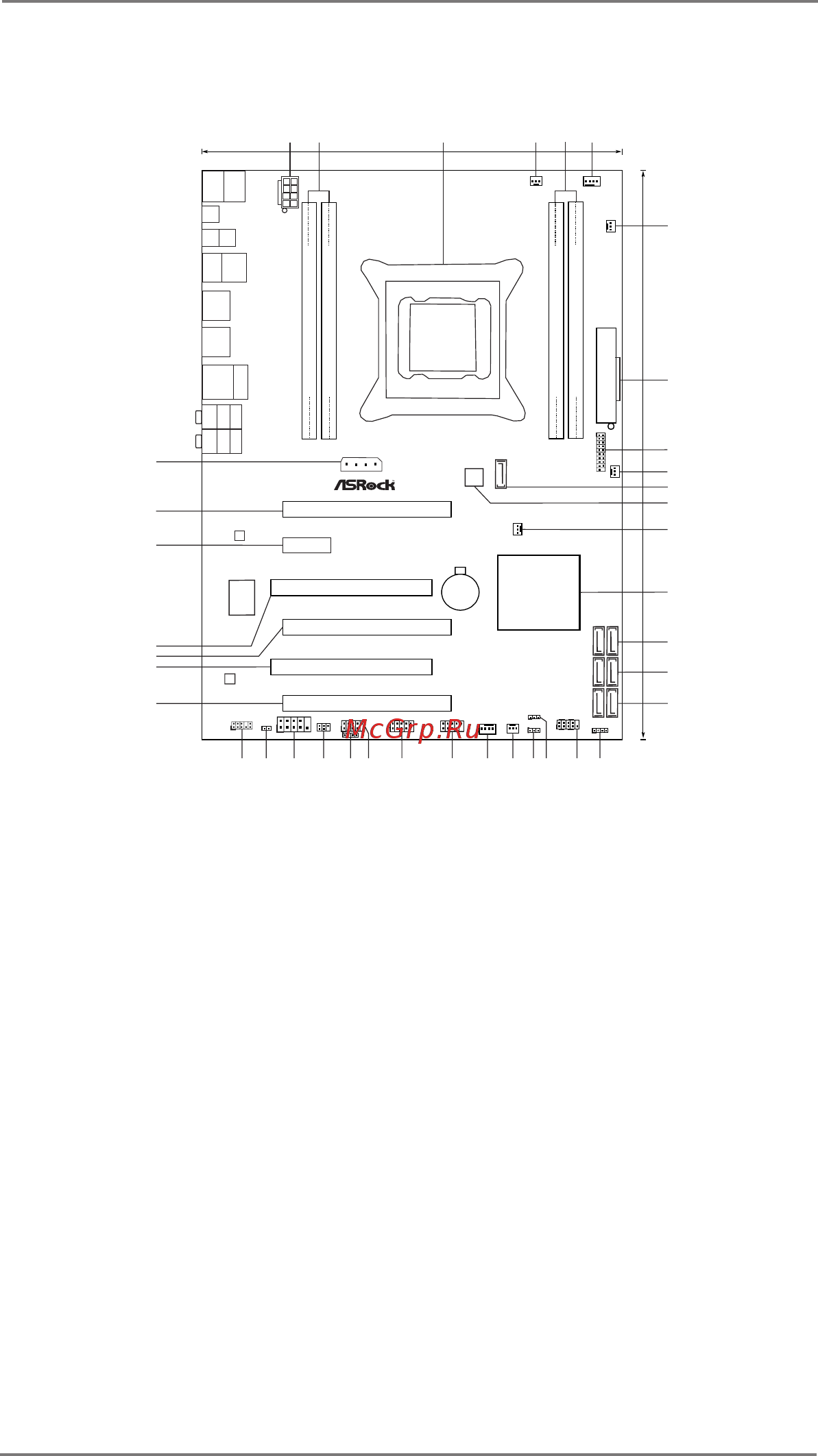

1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 21 Clear CMOS Jumper (CLRCMOS1)
2 2 x 240-pin DDR3 DIMM Slots 22 Chassis Fan Connector (CHA_FAN3)
(DDR3_A1, DDR3_B1, Black) 23 Chassis Fan Connector (CHA_FAN1)
3 2011-Pin CPU Socket 24 USB 2.0 Header (USB_10_11, Black)
4 CPU Fan Connector (CPU_FAN2) 25 USB 2.0 Header (USB_8_9, Black)
5 2 x 240-pin DDR3 DIMM Slots 26 USB 2.0 Header (USB_6_7, Black)
(DDR3_D1, DDR3_C1, Black) 27 Consumer Infrared Module Header
6 CPU Fan Connector (CPU_FAN1) (CIR1, Gray)
7 Power Fan Connector (PWR_FAN1) 28 Infrared Module Header (IR1)
8 ATX Power Connector (ATXPWR1) 29 COM Port Header (COM1)
9 USB 3.0 Header (USB3_2_3, Black) 30 HDMI_SPDIF Header
10 Chassis Fan Connector (CHA_FAN2) (HDMI_SPDIF1, Black)
11 SATA3 Connector (SATA3_A0, Gray) 31 Front Panel Audio Header
12 SPI Flash Memory (64Mb) (HD_AUDIO1, Black)
13 SB Fan Connector (SB_FAN1) 32 PCI Express 3.0 x16 Slot (PCIE4, Black)
14 Intel X79 Chipset 33 PCI Slot (PCI2, Black)
15 SATA3 Connectors (SATA3_0_1, Gray) 34 PCI Express 3.0 x16 Slot (PCIE3, Black)
16 SATA2 Connectors (SATA2_0_1, Black) 35 PCI Slot (PCI1, Black)
17 SATA2 Connectors (SATA2_2_3, Black) 36 PCI Express 2.0 x1 Slot (PCIE2, Black)
18 Chassis Speaker Header (SPEAKER1, Black) 37 PCI Express 3.0 x16 Slot (PCIE1, Black)
19 System Panel Header (PANEL1, Black) 38 SLI / XFIRE Power Connector
20 Power LED Header (PLED1)
Intel
X79
PCIE1
PCI1
CMOS
Battery
SATA3_0 _1
SATA2_0 _1
SATA2_2 _3
22.4cm (8.8 in)
30.5cm (12.0 in)
SB_FAN1
PCIE3
PCIE4
PCI2
PCIE2
SLI/XFIRE_PWR1
X79 Extreme3
Sup er
I/O
64Mb
BIOS
DDR3_ A1 (6 4 bit , 240 -pi n modul e)
DDR3_ B1 (6 4 bit , 240 -pi n modul e)
DDR3_ C1 (6 4 bit , 240 -pi n modul e)
DDR3_ D1 (6 4 bit , 240 -pi n modul e)
ATXPWR1
ATX12V1
AUDIO
CODEC
LAN
PHY
PS2
Mou se
PS2
Key board
Clr
CMOS
Coaxial
SPDIF
Optical
SPDIF
USB 2.0
T: USB0
B: USB1
eSATA3
USB 2.0
T: USB2
B: USB3
USB 3.0
T: USB3_0
B: USB3_1
Top:
RJ-45
USB 2.0
T: USB4
B: USB5
Top:
SIDE S PK
Cent er:
REAR S PK
Bott om:
CTR BA SS
Top:
LINE I N
Cent er:
FRON T
Bott om:
MIC IN
SATA3_A 0
1
USB3 _2_3
CPU_FAN2
CPU_FAN1
PWR_FAN1
CHA_FAN2
CHA_FAN1
1
SPEAKER1
PLED1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
CHA_FAN3
CLRCMOS1
1
USB_10_11
1
USB_8_9
1
USB_6_7
1
CIR1
1
IR1
1
COM1
1
1
HDMI_SPDIF1
1
HD_AUDIO1
RoHS
PCI Express 3.0 Ready
3-Way SLI
ErP/EuPReady
XF ast USB
XF ast LAN
USB 3.0
SATA3 6Gb/s
Front USB 3.0
4 Channels DD R3
DDR3 2400+
Designed in Taipei
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
36
35
37
38
