25
English
H410M-ITX/ac

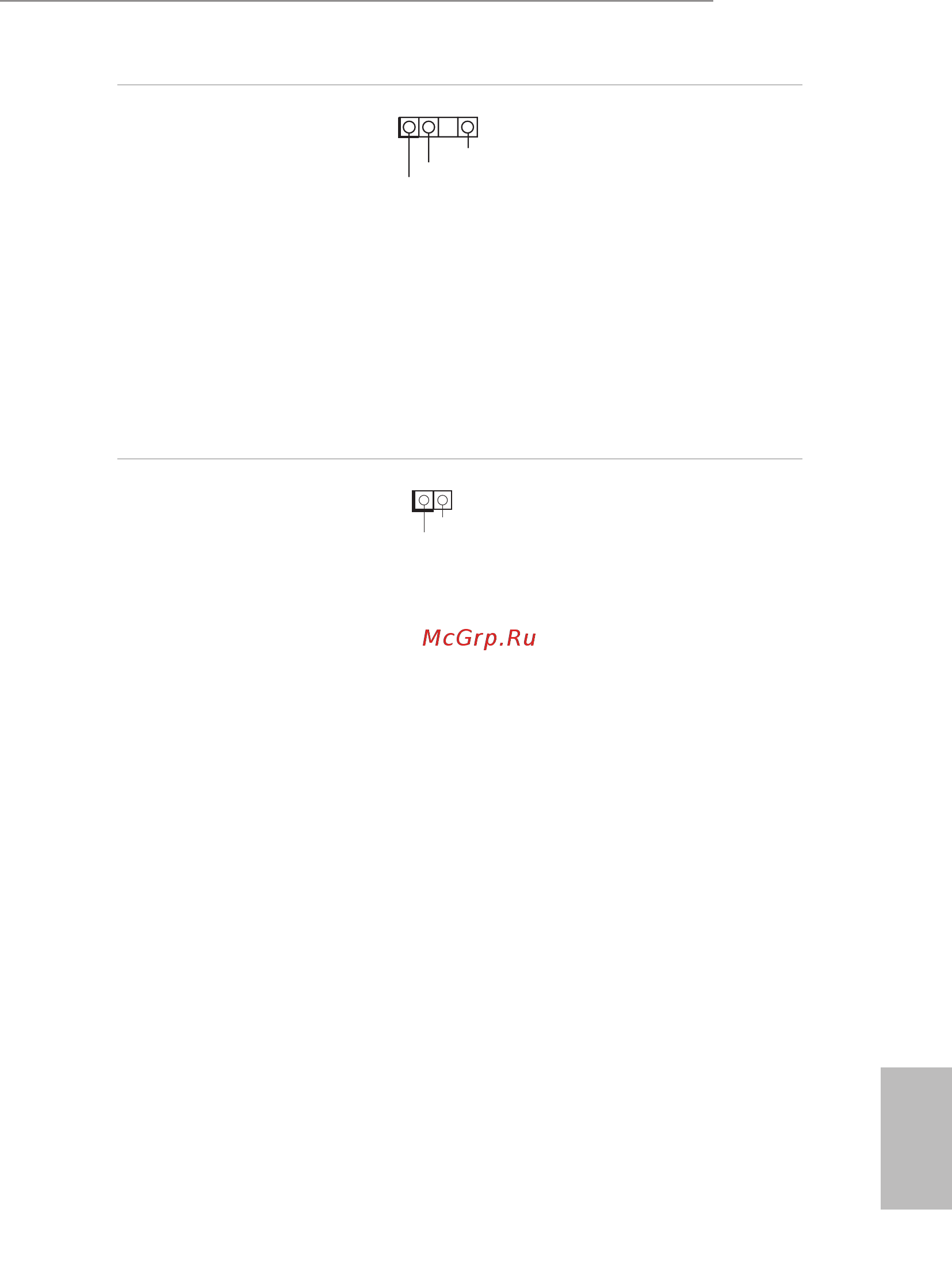

Addressable LED Header
(3-pin ADDR_LED1)
(see p.6, No. 5)
is header is used to connect
Addressable
LED extension cable
which allows users to choose
from various LED lighting
eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
* Please refer to page 41 for
further instructions on this
header.
Chassis Intrusion Header
(2-pin CI1)
(see p.6, No. 18)
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
VOUT
DO_ADDR
GND
1
1
Signal
GND
