English
8

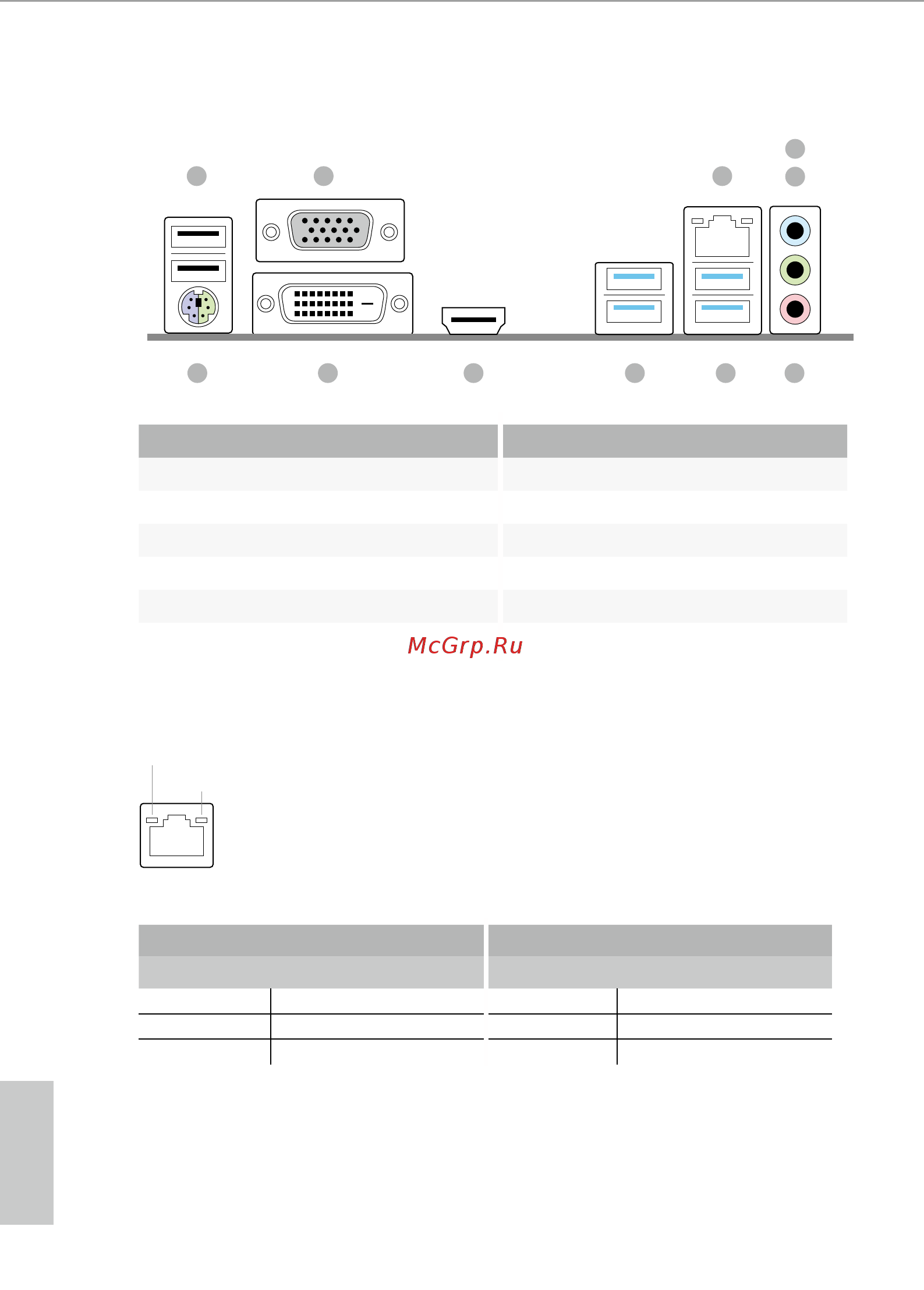

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 7 USB 3.1 Gen2 Ports (USB5_6)
2 D-Sub Port 8 USB 3.1 Gen2 Ports (USB_3_4)
3 LAN RJ-45 Port* 9 HDMI Port
4 Line In (Light Blue)** 10 DVI-D Port
5 Front Speaker (Lime)** 11 PS/2 Keyboard/Mouse Port
6 Microphone (Pink)**
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
6
5
4
11
79
10
1 2 3
8
