8
English

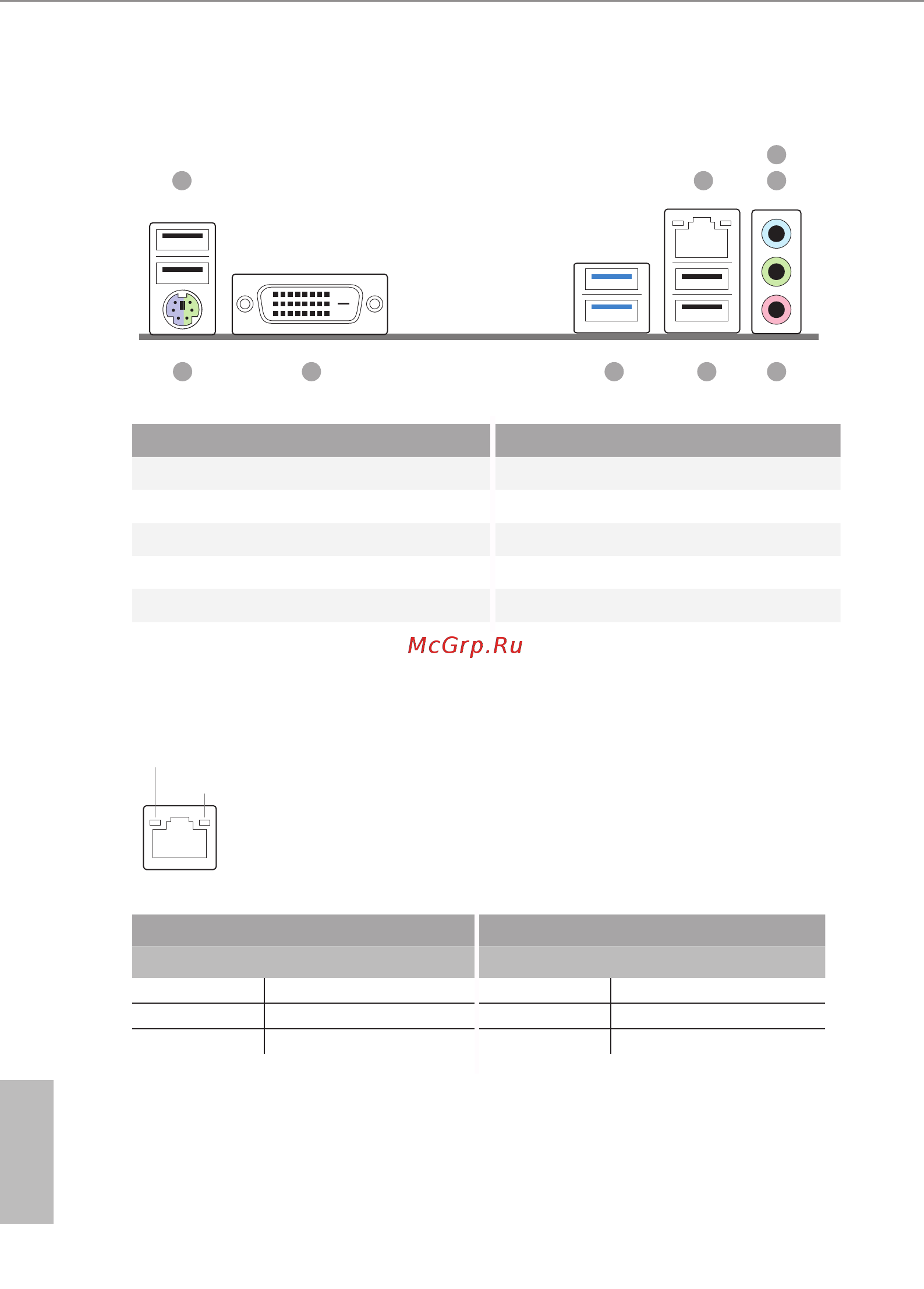

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB_12)*** 6 USB 2.0 Ports (USB_56)***
2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB_34)***
3 Line In (Light Blue)** 8 DVI-D Port
4 Front Speaker (Lime)** 9 PS/2 Keyboard/Mouse Port
5 Microphone (Pink)**
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
9 56
8
4
3
1 2
7
