30
English

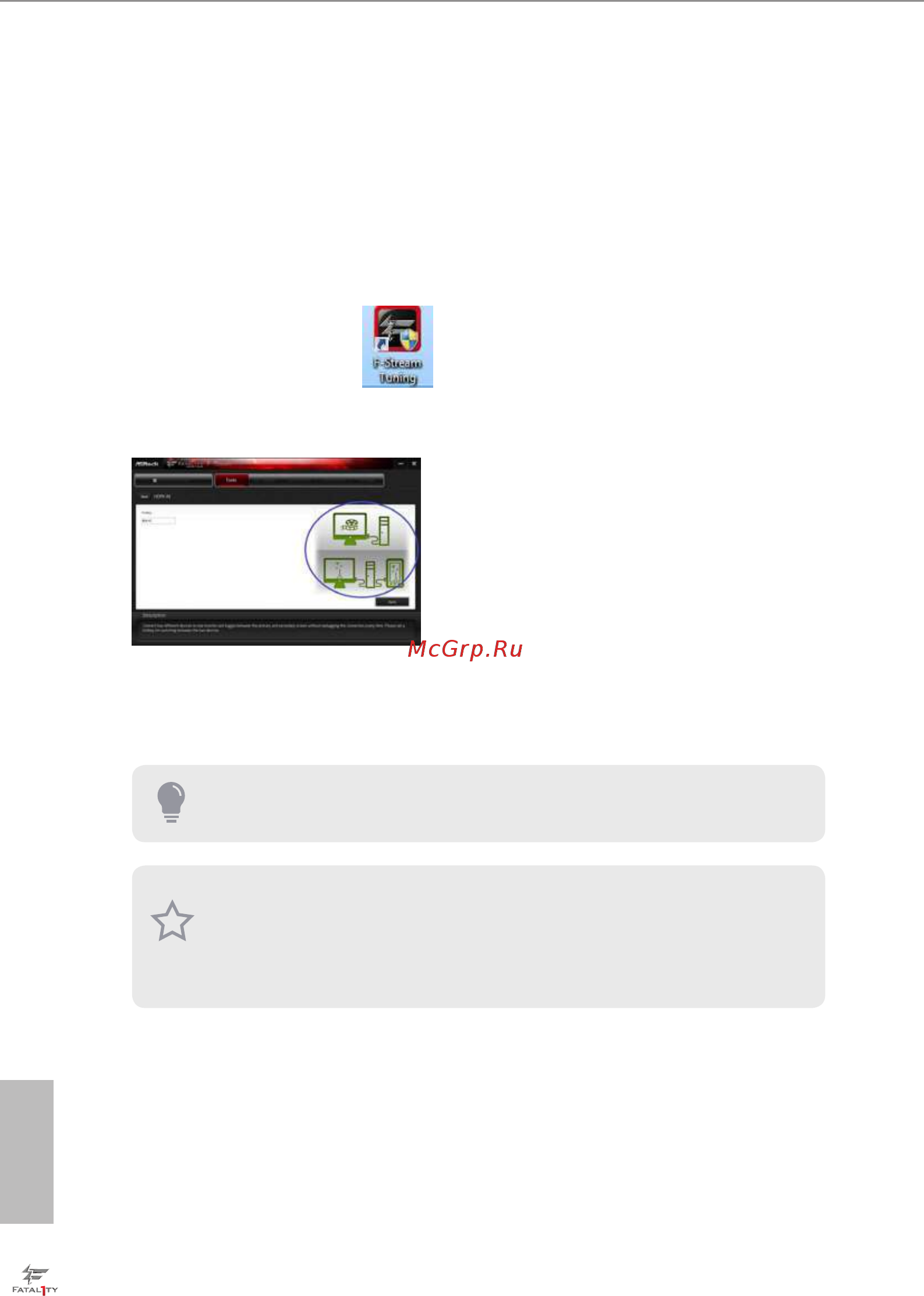

Step 1
Connect your monitor to the HDMI-Out port on the motherboard via an HDMI
cable.
Step 2
Connect an external devices with HDMI output to the HDMI-In port on the
motherboard via an HDMI cable.
Step 3
Double-click the “F-Stream“ icon on the desktop and nd "HDMI-IN"
function in "Tools" tab.
Drag the switch right or le to enable Onboard (on-board PC screen) or HDMI
(HDMI-In Source).
or
Use the hotkey to switch between on-board PC screen or HDMI-In Source.
To change the hotkey, click the textbox next to “Hotkey:” and enter the action for the
key.
1. If there is no video displayed on your monitor, make sure that the cables are
properly connected and make sure that “Deep S5” option in BIOS SETUP is set to
[Disable].
2. If required, connect a power source to the adapter that lets the smartphone/tablet
output HDMI signal.
