2.8.1.2 Installing Three CrossFireX
TM
-Ready Graphics Cards

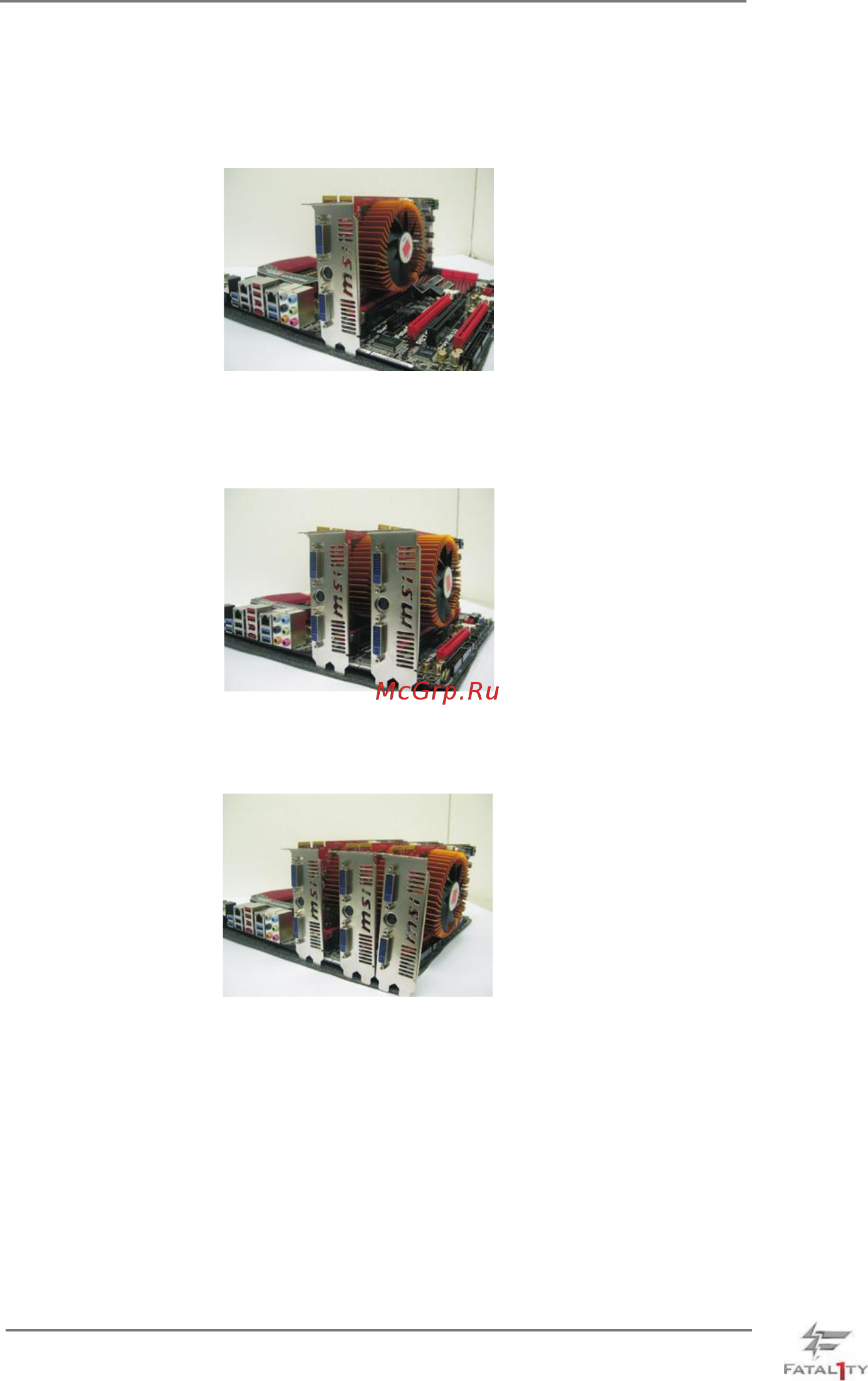

Step 1. Install one Radeon graphics card to PCIE1 slot. For the proper installation
procedures, please refer to section “Expansion Slots”.
Step 2. Install one Radeon graphics card to PCIE3 slot. For the proper installation
procedures, please refer to section “Expansion Slots”.
Step 3. Install one Radeon graphics card to PCIE4 slot. For the proper installation
procedures, please refer to section “Expansion Slots”.
Step 4. Use one CrossFire
TM
Bridge to connect Radeon graphics cards on PCIE1
and PCIE3 slots, and use the other CrossFire
TM
Bridge to connect Radeon
graphics cards on PCIE3 and PCIE4 slots. (CrossFire
TM
Bridge is provided
with the graphics card you purchase, not bundled with this motherboard.
Please refer to your graphics card vendor for details.)
