52

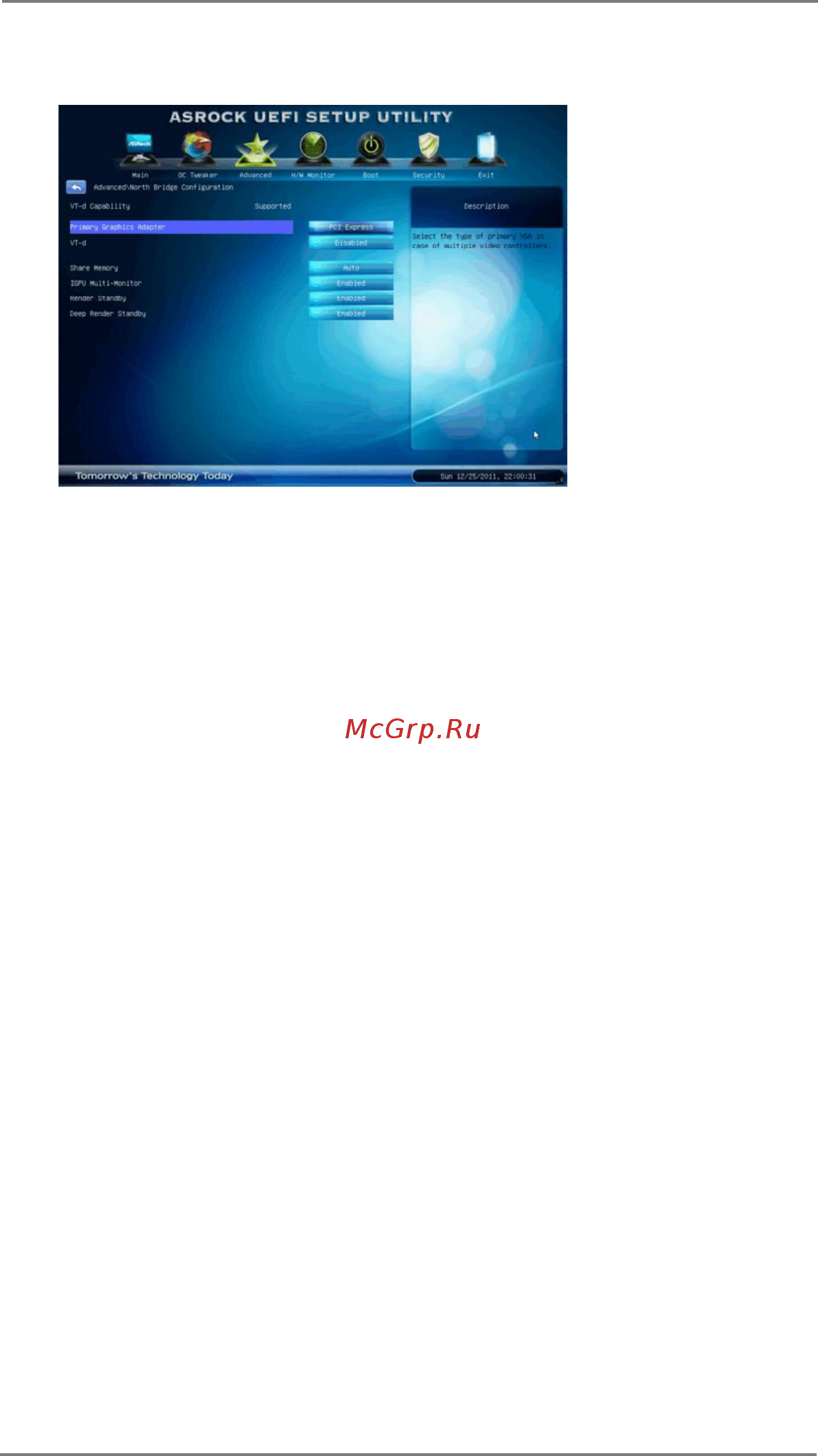

3.4.2 North Bridge Configuration
Primary Graphics Adapter
This allows you to select [Onboard], [PCI] or [PCI Express] as the boot
graphic adapter priority. The default value is [PCI Express].
VT-d
Use this to enable or disable Intel
®
VT-d technology (Intel
®
Virtualization
Technology for Directed I/O). The default value of this feature is [Disabled].
Share Memory
This allows you to set onboard VGA share memory feature. The default
value is [Auto].
IGPU Multi-Moniter
This allows you to enable or disable IGPU Multi-Moniter. The default value
is [Enabled]. If you install the PCI Express card under Windows
®
XP /
Vista
TM
OS, please disable this option.
Render Standby
Use this to enable or disable Render Standby by Internal Graphics Device.
The default value is [Enabled].
Deep Render Standby
Use this to enable or disable Deep Render Standby by Internal Graphics
Device. The default value is [Enabled].
