70
Installing OS on a HDD Larger Than 2TB in RAID Mode
This motherboard adopts UEFI BIOS that allows Windows
®
OS to be installed on a
large size HDD (>2TB). Please follow the procedures below to install the operating
system.
1. Please make sure to use Windows
®
Vista
TM
64-bit (with SP2 or above) or
Windows
®
7 64-bit (with SP1 or above).
2. Copy Intel
®
RAID drivers into a USB ash disk. You can download the driver from
ASRock's website and unzip the le into a USB ash disk OR copy the le from
ASRock motherboard support CD. (please copy the les under following directory:
32 bit: ..\i386\Win7_Vista_Intel_v11.0.0.1032
64-bit: ..\AMD64\Win7-64_Vista64_Intel_v11.0.0.1032
3. Create RAID array for you system. Please refer to "Intel RAID Installation Guide"
le for details.
4. Install Windows
®
Vista
TM
64-bit / 7 64-bit:
A. Insert your Windows
®
Vista
TM
64-bit / 7 64-bit installation disc to the optical
drive.
B. Press <F11> to launch boot menu at system POST and choose the item
“UEFI:xxx“ to boot.
C. Start Windows
®

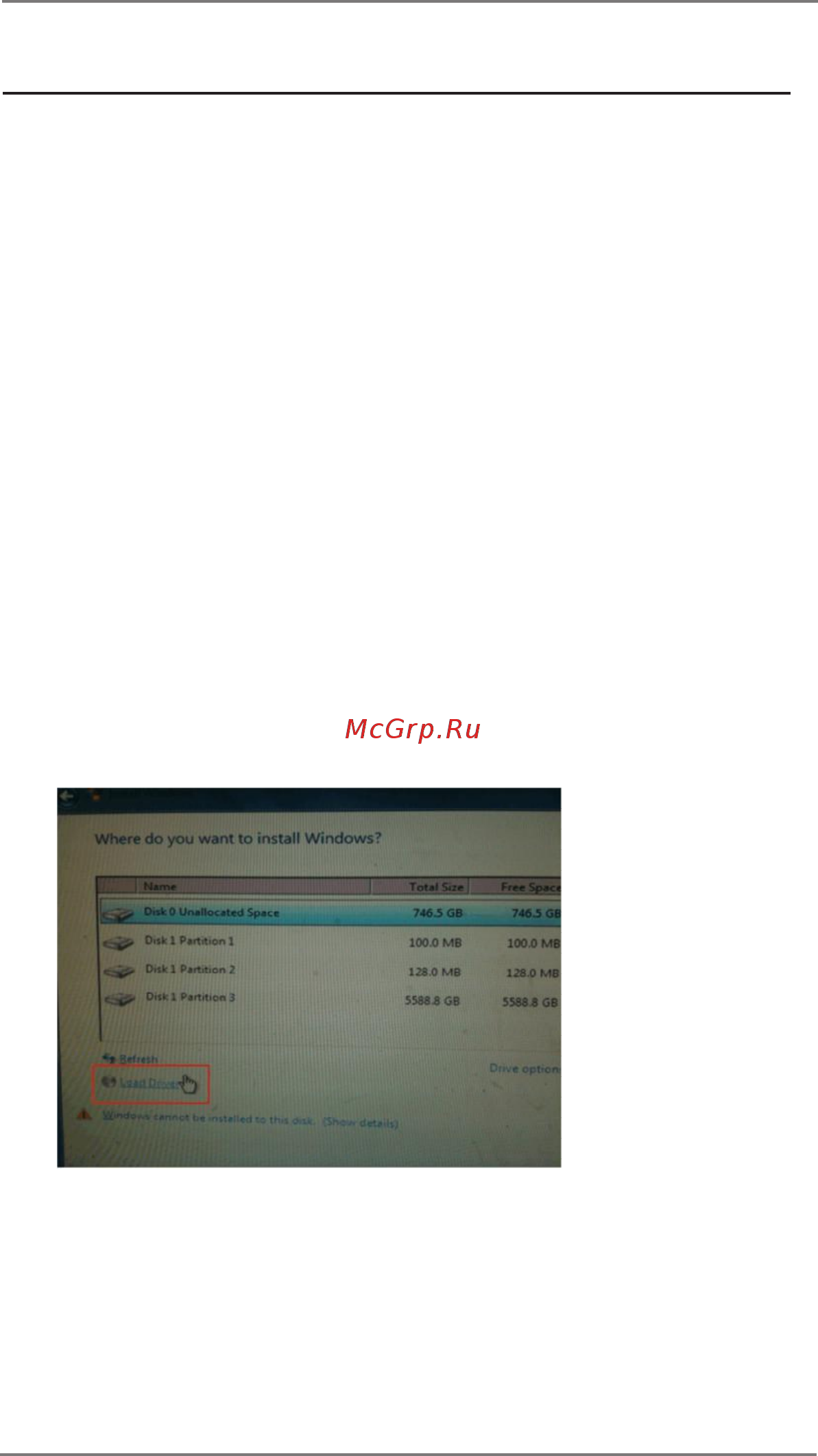

Installation. When you see “Where do you want to install
Windows?” page, please click “Load Driver”.
D. Plug the USB ash disk into your USB port; select “Browse” to nd the RAID
driver. Then choose the directory (xx\AMD64\) you have copied in the rst
step.
