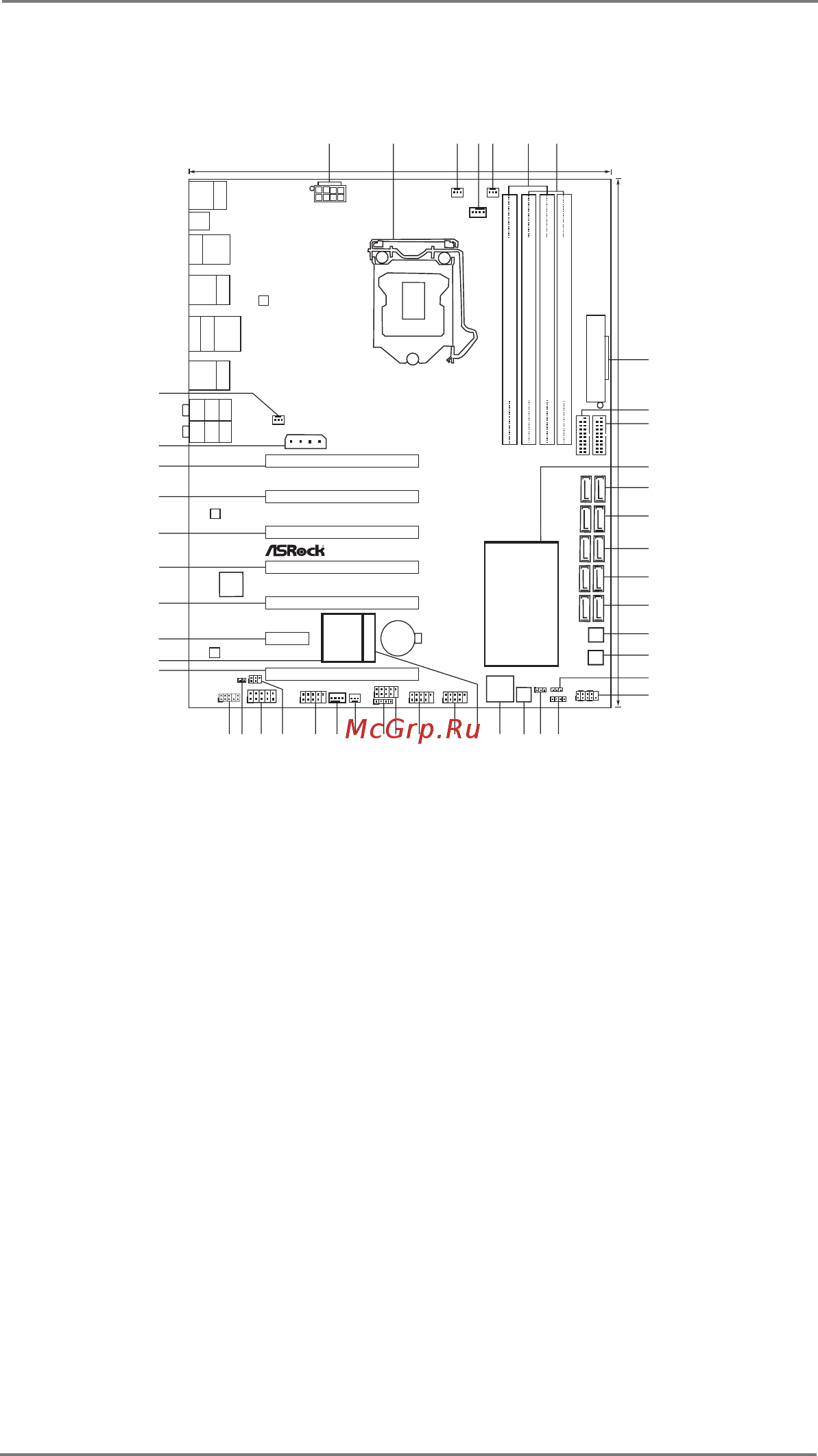

1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1)
2 1155-Pin CPU Socket
3 Power Fan Connector (PWR_FAN1)
4 CPU Fan Connector (CPU_FAN1)
5 CPU Fan Connector (CPU_FAN2)
6 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Black)
7 2 x 240-pin DDR3 DIMM Slots
(DDR3_A2, DDR3_B2, Black)
8 ATX Power Connector (ATXPWR1)
9 USB 3.0 Header (USB3_11_12, Black)
10 USB 3.0 Header (USB3_9_10, Black)
11 Intel Z77 Chipset
12 SATA3 Connectors (SATA3_A1_A2, Gray)
13 SATA3 Connectors (SATA3_A3_A4, Gray)
14 SATA3 Connectors (SATA3_0_1, Gray)
15 SATA2 Connectors (SATA2_2_3, Black)
16 SATA2 Connectors (SATA2_4_5, Black)
17 Reset Switch (RSTBTN)
18 Power Switch (PWRBTN)
19 Power LED Header (PLED1)
20 System Panel Header (PANEL1, Black)
21 Chassis Speaker Header (SPEAKER1, Black)
22 Clear CMOS Jumper (CLRCMOS1)
23 SPI Flash Memory (64Mb)
24 Dr. Debug
25 mini-PCI Express Slot (MINI_PCIE1)
26 USB 2.0 Header (USB2_3, Black)
27 USB 2.0 Header (USB4_5, Black)
28 USB 2.0 Header (USB6_7, Black)
29 Consumer Infrared Module Header
(CIR1, Gray)
30 Chassis Fan Connector (CHA_FAN2)
31 Chassis Fan Connector (CHA_FAN1)
32 Front Panel IEEE 1394 Header
(FRONT_1394, Black)
33 Infrared Module Header (IR1)
34 COM Port Header (COM1)
35 HDMI_SPDIF Header
(HDMI_SPDIF1, Black)
36 Front Panel Audio Header
(HD_AUDIO1, Black)
37 PCI Express 3.0 x16 Slot (PCIE7, Black)
38 WiFi + BT Module
39 PCI Express 2.0 x1 Slot (PCIE6, Black)
40 PCI Express 3.0 x16 Slot (PCIE5, Black)
41 PCI Express 2.0 x16 Slot (PCIE4, Black)
42 PCI Express 3.0 x16 Slot (PCIE3, Black)
43 PCI Express 3.0 x16 Slot (PCIE2, Black)
44 PCI Express 3.0 x16 Slot (PCIE1, Black)
45 SLI / XFIRE Power Connector
46 Chassis Fan Connector (CHA_FAN3)
Intel
Z77
24.4cm (9.6 in)
30.5cm (12.0 in)
ATX12V 1
DDR3 _A 1 (64 bit , 240-pin mod ule)
DDR3 _A 2 (64 bit , 240-pin mod ule)
DDR3 _B 1 (64 bit , 240-pin mod ule)
DDR3 _B 2 (64 bit , 240-pin mod ule)
ATXPW R1
Z77 Extreme9
Dr.
Debu g
CMOS
Batt er y
64M b
BIO S
X
Fast LAN
X
Fast RAM
X
Fast USB
USB3_ 9_10
USB3_ 11_12
Sup er
I/O
PCIE 1
PCIE 2
PCIE 3
PCIE 4
PCIE 5
PCIE 7
PCIE 6
LAN
PHY
LAN
PHY
ErP / EuP Read y
PCI Expr ess 3. 0
CPU_FA N2
CPU_FA N1
PWR_FA N1
PWRBT N
RSTBT N
CHA_FA N2
CHA_FA N1
USB4_ 5
1
USB2_ 3
1
USB6_ 7
1
CIR1
1
FRONT _1394
1
AUDIO
CODEC
HDLED R ESET
PLED PWRBTN
PANEL1
1
SPEAKE R1
1
PLED1
1
IR1
1
CLRCM OS1
1
1
HD_AU DIO1
COM1
1
1
HDMI_S PDIF1
RoHS
Fron t USB 3.0
DDR3 3000+ 2 oz Copper PCB
SATA2_ 4_5 SATA2_ 2_3 SATA3_ 0_1 SATA3 _A3 _A4 SATA 3_A 1_A2
CHA_FA N3
SLI/ XFIR E_PW R1
MIN I_ PC IE 1
WiF i+ BT
Mod ul e
4-Way SLI
PS2
Keyb oard /
Mous e
USB 3.0
T: US B 1
B: U SB2
Clr
CMO S
HDM I
USB 3. 0
T: US B3
B: USB 4
Top:
RJ-4 5
USB 3. 0
T: US B5
B: USB 6
Top:
RJ-4 5
USB 3. 0
T: US B7
B: USB 8
Top:
Cent ral/ Bas s
Cent er:
REAR SPK
Top:
LINE IN
Cent er:
FRON T
Bott om:
Opti cal
SPDI F
Bott om:
MIC IN
USB 2 .0
T: U SB0
B: US B1
ESATA_ 1
IEE E 1 394
1
2
3
4
5 6
7
11
12
13
14
16
8
9
10
15
17
18
19
20
21
22
23
24
25
26
2728
29
3031
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
