39
Caution
1. Without SATA 15-pin power connector interface, the SATA / SATA2 / SATA3 Hot
Plug cannot be processed.
2. Even some SATA / SATA2 / SATA3 HDDs provide both SATA 15-pin power
connector and IDE 1x4-pin conventional power connector interfaces, the IDE
1x4-pin conventional power connector interface is denitely not able to support
Hot Plug and will cause the HDD damage and data loss.
SATA 7-pin
connector
1x4-pin conventional
power connector (White)
connect to power supply
2.16 SATA / SATA2 / SATA3 HDD Hot Plug Feature and Operation Guide
This motherboard supports Hot Plug feature for SATA / SATA2 / SATA3 HDD in
RAID / AHCI mode. Please read below operation guide of Hot Plug feature carefully.
Before you process the SATA / SATA2 / SATA3 HDD Hot Plug, please check below
cable accessories from the motherboard gift box pack.

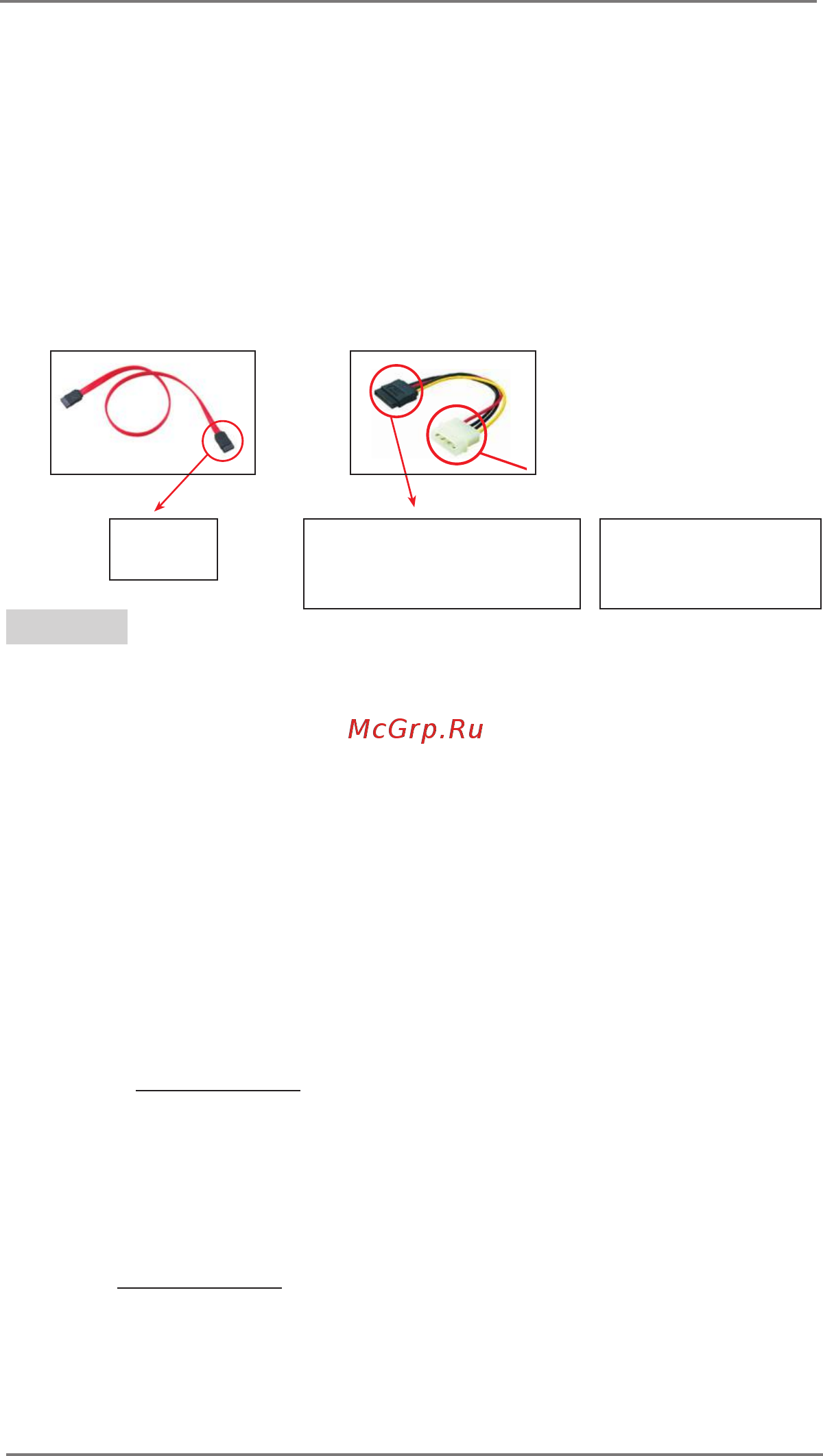

A. 7-pin SATA data cable
B. SATA power cable with SATA 15-pin power connector interface
The SATA 15-pin power
connector (Black) connect
to SATA / SATA2 / SATA3 HDD
Points of attention, before you process the Hot Plug:
1. Below operation procedure is designed only for our motherboard, which
supports SATA / SATA2 / SATA3 HDD Hot Plug.
* The SATA / SATA2 / SATA3 Hot Plug feature might not be supported by the
chipset because of its limitation, the SATA / SATA2 / SATA3 Hot Plug support
information of our motherboard is indicated in the product spec on our
website: www.asrock.com
2. Make sure your SATA / SATA2 / SATA3 HDD can support Hot Plug function from
your dealer or HDD user manual. The SATA / SATA2 / SATA3 HDD, which cannot
support Hot Plug function, will be damaged under the Hot Plug operation.
3. Please make sure the SATA / SATA2 / SATA3 driver is installed into system
properly. The latest SATA / SATA2 / SATA3 driver is available on our support
website: www.asrock.com
4. Make sure to use the SATA power cable & data cable, which are from our
motherboard package.
5. Please follow below instructions step by step to reduce the risk of HDD crash
or data loss.
A. SATA data cable (Red) B. SATA power cable
