12

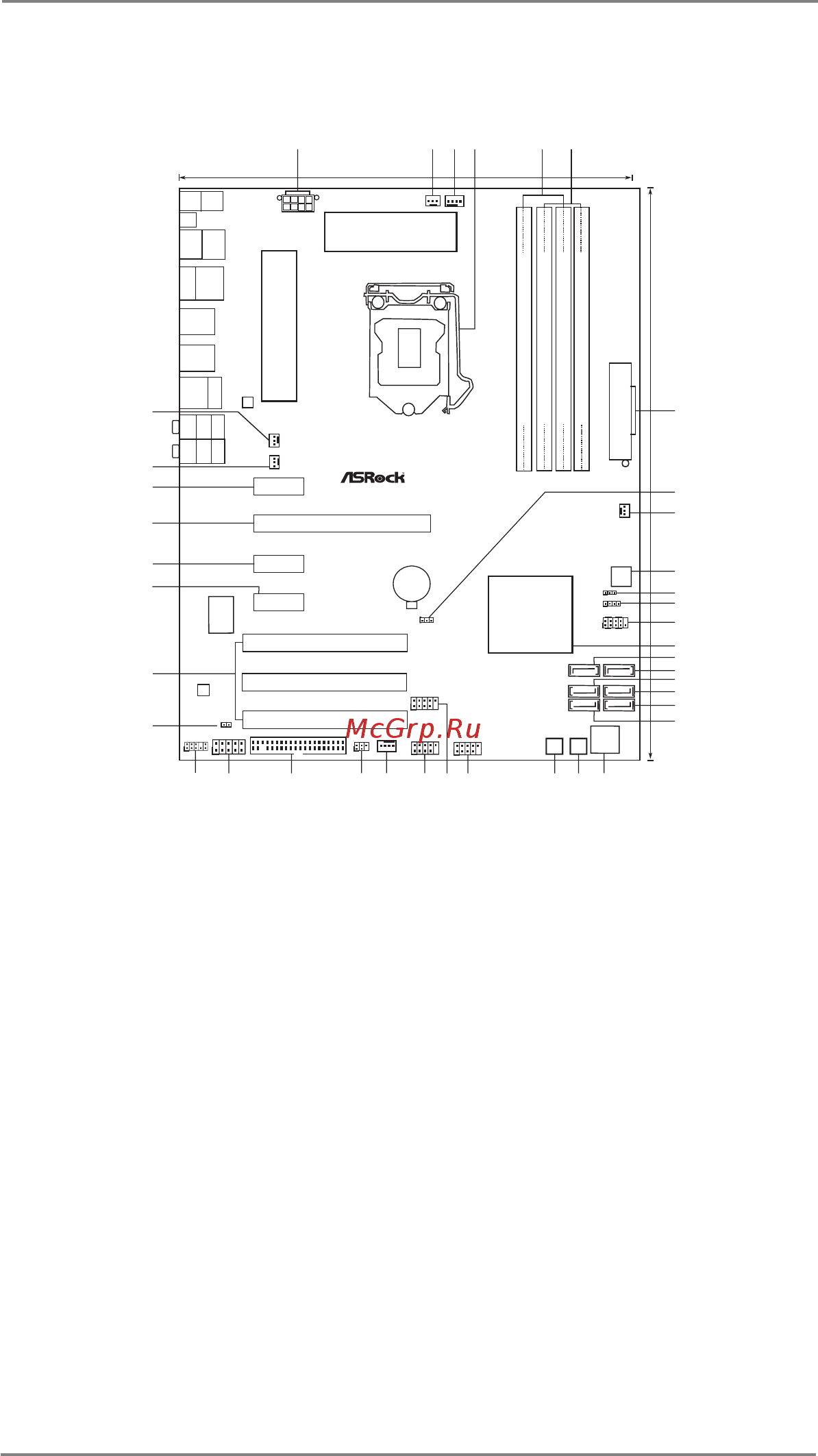

1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 21 Dr. Debug
2 CPU Fan Connector (CPU_FAN2) 22 Reset Switch (RSTBTN)
3 CPU Fan Connector (CPU_FAN1) 23 Power Switch (PWRBTN)
4 1155-Pin CPU Socket 24 USB 2.0 Header (USB12_13, Blue)
5 2 x 240-pin DDR3 DIMM Slots 25 USB 2.0 Header (USB8_9, Blue)
(Dual Channel: DDR3_A1, DDR3_B1, Blue) 26 USB 2.0 Header (USB10_11, Blue)
6 2 x 240-pin DDR3 DIMM Slots 27 Chassis Fan Connector (CHA_FAN1)
(Dual Channel: DDR3_A2, DDR3_B2, White) 28 Infrared Module Header (IR1)
7 ATX Power Connector (ATXPWR1) 29 Floppy Connector (FLOPPY1)
8 Clear CMOS Jumper (CLRCMOS1) 30 COM Port Header (COM1)
9 Chassis Fan Connector (CHA_FAN2) 31 Front Panel Audio Header
10 64Mb SPI Flash (HD_AUDIO1, White)
11 Power LED Header (PLED1) 32 HDMI_SPDIF Header
12 Chassis Speaker Header (SPEAKER 1, White) (HDMI_SPDIF1, White)
13 System Panel Header (PANEL1, White) 33 PCI Slots (PCI1-3)
14 Intel P67 Chipset 34 PCI Express 2.0 x1 Slot (PCIE4, White)
15 SATA3 Connector (SATA3_1, White) 35 PCI Express 2.0 x1 Slot (PCIE3, White)
16 SATA3 Connector (SATA3_0, White) 36 PCI Express 2.0 x16 Slot (PCIE2, Blue)
17 SATA2 Connector (SATA2_3, Blue) 37 PCI Express 2.0 x1 Slot (PCIE1, White)
18 SATA2 Connector (SATA2_2, Blue) 38 Chassis Fan Connector (CHA_FAN3)
19 SATA2 Connector (SATA2_4, Blue) 39 Power Fan Connector (PWR_FAN1)
20 SATA2 Connector (SATA2_5, Blue)
Intel
P67
24.4cm (9.6 in)
30.5cm (12.0 in)
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
ATXPWR1
CHA_FAN1
CLRCMOS1
1
ATX12V1
CHA_FAN2
CPU_FAN1
CPU_FAN2
P67 Pro3
64Mb
BIOS
PWRBTN RSTBTN
Dr.
Debug
Super
I/O
PCIE1
PCIE2
PCI1
CMOS
Battery
SATA2_5 SATA2_4
HDLED RESET
PLED PWRBTN
PANEL1
1
SPEAKER1
1
PLED1
1
USB12_13
1
USB10_11
1
USB8_9
1
1
HD_AUDIO1
FLOPPY1
COM1
1
IR1
1
1
HDMI_SPDIF1
LAN
PHY
AUDIO
CODEC
PS2
Mouse
Coaxial
SPDIF
PS2
Keyboard
Optical
SPDIF
Clr
CMOS
USB 2.0
T: U SB 4
B: USB5
Top:
RJ-45
USB 2.0
T:USB0
B: USB1
Top:
SIDE SPK
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
CTR BASS
Bottom:
MIC IN
USB 2.0
T: U SB 6
B: USB7
eSATA
PWR_FAN1
Dual Channel
PCI Express 2.0
ErP/EuP Ready
RoHS
USB 3.0
Designed in Taipei
SATA3 6Gb/s
1
2
3
4
5
6
7
11
12
13
14
16
8
9
10
15
17
18
24
19
20
21
22
23
25
262728
2930
31
32
33
34
35
36
37
38
39
PCIE3
PCIE4
PCI2
PCI3
SATA2_3 SATA2_2
SATA3_1 SATA3_0
CHA_FAN3
DDR3 2133
USB 3.0
T: U SB 2
B: USB3
