12

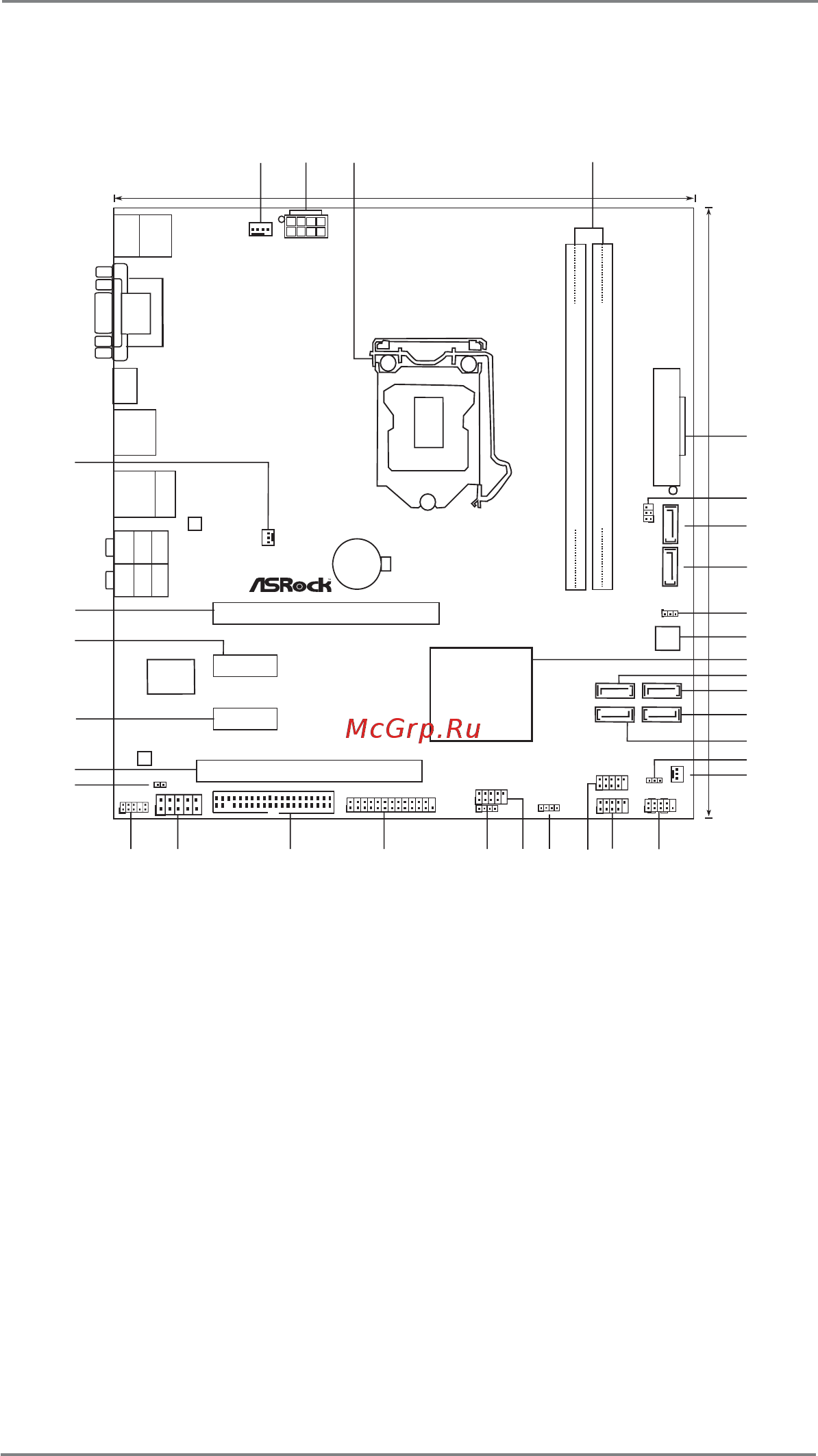

1.3 Motherboard Layout
1 CPU Fan Connector (CPU_FAN1) 19 USB 2.0 Header (USB8_9, Blue)
2 ATX 12V Power Connector (ATX12V1) 20 USB 2.0 Header (USB10_11, Blue)
3 1155-Pin CPU Socket 21 Chassis Speaker Header
4 2 x 240-pin DDR3 DIMM Slots (SPEAKER 1, White)
(Dual Channel: DDR3_A1, DDR3_B1, Blue) 22 USB 2.0 Header (USB6_7, Blue)
5 ATX Power Connector (ATXPWR1) 23 Consumer Infrared Module Header
6 Infrared Module Header (IR1) (CIR1)
7 SATA3 Connector (SATA3_0, White) 24 Print Port Header (LPT1, White)
8 SATA3 Connector (SATA3_1, White) 25 Floppy Connector (FLOPPY1)
9 Clear CMOS Jumper (CLRCMOS1) 26 COM Port Header (COM1)
10 64Mb SPI Flash 27 Front Panel Audio Header
11 Intel H67 Chipset (HD_AUDIO1, White)
12 SATA2 Connector (SATA2_3, Blue) 28 HDMI_SPDIF Header
13 SATA2 Connector (SATA2_2, Blue) (HDMI_SPDIF1, White)
14 SATA2 Connector (SATA2_4, Blue) 29 PCI Slot (PCI1)
15 SATA2 Connector (SATA2_5, Blue) 30 PCI Express 2.0 x1 Slot (PCIE3, White)
16 Power LED Header (PLED1) 31 PCI Express 2.0 x1 Slot (PCIE2, White)
17 Chassis Fan Connector (CHA_FAN1) 32 PCI Express 2.0 x16 Slot (PCIE1, Blue)
18 System Panel Header (PANEL1, White) 33 Power Fan Connector (PWR_FAN1)
Intel
H67
H67M
ATXPWR1
Designed in Taipei
21.8cm (8.6 in)
24.4cm (9.6 in)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
Dual Channel
PCIE1
PCIE2
PCIE3
PCI1
Top:
RJ-45
USB 2.0
T: USB4
B: USB5
USB 2.0
T: USB0
B: USB1
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
USB 3.0
T: U SB 2
B: USB3
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Super
I/O
CMOS
Battery
ATX12V1
DX10.1
DDR3
SATA3 6Gb/s
PWR_FAN1
CPU_FAN1
PCI Express 2.0
ErP/EuP Ready
HDMI 1.4a
LAN
PHY
1
HD_AUDIO1
1
HDMI_SPDIF1
AUDIO
CODEC
COM1
1
RoHS
USB8_9
1
IR1
1
USB10_11
1
USB6_7
1
CIR1
1
CLRCMOS1
1
64Mb
BIOS
1
PLED1
1
SATA2_5 SATA2_4
SATA3_1
SATA3_0
HDLED RESET
PLED PWRBTN
PANEL 1
1
SPEAKER1
CHA_FAN1
FLOPPY1
1
LPT1
Gigabit LAN
1
2
3
4
5
6
11
12
13
14
10
7
8
9
16
15
17
18
24
19
20
21
22
23
25
26
27
28
29
30
31
32
33
SATA2_3 SATA2_2
