2.4 Installation of CPU Fan and Heatsink

This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin

CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 1155-

Pin CPU to dissipate heat. Before you installed the heatsink, you need to spray

thermal interface material between the CPU and the heatsink to improve heat dis-

sipation. Ensure that the CPU and the heatsink are securely fastened and in good

contact with each other. Then connect the CPU fan to the CPU_FAN connector

(CPU_FAN1, see page 12, No. 1).

For proper installation, please kindly refer to the instruction manuals of your

CPU fan and heatsink.

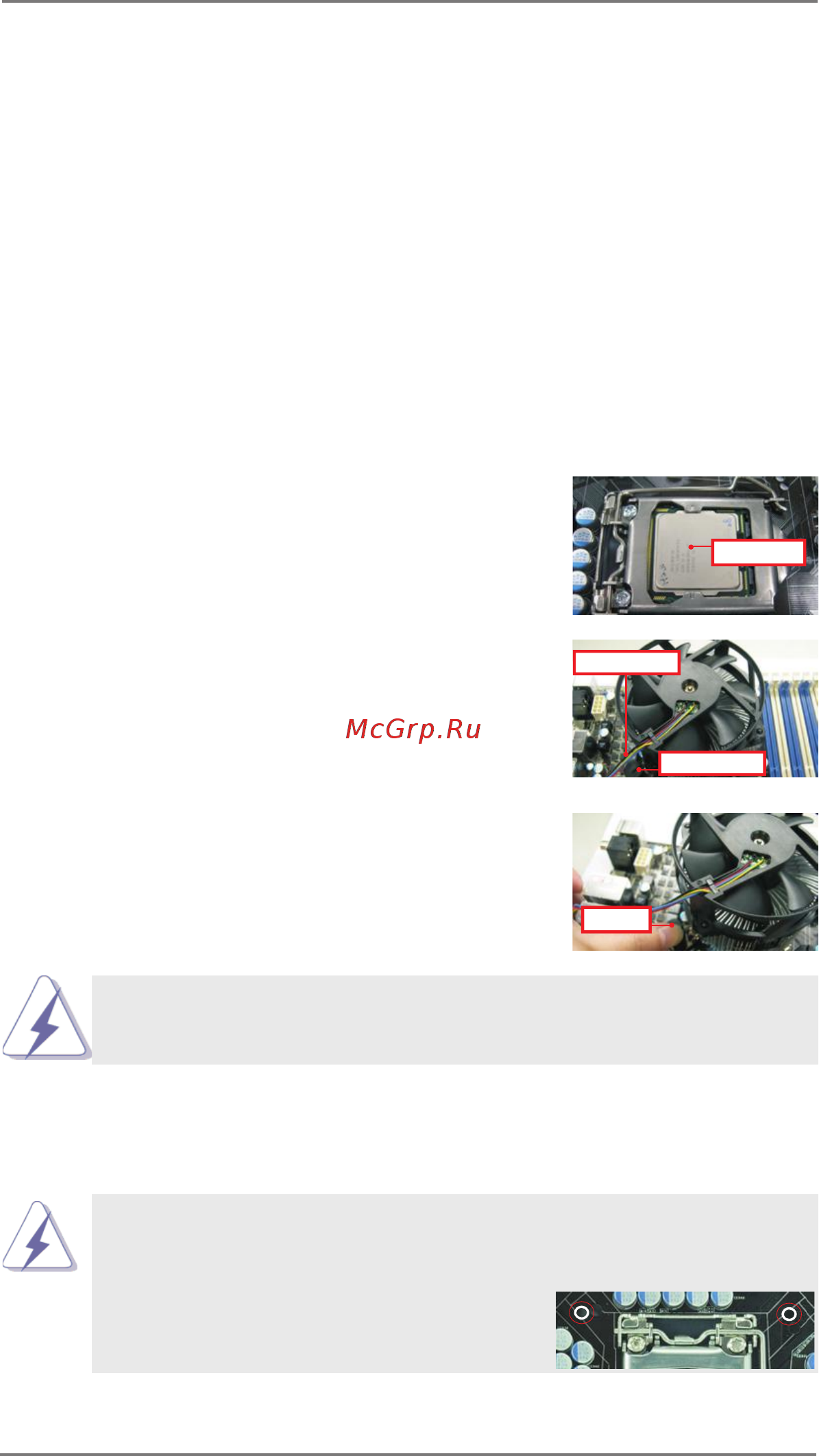

Below is an example to illustrate the installation of the heatsink for 1155-Pin CPU.

Step 1. Apply thermal interface material onto center of

IHS on the socket surface.

Step 2. Place the heatsink onto the socket. Ensure

fan cables are oriented on side closest to the

CPU fan connector on the motherboard (CPU_

FAN1, see page 12, No. 1).

Step 3. Align fasteners with the motherboard through-

holes.

Step 4. Rotate the fastener clockwise, then press

down on fastener caps with thumb to install

and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the

heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan connector on the motherboard.

Step 6. Secure excess cable with tie-wrap to ensure cable does not interfere with

fan operation or contact other components.

Appl y The rmal

Inte rface Ma teria l

Fan cab les on side

closest to MB header

Fastene r slots

pointin g straig ht ou t

Press Down

(4 Places)

Please be noticed that this motherboard supports Combo Cooler

Option (C.C.O.), which provides the exible option to adopt three dif-

ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156.

The white throughholes are for Socket LGA

1155/1156 CPU fan.
