14

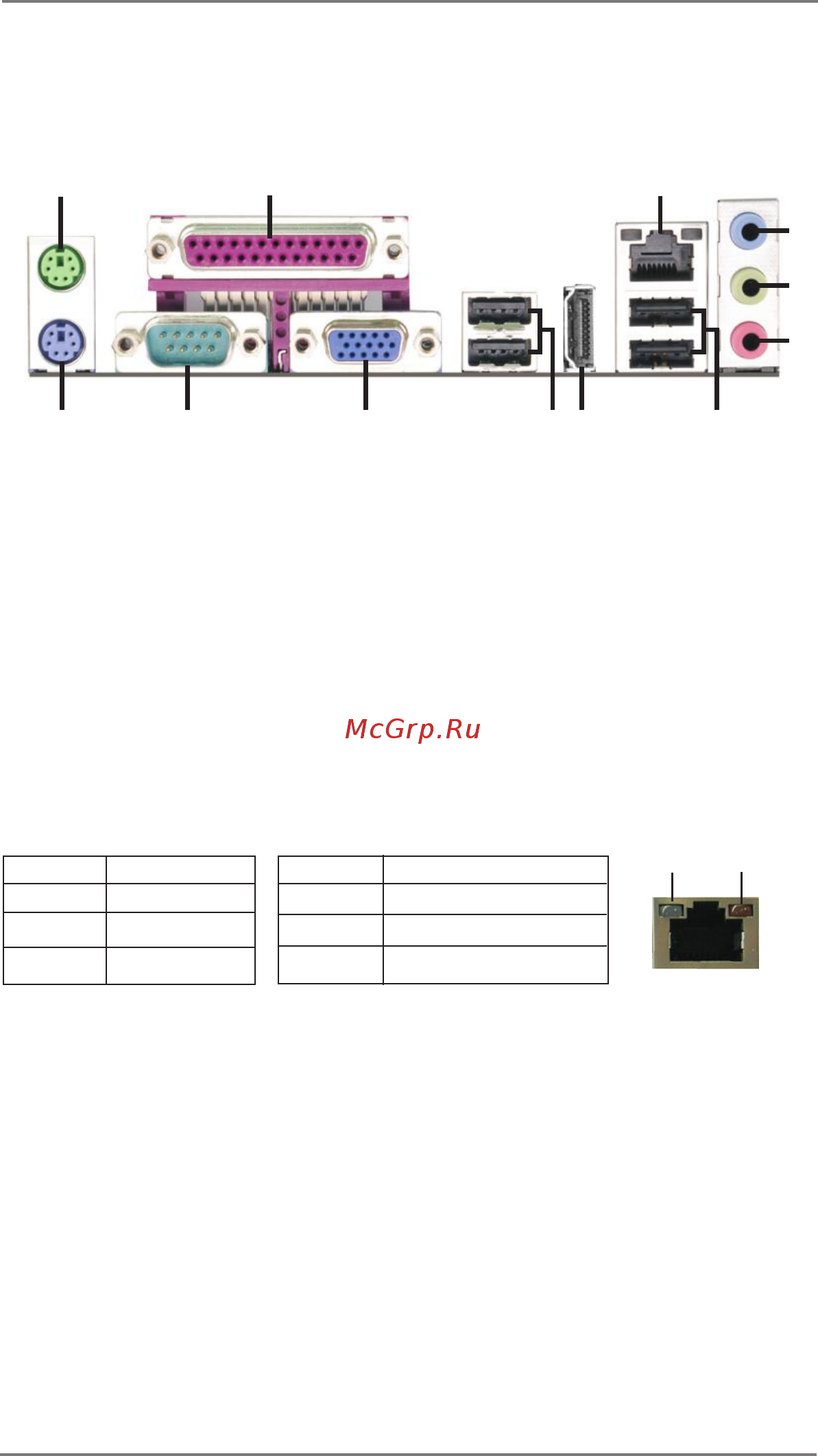

1.4 I/O Panel
1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23)
2 Parallel Port (LPT1) 8 HDMI Port (HDMI1)
3 LAN RJ-45 Port* 9 USB 2.0 Ports (USB01)
4 Line In (Light Blue) 10 D-Sub Port (VGA1)
5 Front Speaker (Lime) 11 Serial Port (COM1)
6 Microphone (Pink) 12 PS/2 Keyboard Port (Purple)
6
10
1
2
4
3
5
1112 9
7
8
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
