2
ASRock H61M-DGS Motherboard

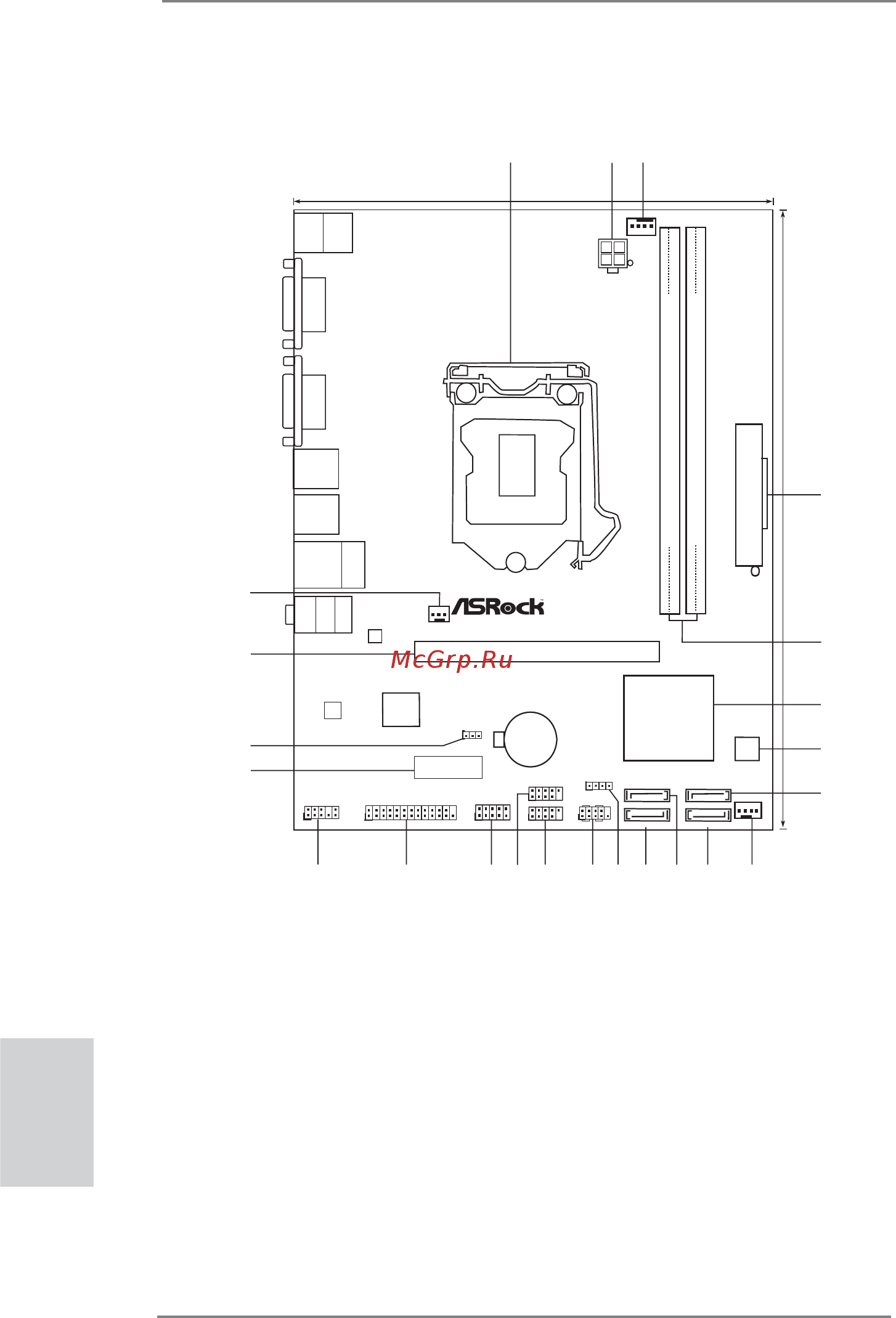

Motherboard Layout
English
1 1155-Pin CPU Socket 13 Chassis Speaker Header (SPEAKER 1, White)
2 ATX 12V Power Connector (ATX12V1) 14 System Panel Header (PANEL1, White)
3 CPU Fan Connector (CPU_FAN1) 15 USB 2.0 Header (USB6_7, Blue)
4 ATX Power Connector (ATXPWR1) 16 USB 2.0 Header (USB8_9, Blue)
5 2 x 240-pin DDR3 DIMM Slots 17 COM Port Header (COM1)
(Dual Channel: DDR3_A1, DDR3_B1, Blue) 18 Print Port Header (LPT1, White)
6 Intel H61 Chipset 19 Front Panel Audio Header
7 32Mb SPI Flash (HD_AUDIO1, White)
8 SATA2 Connector (SATA2_1, Blue) 20 PCI Express 2.0 x1 Slot (PCIE2, White)
9 Chassis Fan Connector (CHA_FAN1) 21 Clear CMOS Jumper (CLRCMOS1)
10 SATA2 Connector (SATA2_0, Blue) 22 PCI Express 2.0 x16 Slot (PCIE1, Blue)
11 SATA2 Connector (SATA2_3, Blue) 23 Power Fan Connector (PWR_FAN1)
12 SATA2 Connector (SATA2_2, Blue)
ATXPWR1
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
CPU_FAN1
Intel
H61
CMOS
Battery
17.3cm (6.8 in)
22.6cm (8.9 in)
ErP/EuP Ready DDR3
Designed in Taipei
32Mb
BIOS
Super
I/O
CHA_FAN1
PWR_FAN1
1
SPEAKER1
PCIE1
PCIE2
1
HD_AUDIO1
COM1
1
1
LPT1
CLRCMOS1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
LAN
PHY
AUDIO
CODEC
USB6_7
1
USB8_9
1
SATA2_2
SATA2_0
SATA2_3
SATA2_1
ATX 12 V1
PS2
Keyboard
PS2
Mouse
VGA1
Top:
RJ-45
USB 2.0
T: USB4
B: USB5
USB 2.0
T:USB0
B: USB1
Top :
LINE IN
Center:
FRONT
Bottom:
MIC IN
USB 2.0
T:USB2
B: USB3
1
2
3
4
5
6
7
9
10
11
12
8
14
13
15
16
17
18
19
20
21
22
23
RoHS
H61M-DGS
DVI1
X
Fast USB
X
Fast LAN
X
Fast RAM
