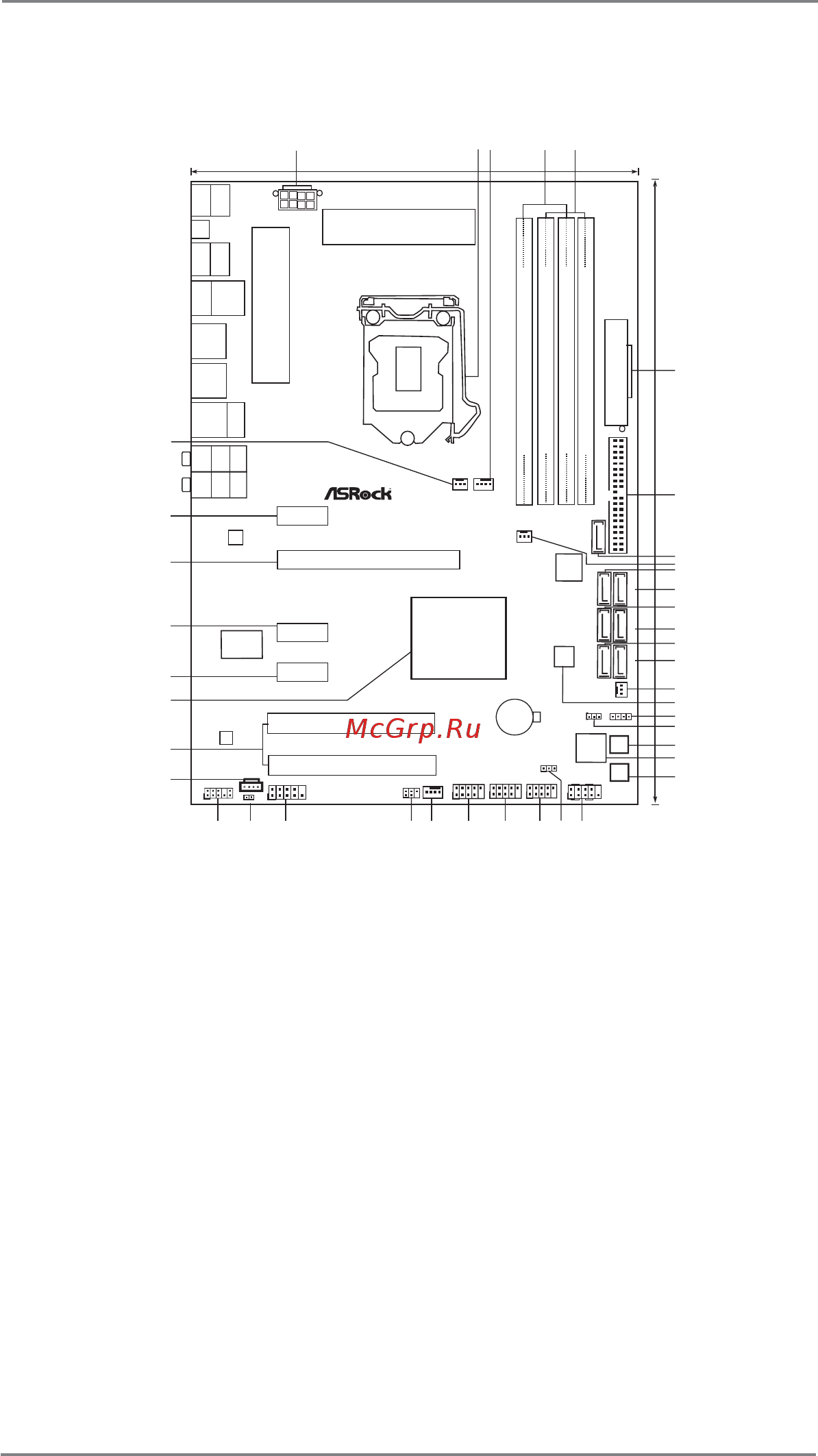

1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 21 Dr. Debug
2 1156-Pin CPU Socket 22 Power Switch (PWRBTN)
3 CPU Fan Connector (CPU_FAN1) 23 System Panel Header (PANEL1, White)
4 2 x 240-pin DDR3 DIMM Slots 24 Power LED Header (PLED1)
(Dual Channel: DDR3_A2, DDR3_B2, Blue) 25 USB 2.0 Header (USB12_13, Blue)
5 2 x 240-pin DDR3 DIMM Slots 26 USB 2.0 Header (USB10_11, Blue)
(Dual Channel: DDR3_A1, DDR3_B1, White) 27 USB 2.0 Header (USB8_9, Blue)
6 ATX Power Connector (ATXPWR1) 28 Chassis Fan Connector (CHA_FAN1)
7 Primary IDE Connector (IDE1, Blue) 29 Infrared Module Header (IR1)
8 SATA2 Connector (SATAII_6, Blue) 30 COM Port Header (COM1)
9 Chassis Fan Connector (CHA_FAN3) 31 HDMI_SPDIF Header
10 SATA3 Connector (SATAIII_1, White) (HDMI_SPDIF1, White)
11 SATA3 Connector (SATAIII_0, White) 32 Front Panel Audio Header
12 SATA2 Connector (SATAII_3, Blue) (HD_AUDIO1, White)
13 SATA2 Connector (SATAII_2, Blue) 33 Internal Audio Connector: CD1 (White)
14 SATA2 Connector (SATAII_5, Blue) 34 PCI Slots (PCI1-2)
15 SATA2 Connector (SATAII_4, Blue) 35 Intel P67 Chipset
16 Chassis Fan Connector (CHA_FAN2) 36 PCI Express 2.0 x1 Slot (PCIE4, White)
17 64Mb SPI Flash 37 PCI Express 2.0 x1 Slot (PCIE3, White)
18 Chassis Speaker Header (SPEAKER 1, White) 38 PCI Express 2.0 x16 Slot (PCIE2, Blue)
19 Clear CMOS Jumper (CLRCMOS1) 39 PCI Express 2.0 x1 Slot (PCIE1, White)
20 Reset Switch (RSTBTN) 40 Power Fan Connector (PWR_FAN1)
Intel
P67
30.5cm (12.0 in)
21.8cm (8.6 in)
CMOS
Battery
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXP WR1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB8_9
11
IDE1
SATAII_4_5
SATAII_2_3
SATAIII_0_1
64Mb
BIOS
P67 Transformer
ATX12V1
DDR3 2600+
PS2
Mouse
Coaxial
SPDIF
PS2
Keyboard
Optical
SPDIF
Clr
CMOS
USB 2.0
T:USB0
B: USB1
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
LAN
PHY
1
HD_AUDIO1
CHA_FAN3
CHA_FAN1
PWRBTN
RSTBTN
Dr.
Debug
AUDIO
CODEC
CD1
Super
I/O
IR1
1
COM1
1
1
HDMI_SPDIF1
USB 3.0
RoHS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
24
25
23
18
19
20
21
22
26
27
28
29
30
31
32
33
34
35
36
37
38
USB10_11
11
USB12_13
1
CHA_FAN2
PWR_FAN1
CPU_FAN1
PCIE1
Dual Channel
PCI Express 2.0 SATA3 6Gb/s
USB 2.0
T:USB4
B: USB5
Top:
RJ-45
PCIE2
PCIE3
PCI1
PCI2
JMicron
JMB363
ErP/EuP Ready
USB 2.0
T:USB6
B: USB7
eSATAII_1
SATAII_6
SPEAKER1
1
PLED1
1
Designed in Taipei
39
40
USB 3.0
T:USB2
B: USB3
PCIE4
CLRCMOS1
1
