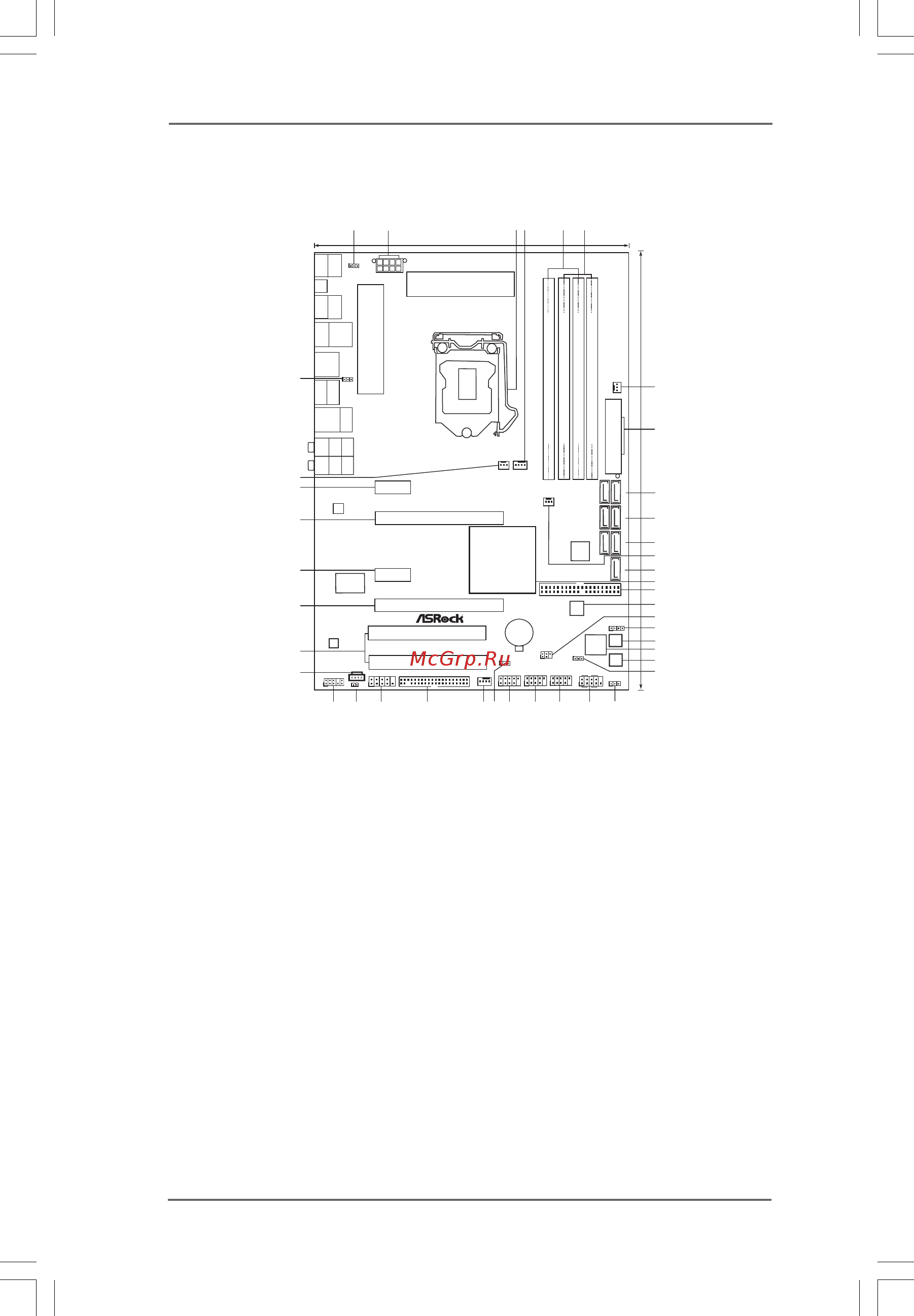

1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout
Intel
P55
30.5cm (12.0 in)
21.8cm (8.6 in)
CMOS
Battery
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXPWR1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB8_9
11
IDE1
SATAII_5_6
SATAII_3_4
SATAII_1_2
16Mb
BIOS
P55 Pro/USB3
ATX12V1
PS2_USB_PWR1
1
DDR3 2600+
PS2
Mouse
Coaxial
SPDIF
PS2
Keyboard
Optical
SPDIF
Clr
CMOS
USB 2.0
T:USB0
B: USB1
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
LAN
PHY
1
HD_AUDIO1
CHA_FAN3
CHA_FAN1
PWRBTN
RSTBTN
Dr.
Debug
AUDIO
CODEC
CD1
Super
I/O
CLRCMOS1
1
IR1
1
COM1
1
FLOPPY1
1
HDMI_SPDIF1
USB 3.0
RoHS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
24
25
23
18
19
20
21
22
26
2728
29
3031
32
33
34
35
36
37
38
USB10_11
11
USB12_13
1
CHA_FAN2
PWR_FAN1
CPU_FAN1
PCIE1
Dual Channel
PCI Express 2.0
USB 2.0
T:USB4
B: USB5
Top:
RJ-45
PCIE2
PCIE3
PCIE4
PCI1
PCI2
JMicron
JMB363
ErP/EuP Ready
USB 2.0
T:USB6
B: USB7
eSATAII_1
USB 2.0:
USB2
USB 3.0:
USB3
USB_PWR2
1
SATAII_7
USB_PWR3
1
SPEAKER1
1
PLED1
1
Designed in Taipei
39
40
41
1 PS2_USB_PWR1 Jumper 22 USB_PWR3 Jumper
2 ATX 12V Power Connector (ATX12V1) 23 Power LED Header (PLED1)
3 1156-Pin CPU Socket 24 System Panel Header (PANEL1, White)
4 CPU Fan Connector (CPU_FAN1) 25 USB 2.0 Header (USB12_13, Blue)
5 2 x 240-pin DDR3 DIMM Slots 26 USB 2.0 Header (USB10_11, Blue)
(Dual Channel: DDR3_A2, DDR3_B2, Blue) 27 USB 2.0 Header (USB8_9, Blue)
6 2 x 240-pin DDR3 DIMM Slots 28 Clear CMOS Jumper (CLRCMOS1)
(Dual Channel: DDR3_A1, DDR3_B1, White) 29 Chassis Fan Connector (CHA_FAN1)
7 Chassis Fan Connector (CHA_FAN2) 30 Floppy Connector (FLOPPY1)
8 ATX Power Connector (ATXPWR1) 31 COM Port Header (COM1)
9 SATAII Connector (SATAII_1_2, Blue) 32 HDMI_SPDIF Header
10 SATAII Connector (SATAII_3_4, Blue) (HDMI_SPDIF1, White)
11 SATAII Connector (SATAII_5_6, Blue) 33 Front Panel Audio Header
12 Chassis Fan Connector (CHA_FAN3) (HD_AUDIO1, White)
13 SATAII Connector (SATAII_7, Blue) 34 Internal Audio Connector: CD1 (Black)
14 Intel P55 Chipset 35 PCI Slots (PCI1-2)
15 Primary IDE Connector (IDE1, Blue) 36 PCI Express 2.0 x16 Slot (PCIE4, White)
16 16Mb SPI Flash 37 PCI Express 2.0 x1 Slot (PCIE3, White)
17 Infrared Module Header (IR1) 38 PCI Express 2.0 x16 Slot (PCIE2, Blue)
18 Chassis Speaker Header (SPEAKER 1, White) 39 PCI Express 2.0 x1 Slot (PCIE1, White)
19 Reset Switch (RSTBTN) 40 Power Fan Connector (PWR_FAN1)
20 Dr. Debug 41 USB_PWR2 Jumper
21 Power Switch (PWRBTN)
