ASRock P55 Pro/USB3 Motherboard

EnglishEnglish

English

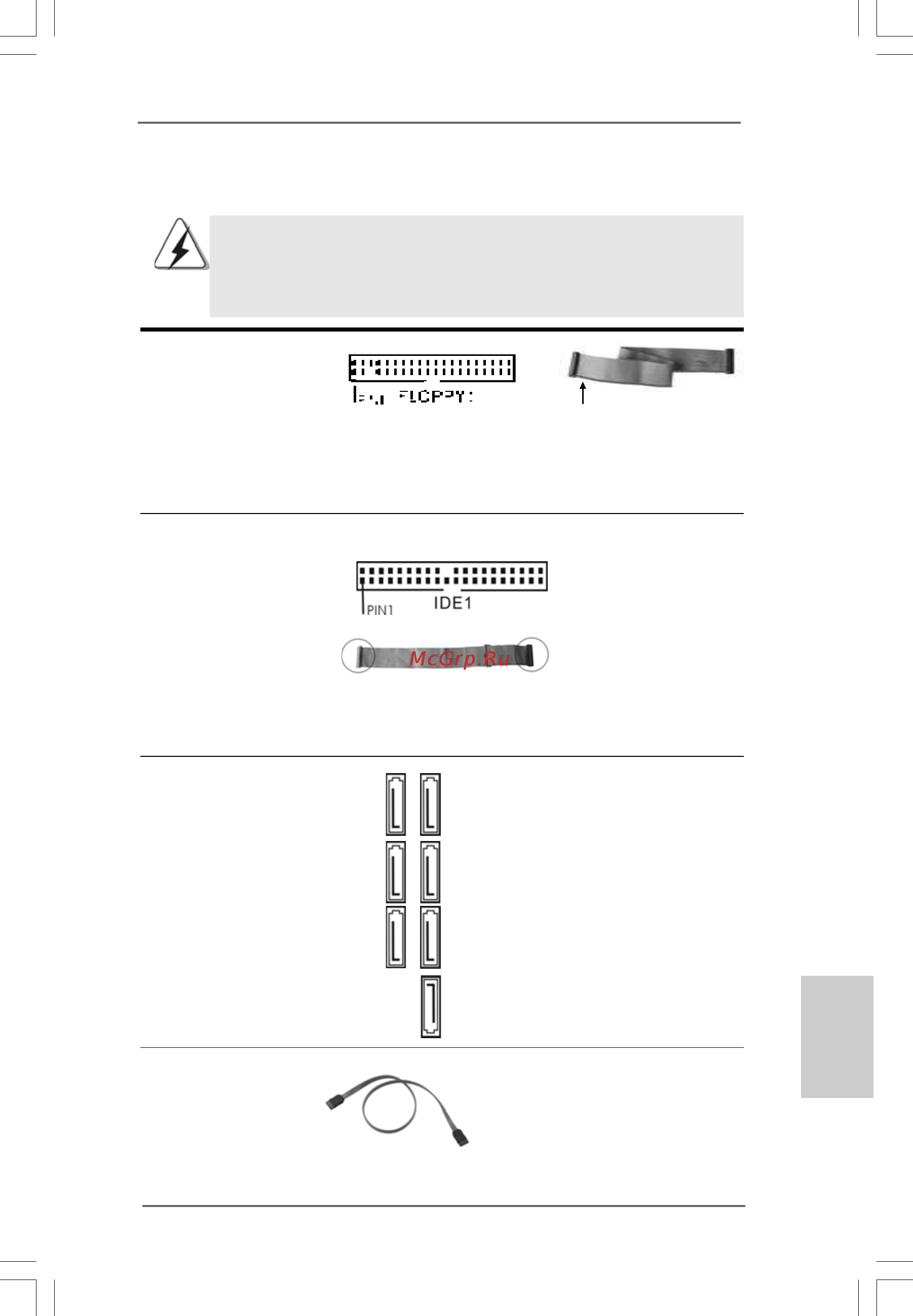

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

FDD connector

(33-pin FLOPPY1)

(see p.2 No. 30)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.2 No. 15)

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATAII Connectors These seven Serial ATAII

(SATAII_1_2: see p.2, No. 9) (SATAII) connectors support

(SATAII_3_4: see p.2, No. 10) SATA data cables for internal

(SATAII_5_6: see p.2, No. 11) storage devices. The current

(SATAII_7: see p.2, No. 13) SATAII interface allows up to

3.0 Gb/s data transfer rate.

connect the black end

to the IDE devices

connect the blue end

to the motherboard

80-conductor ATA 66/100/133 cable

the red-striped side to Pin1

SATAII_2SATAII_4SATAII_6

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on this motherboard.

SATAII_7

SATAII_1SATAII_3

SATAII_5
