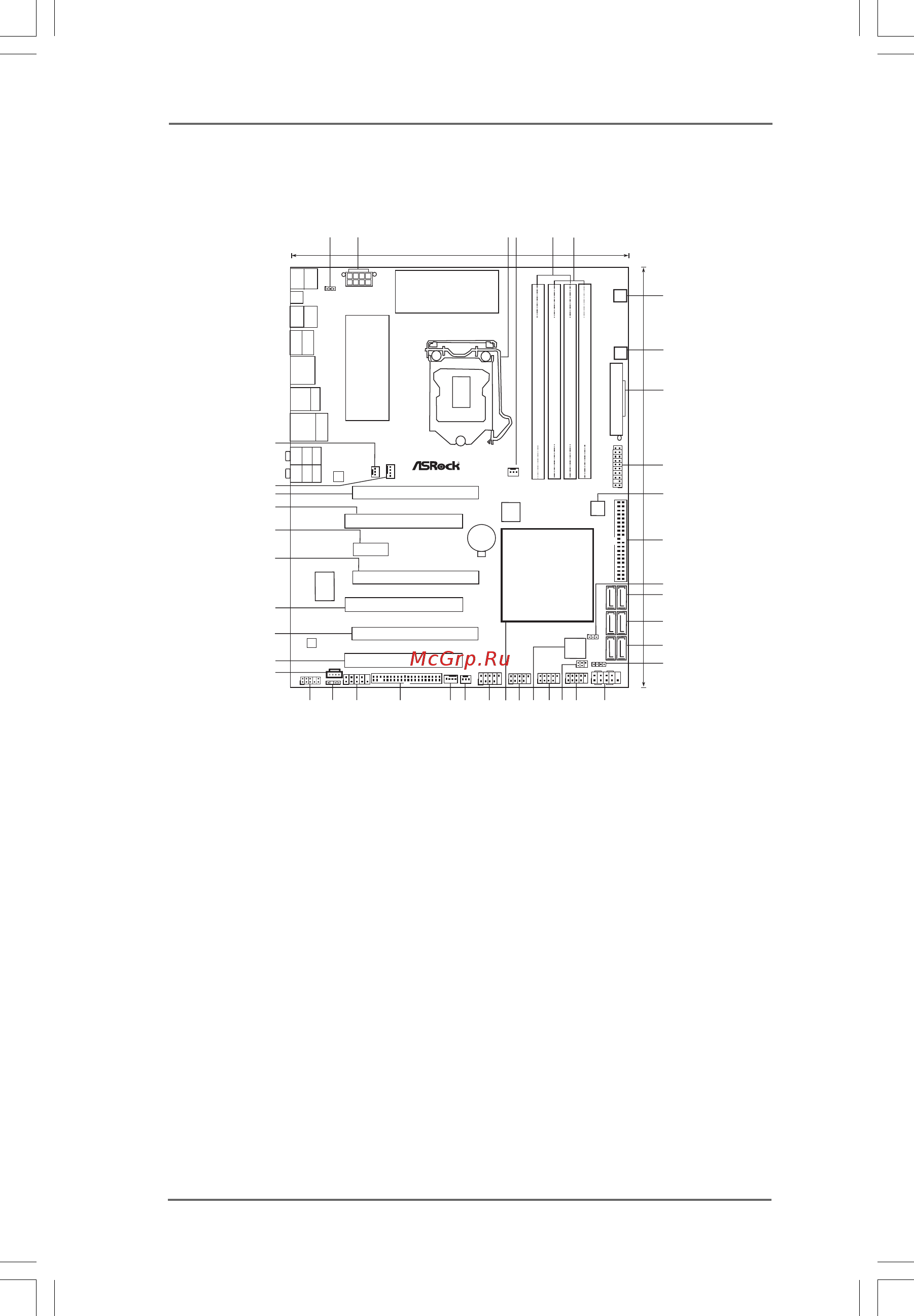

1.6 Motherboard Layout1.6 Motherboard Layout
1.6 Motherboard Layout1.6 Motherboard Layout
1.6 Motherboard Layout
Intel
P55
30.5cm (12.0 in)
24.4cm (9.6 in)
CMOS
Battery
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXPWR1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB8_9
11
FRONT_1394
11
IDE1
VIA
VT6330
SATAII_5_6
SATAII_3_4
SATAII_1_2
16Mb
BIOS
P55 Extreme
ATX12V1
PS2_USB_PWR1
1
DDR3 2600+
PS2
Mouse
Coaxial
SPDIF
PS2
Keyboard
Optical
SPDIF
Clr
CMOS
USB 2.0
T:USB2
B: USB3
Top:
IEEE
1394
USB 2.0
T:USB0
B: USB1
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
eSATAII/USB7
USB6
LAN
PHY
1
HD_AUDIO1
CHA_FAN3
CHA_FAN1
PWRBTN
RSTBTN
Dr.
Debug
AUDIO
CODEC
CD1
Super
I/O
SPEAKER1
1
CLRCMOS1
1
IR1
1
COM1
1
FLOPPY1
1
HDMI_SPDIF1
TPM1
11
PCIE1
PCI1
CrossFireX
RoHS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
24
25
23
1819
20
2122
26
27
282930
31
32
33
34
35
36
37
38
39
40
41
USB10_11
11
USB12_13
11
CHA_FAN2
PWR_FAN1
CPU_FAN1
PCIE3
PCIE2
PCIE4
PCI2
PCI3
Dual Channel
1394a
PCI Express 2.0
USB 2.0
T:USB4
B: USB5
Top:
RJ-45
EuP Ready
1 PS2_USB_PWR1 Jumper 22 Dr. Debug (LED)
2 ATX 12V Power Connector (ATX12V1) 23 USB 2.0 Header (USB8_9, Blue)
3 1156-Pin CPU Socket 24 Intel P55 Chipset
4 Chassis Fan Connector (CHA_FAN3) 25 Front Panel IEEE 1394 Header
5 2 x 240-pin DDR3 DIMM Slots (FRONT_1394, Red)
(Dual Channel: DDR3_A2, DDR3_B2, Blue) 26 Chassis Fan Connector (CHA_FAN2)
6 2 x 240-pin DDR3 DIMM Slots 27 Chassis Fan Connector (CHA_FAN1)
(Dual Channel: DDR3_A1, DDR3_B1, White) 28 Floppy Connector (FLOPPY1)
7 Reset Switch (RSTBTN) 29 COM Port Header (COM1)
8 Power Switch (PWRBTN) 30 HDMI_SPDIF Header
9 ATX Power Connector (ATXPWR1) (HDMI_SPDIF1, Yellow)
10 TPM Header (TPM1) 31 Front Panel Audio Header
11 16Mb SPI Flash (HD_AUDIO1, Lime)
12 Primary IDE Connector (IDE1, Blue) 32 Internal Audio Connector: CD1 (Black)
13 Clear CMOS Jumper (CLRCMOS1) 33 PCI Slots (PCI3)
14 SATAII Connector (SATAII_1_2, Red) 34 PCI Express 2.0 x16 Slot (PCIE4, Orange)
15 SATAII Connector (SATAII_3_4, Red) 35 PCI Slots (PCI2)
16 SATAII Connector (SATAII_5_6, Red) 36 PCI Express 2.0 x16 Slot (PCIE3, Orange)
17 Chassis Speaker Header (SPEAKER 1, Purple) 37 PCI Express 2.0 x1 Slot (PCIE2, White)
18 System Panel Header (PANEL1, Orange) 38 PCI Slots (PCI1)
19 USB 2.0 Header (USB12_13, Blue) 39 PCI Express 2.0 x16 Slot (PCIE1, Blue)
20 Infrared Module Header (IR1) 40 CPU Fan Connector (CPU_FAN1)
21 USB 2.0 Header (USB10_11, Blue) 41 Power Fan Connector (PWR_FAN1)
