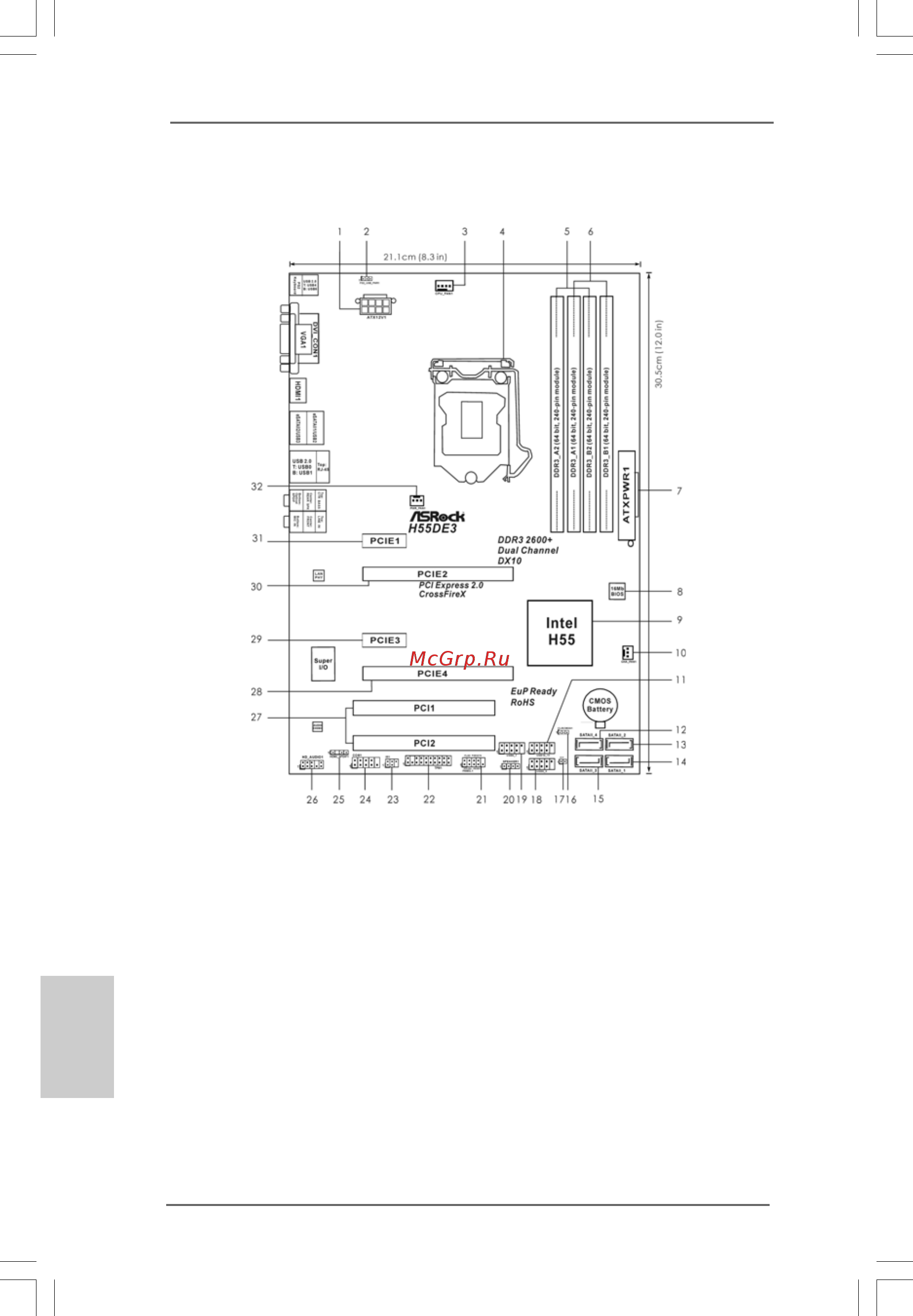

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1) 18 USB 2.0 Header (USB8_9, Blue)

2 PS2_USB_PWR1 Jumper 19 USB 2.0 Header (USB6_7, Blue)

3 CPU Fan Connector (CPU_FAN1) 20 Chassis Speaker Header

4 1156-Pin CPU Socket (SPEAKER 1, Purple)

5 2 x 240-pin DDR3 DIMM Slots 21 System Panel Header (PANEL1, Orange)

(Dual Channel: DDR3_A2, DDR3_B2, Blue) 22 TPM Header (TPM1)

6 2 x 240-pin DDR3 DIMM Slots 23 Infrared Module Header (IR1)

(Dual Channel: DDR3_A1, DDR3_B1, White) 24 COM Port Header (COM1)

7 ATX Power Connector (ATXPWR1) 25 HDMI_SPDIF Header

8 16Mb SPI Flash (HDMI_SPDIF1, Yellow)

9 Intel H55 Chipset 26 Front Panel Audio Header

10 Chassis Fan Connector (CHA_FAN1) (HD_AUDIO1, Lime)

11 USB 2.0 Header (USB10_11, Blue) 27 PCI Slots (PCI1-2)

12 Fourth SATAII Connector (SATAII_4, Red) 28 PCI Express 2.0 x16 Slot (PCIE4, White)

13 Secondary SATAII Connector (SATAII_2, Red) 29 PCI Express 2.0 x1 Slot (PCIE3, White)

14 Primary SATAII Connector (SATAII_1, Red) 30 PCI Express 2.0 x16 Slot (PCIE2, Blue)

15 Third SATAII Connector (SATAII_3, Red) 31 PCI Express 2.0 x1 Slot (PCIE1, White)

16 Clear CMOS Jumper (CLRCMOS1) 32 Power Fan Connector (PWR_FAN1)

17 Chassis Intrusion Header (CI1)
